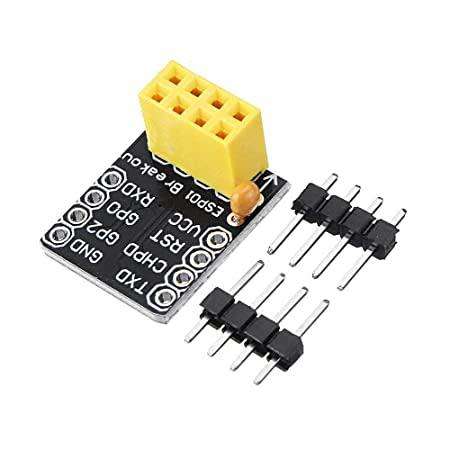

esp-01 Breadboard Adapter for the popular ESP-01 model of the ESP8266 serial-to-WiFi transceiver module.
As ESP-01 Pin arrangements are not breadboard friendly and are not labeled, which makes it little inconvenient for rapid prototyping. This breadboard adapter will help you to make
prototyping with esp-01 module much easier.
This breakout conveniently offers clear pinout silkscreen sprint on top and will nicely fit your preferred breadboard.
Last but not least, we added a 0.1µF decoupling capacitor so the ESP-01 will always run smoothly and without a hitch.
Connection:
URAT Adapter
3.3V VCC
3.3V CH-PD
TX RX
RX TX
Choose both NL CR 15200 baud rate
