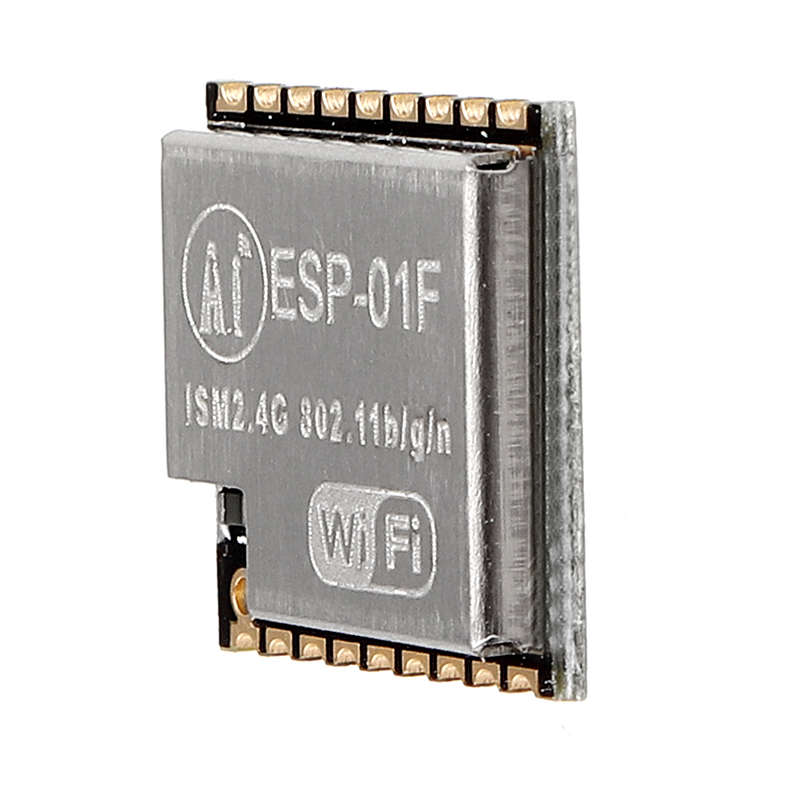

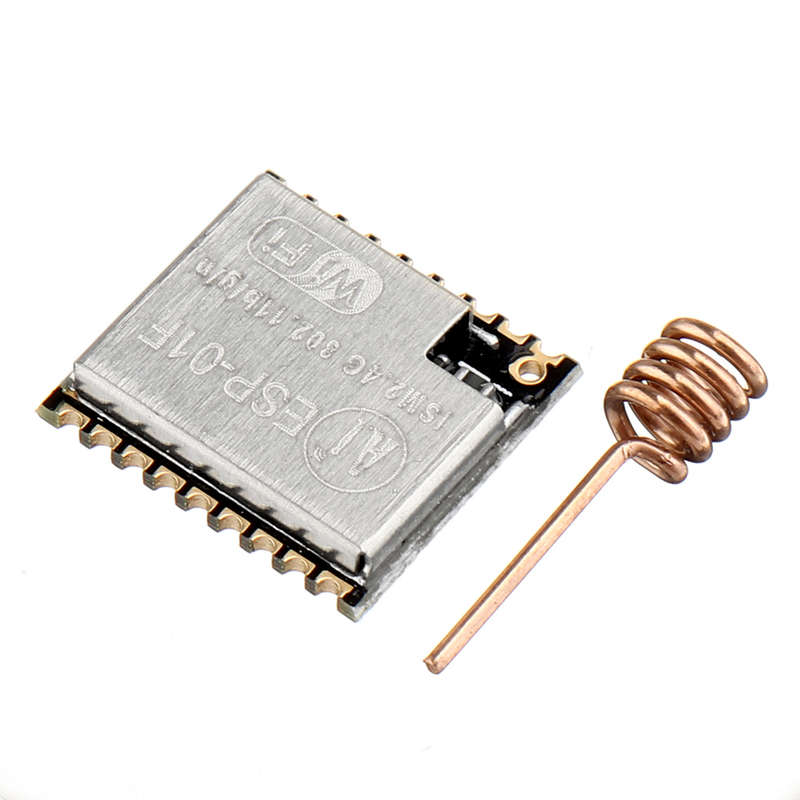

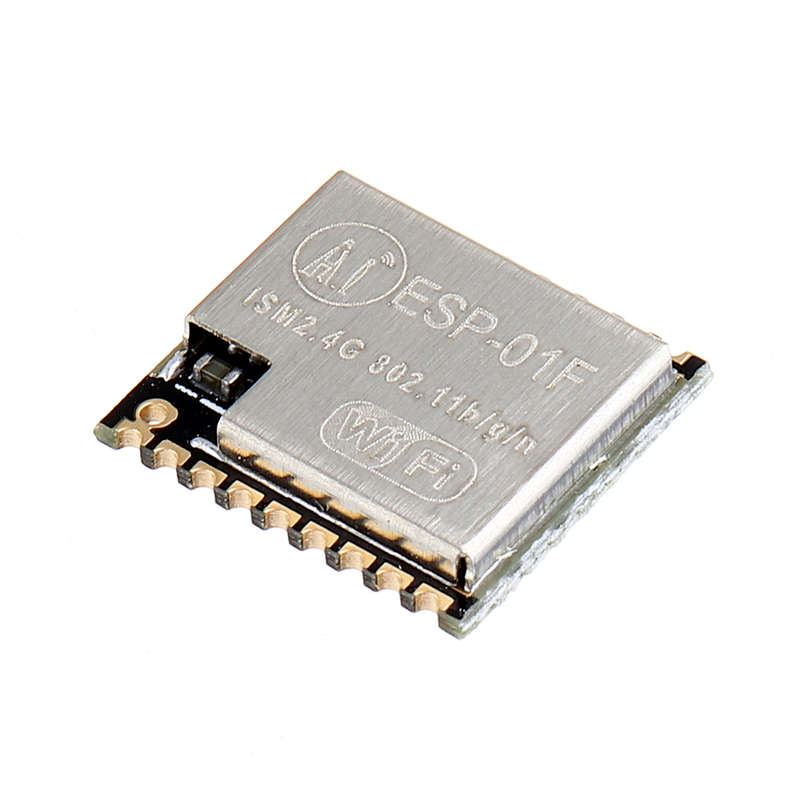

ESP-01F ESP8285 Serial Port WIFI Wireless Module 8Mbit with Antenna IOT for Smart Home

20 available / new

R399.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3532

93.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643379084

More document click to download:

Specifications:

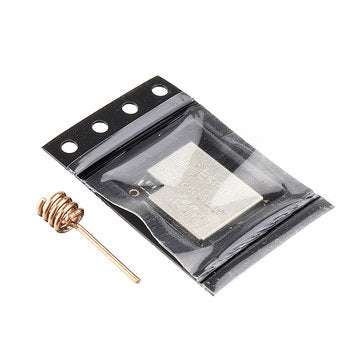

Package: SMD-18 SPI Flash: Built-in 8Mbit Support interface: UART/GPIO/ADC/PWM IO port: 9 Serial port rate: support 300-4608000bps, default 115200bps Spectrum range: 2412-2484MHz Power supply range: 3.0V- 3.6V Supply current: >300mA Working temperature: -20 ﾣ C ~ 85 ﾣ C Storage environment: -40 ﾣ C ~ 90 ﾣ C, <90% RH CCK, 1Mbps: -90dBm CCK, 11Mbps: -85dBm 6Mbps (2 BPSK): -88dBm 54Mbps (3/4 64-QAM): -70dBm HT20, MCS7 (65Mbps, 72.2Mbps): -67dBm Features: - Smallest 802.11b/g/n Wi-Fi SOC module - Low-power 32-bit CPU for dual application processor - Main frequency up to 160MHz - Built-in 10bit highpreciseADC - Supports interfaces such as UART/GPIO/ADC/PWM - SMD-18 package for easy soldering and testing - Support multiple sleep modes, deep sleep current resists 20uA - Embedded Lwip protocol stack - Support STA/AP/STA+AP working mode - ATordercan get started quickly - Support for serial local upgrade and remote firmware upgrade (FOTA) Package Included: 1 x ESP01F Wireless WIFI Module
