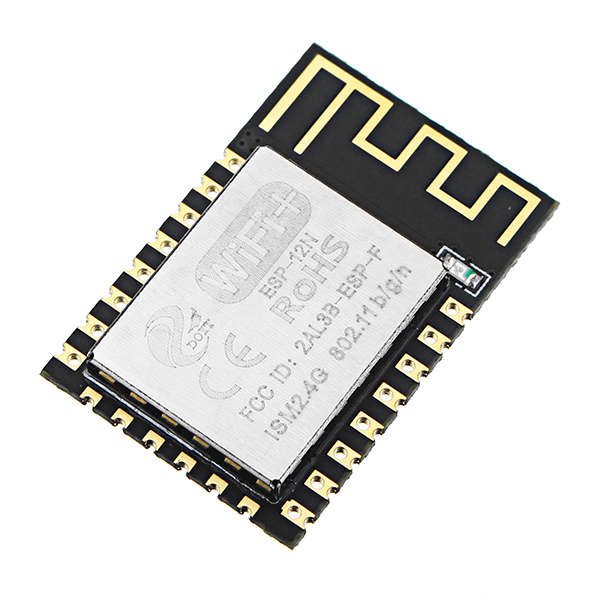

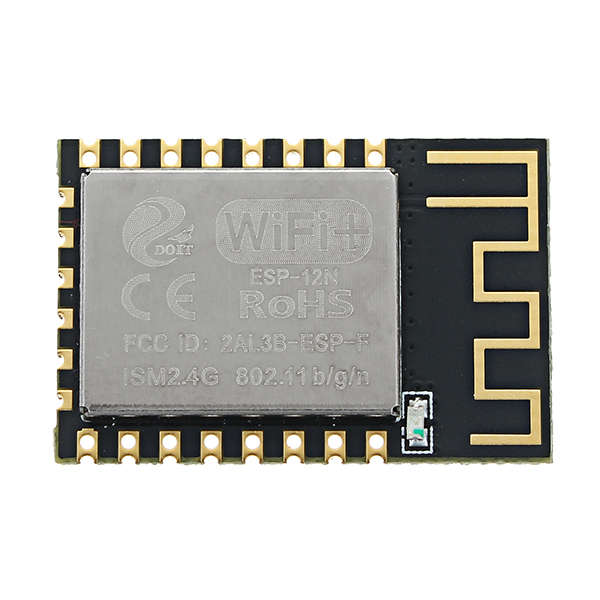

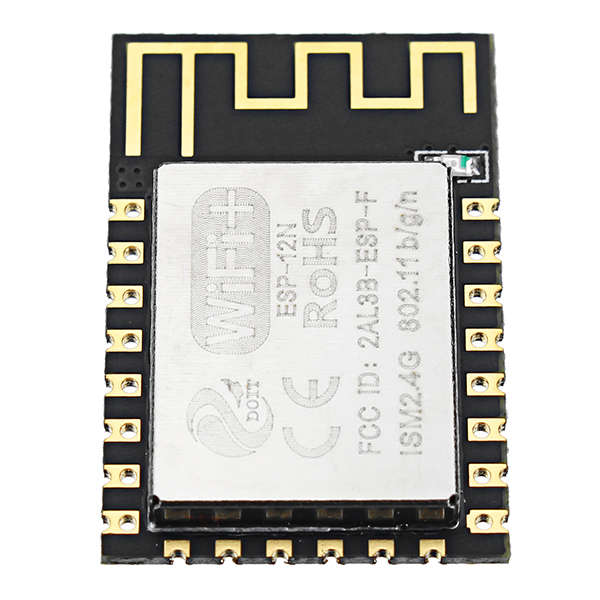

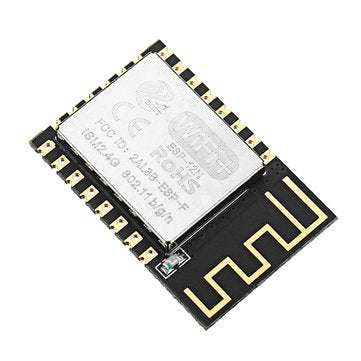

Product Description:
ESP-12N is encapsulated by the high performance chip ESP8266EX. The chip is encapsulated a advanced Tensilicaas L106 32-bit MCU, with 16-bit short mode, basic frequency support 80 MHz, 160 MHz, supports RTOS. ESP8266EX has the full and complete WiFi fuction, which can used independently and alsoused as a slaver with other Hoster MCU, which can start directly from the out-built Flash. In addition, the built-in high-speed buffer is helpfulfor the system performance. Especially, ESP8266EX can be used as a WiFi adapter by SPI/SDIO and/or I2C/UART interface, when it is applied to the other MCU design.
SOC characteristics:
Built-in Tensilica L106 ultra-low power 32-bit CPU, main frequency supports 80MHz and160MHz, and RTOS;
Built-in TCP/IP protocol;
Built-in one-channel 10-bit high precision ADC;
Outboard interface: HSPI, UART, I2C, I2S, IR Remote Controk, PWM, GPIO;
Deep sleep current is 10uA, the cut-off current is smaller than 5uA;
Wake,connect and transmission data package within 2ms;
The consume power is smaller 1.0Mw (DTIM3) when at stand by status;
Built in 1M byte for SPI Flash.
WiFi characteristics:
Support 802.11 b/g/n/e/I;
Support Station, Soft AP, Soft AP+STA mode;
Support WiFi Direct (P2P);
Support CCMP (CBC-MAC, computation mode), TKIP (MIC, RC4), WAPI (SMS4), WEP (RC4), CRC etc., for hardware acceleration.
P2P finding, P2P GO mode/ GC mode and P2P power manage
WPA/PA2PSK and WPS;
802.11 security certification: pre-certification and TSN
Support 802.11n (2.4GHz);
802.1h/RFC1042 frame encapsulation;
Support seam less roaming;
Support AT remote update and cloud update (OTA);
Support Smart Config function (including Android and Ios device).

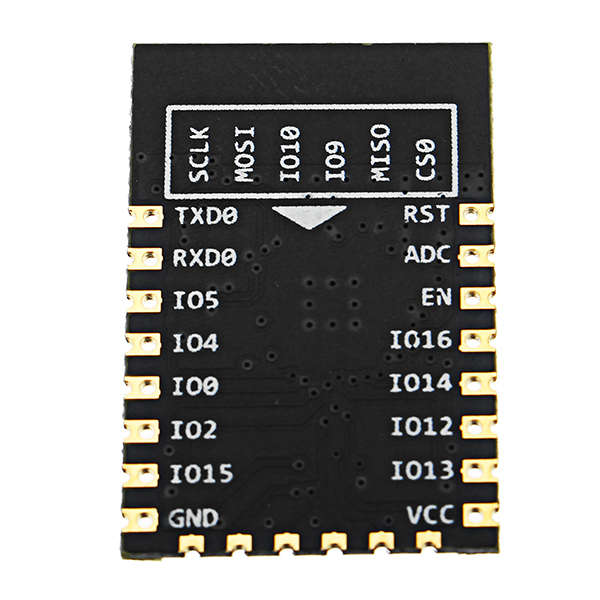

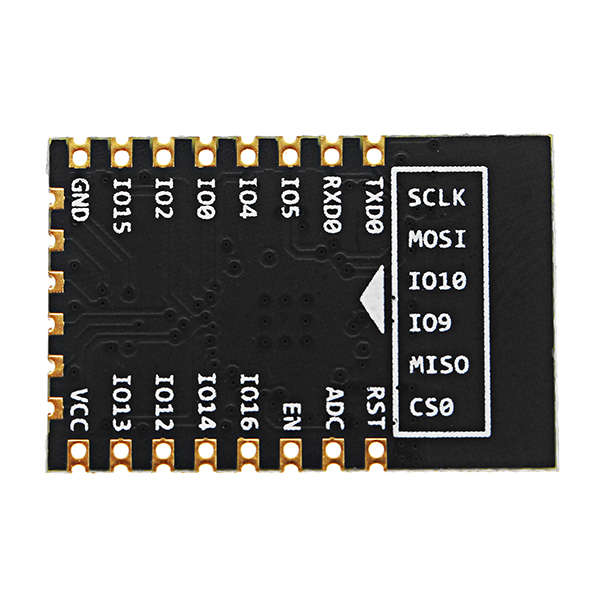

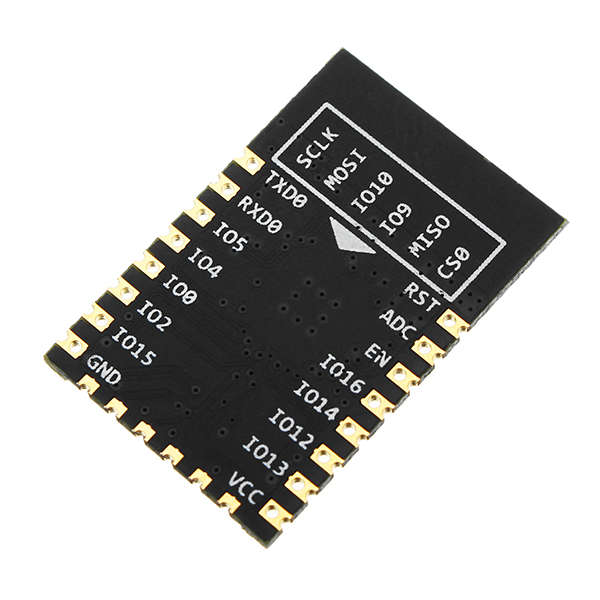

Module interface:
2* UART;
1*ADC;
1*En;
1*wakeup pin;
1*HSPI;
1*I2C;
1*I2S
More than 10*GPIOs
Working temperature:
-40a-+125a;

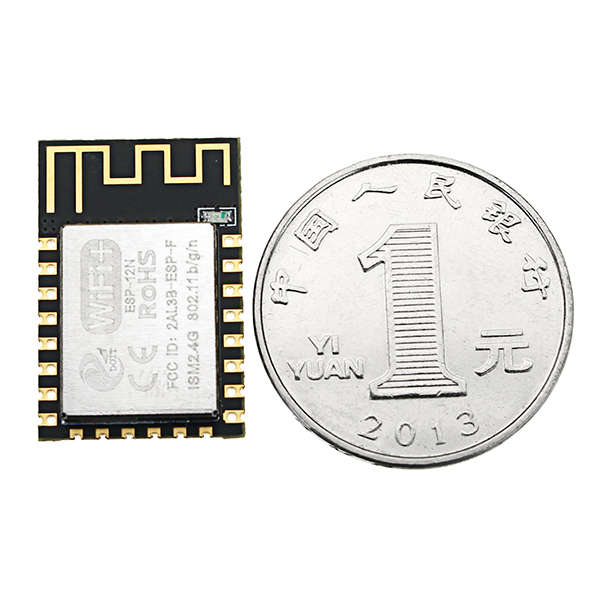

Module size:
16mm24mm
Application:
Electronical appliance;
Smart power plug, smart light;
Infant monitor;
Sensor networks;
Security ID label;
Wireless location beacon;
Home automation;
Mesh networks;
IP video camera;
Wearable electronics;
Wireless location recognition;
Industrial wireless control;
Package included:
1 x ESP-12N ESP8266 Remote Serial Port WIFI Wireless Module
