>>>Manual: Click here to open<<<
Specification:

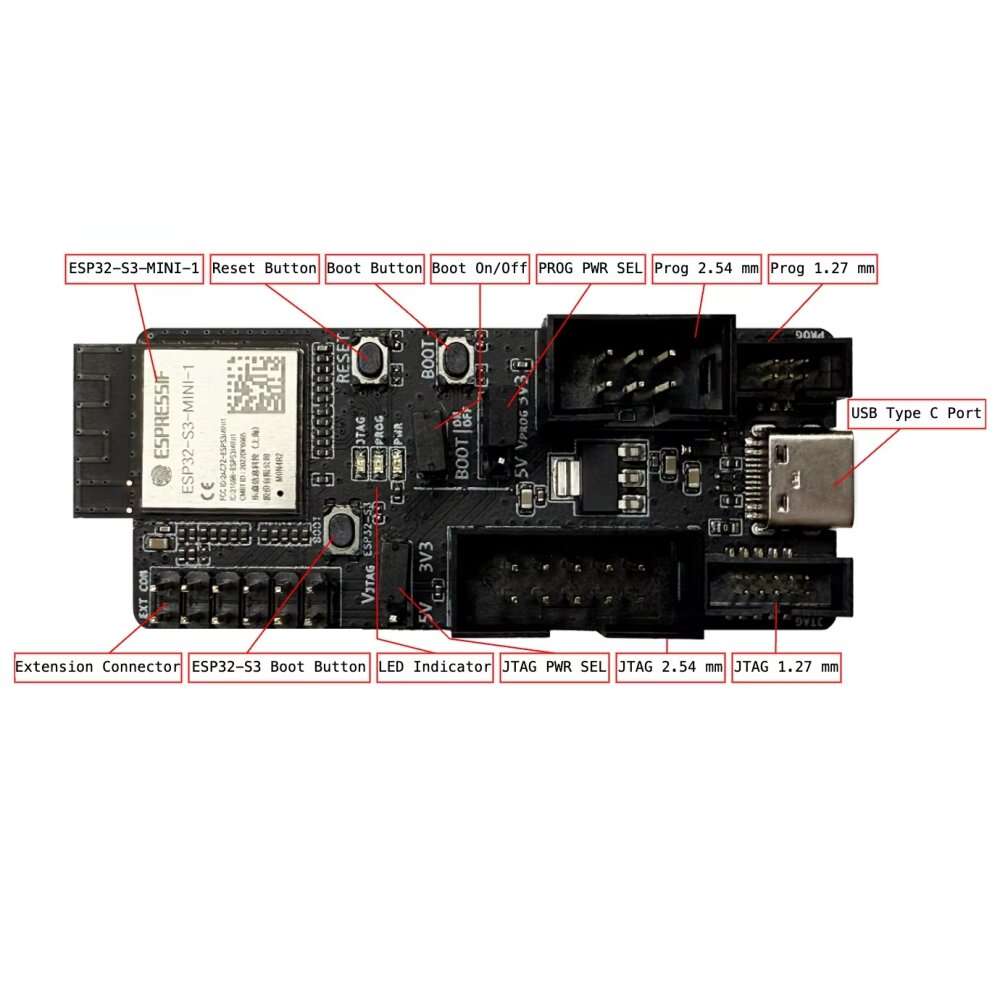

Model: ESP-Prog-2 development and debugging tool
Chip Module: ESP32-S3-MINI-1
Interfaces: Micro USB, JTAG (1.27 mm, 2.54 mm), PROG pins (1.27 mm, 2.54 mm)

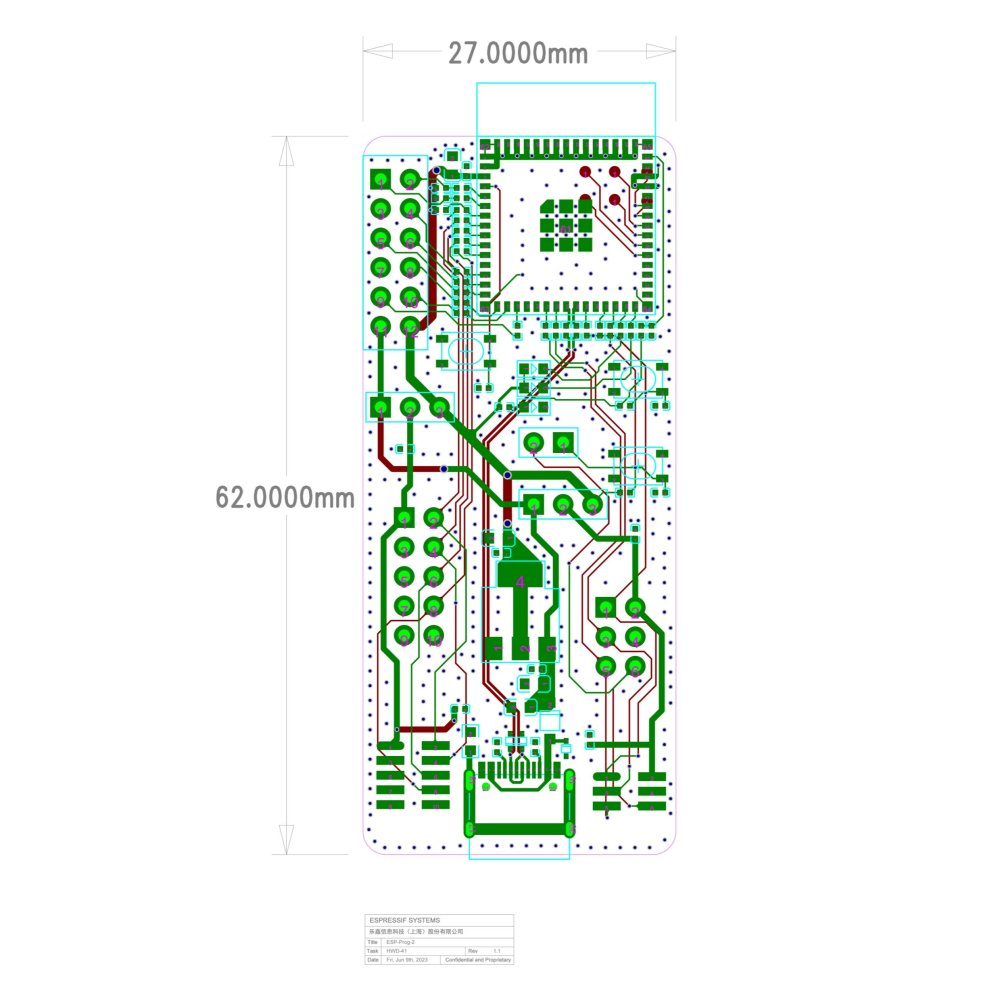

Dimensions: 62 mm × 27 mm
Power Input Options: Supports 3.3V and 5V for JTAG and program interfaces
LED Indicators: Red, green, and blue LEDs for system state visibility
Features:
1. Automatic firmware downloading functionality
2. JTAG online debugging support for ESP32-series boards
3. Single USB-to-UART bridge chip enabling up to 3 Mbps transfer speed.
4. Compatibility with ESP8266, ESP32, ESP32-S2, ESP32-S3, and ESP32-C3
5. Multi-pin headers for GPIO and power selection
6. Compact design for efficient debugging and programming
Package Includes:

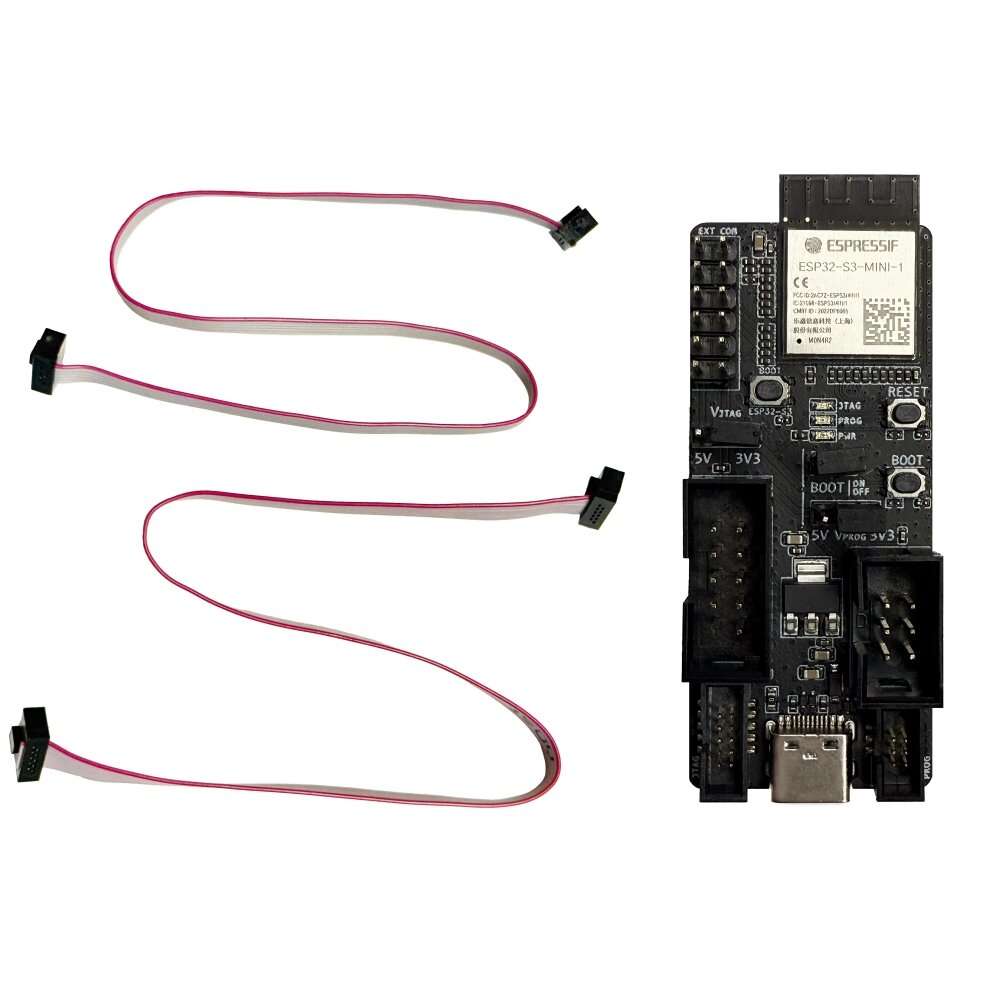

1 × ESP-Prog-2 board
