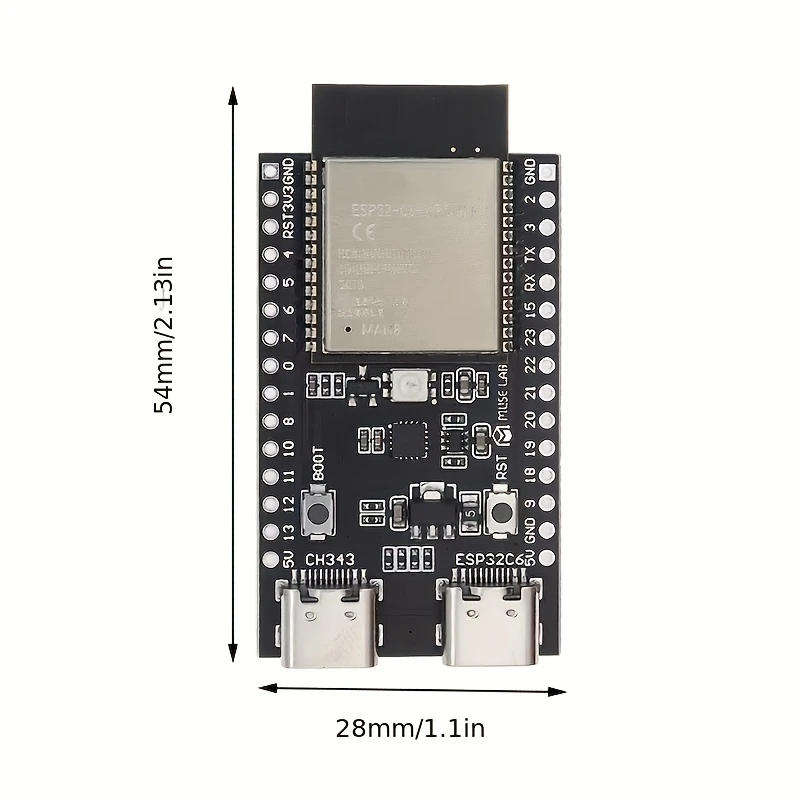

ESP32-C6 (ESP32-C6-WROOM-1-N8) ESP32-C6 Development Board

The nano ESP32-C6 is a development board that utilizes ESPRESSIF's ESP32-C6 series modules. It features an onboard USB to serial port, a TYPE-C connection, and a full-color LED. Additionally, it provides easy access to the debug burning serial port and the USB interface of the ESP32-C6, making it more convenient for everyday development and testing.

If you're planning a Matter device, a Zigbee mesh node, or a reliable smart gadget, the ESP32-C6-WROOM-1-N8 is modern, efficient, and well-rounded. Need a comparison to the ESP32-S3 or ESP32-C3 for your use case? Let me know.

Category	Specification
SoC	Single-core 32bit RISCV, up to 160MHz ()
Internal Memory	ROM: 320KBSRAM: 512KB (highperformance)

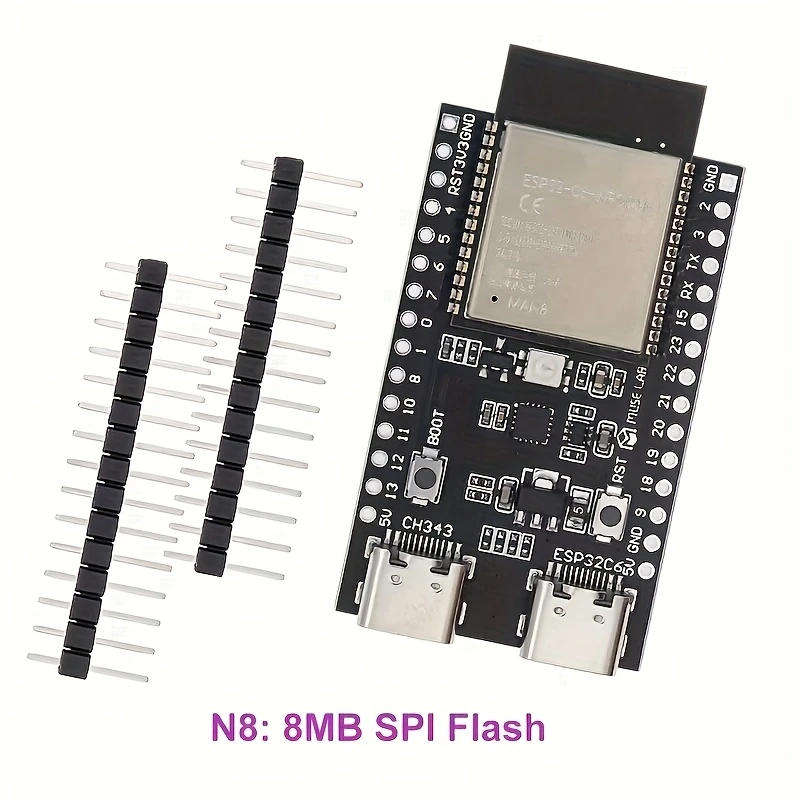

External Flash	8MB QuadSPI flash
Wireless Connectivity	WiFi 6 (802.11ax) 2.4GHz, 1×1MIMO
	Bluetooth LE 5.3, up to +20dBm Tx, BLE Mesh support
	IEEE 802.15.4 (Thread 1.3 & Zigbee 3.0) at 250kbps
Peripherals	Up to 23 GPIOs; SPI, UART, I²C, I²S, RMT, PWM, MCPWM, SDIOslave, GDMA, TWAI® (CAN), JTAG, Event Task Matrix, ADC, temperature sensor
USB	USB 2.0 Serial/JTAG interface
RF Antenna	PCBtrace antenna
Operating Voltage	3.03.6V
Operating Temp Range	40°C to +85°C (Ngrade)
Package Size	25.5×18mm ×~3.1mm
Crystal Oscillator	40MHz onboard crystal
