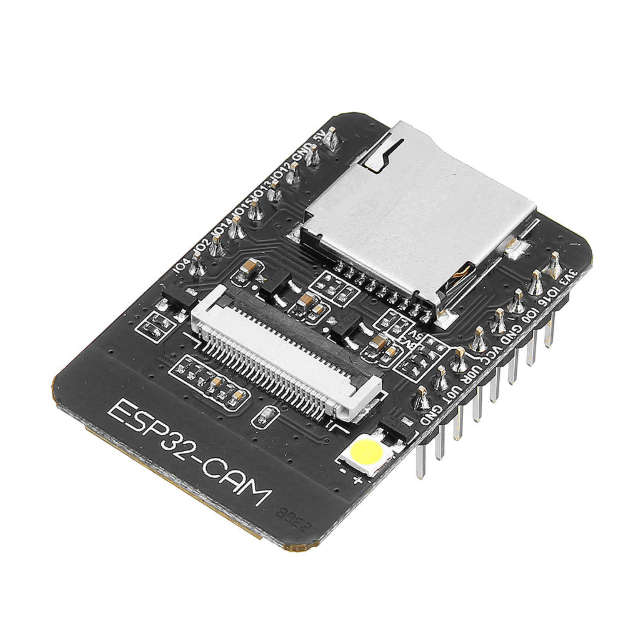

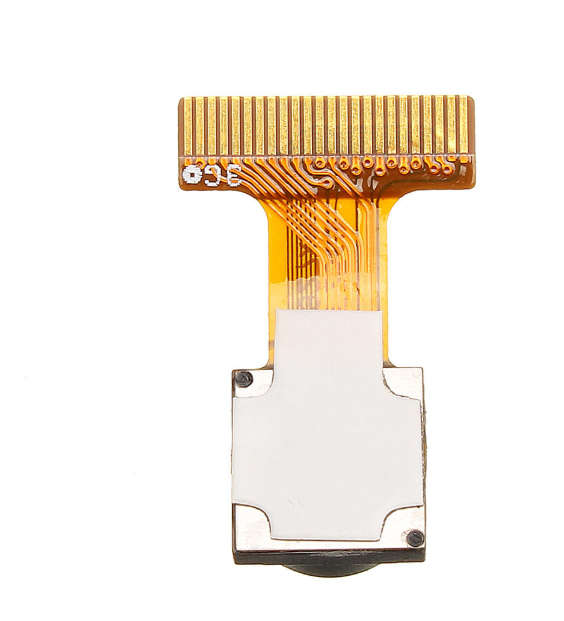

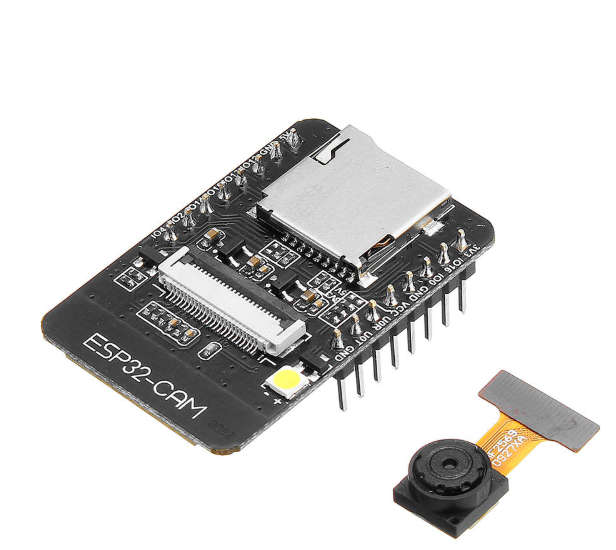

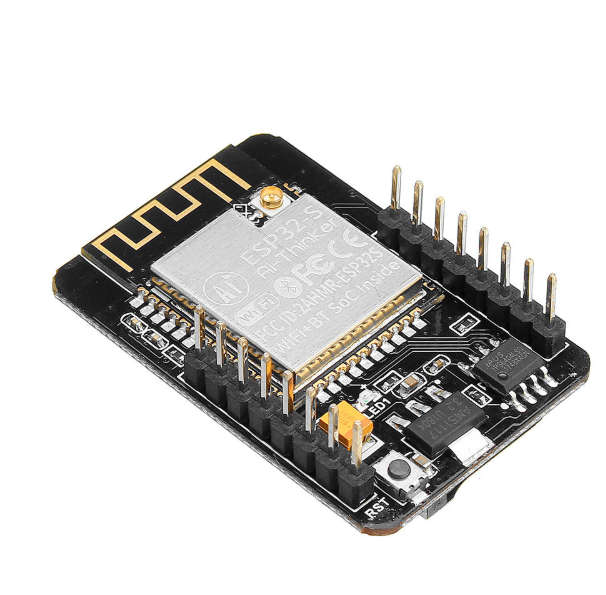

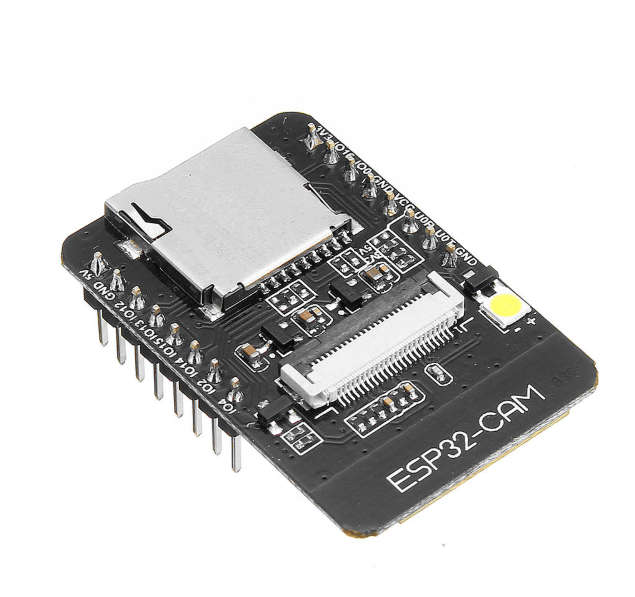

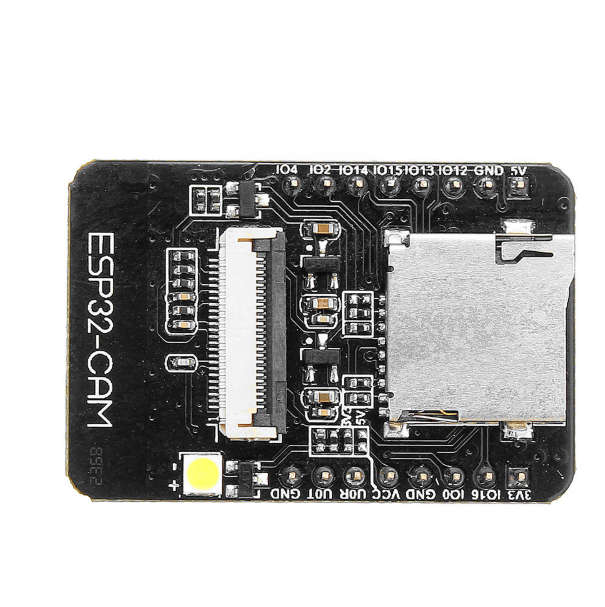

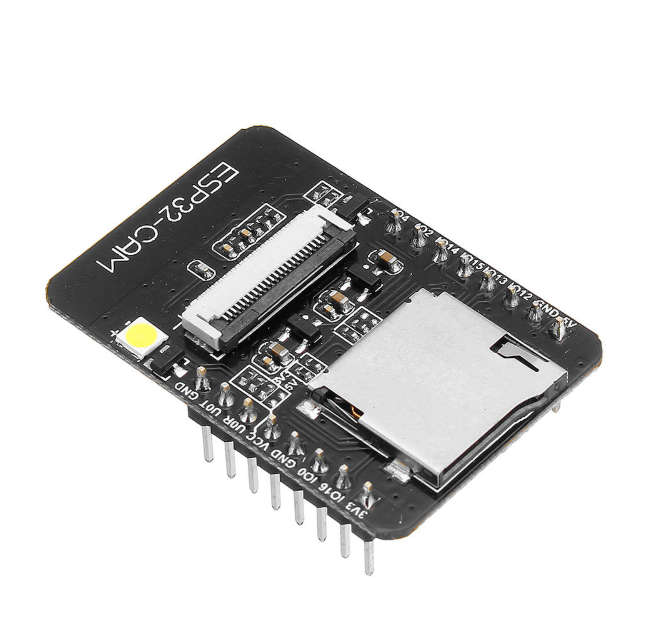

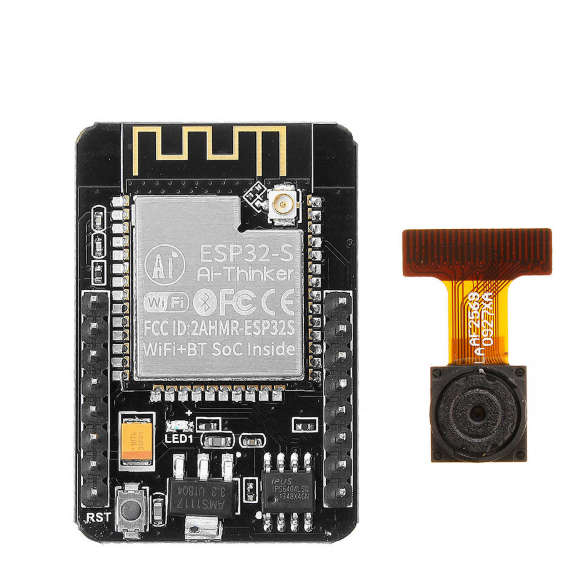

This kit has everything you might require for your visual DIY electronics project, there is WiFi, Bluetooth and BLE and all this is handled by a very capable dual core processor. The camera is included in this kit and you can truly hit the ground running at a great price.
For some more info, please take a look at the following;
Youtube: https://www.youtube.com/watch?v=q7Z_XnBYFhY
Seed Studio: https://www.seeedstudio.com/ESP32-CAM-Development-Board-with-camer-p-3153.html
| Module model | ESP32-CAM |
| Package | DIP-16 |

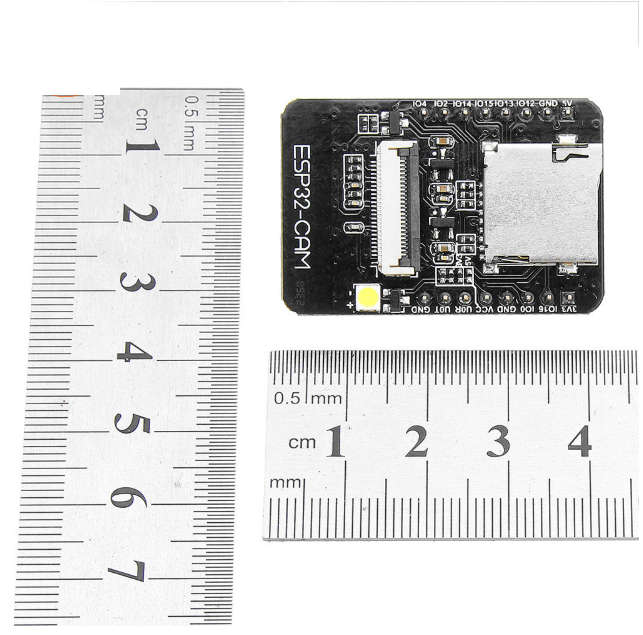

| Size | 27*40.5*4.5(±0.2)mm |
| SPI Flash | default 32Mbit |
| RAM | internal520KB+external 4M PSRAM |
| bluetooth | bluetooth4.2BR/EDR and BLE standards |
| Wi-Fi | 802.11 b/g/n/e/i |
| Support interface | UART, SPI, I2C, PWM |
| Support TF card | Maximum support 4G |
| IO port | 9 |
| Serial port rate | default 115200 bps |
| Image output format | JPEG (only supported by OV2640), BMP, GRAYSCALE |
| Spectrum range | 2412 ~ 2484MHz |
| Antenna form | onboard PCB antenna , gain 2dBi |
| Transmit power | 802.11b: 17±2 dBm (at11Mbps) 802.11g: 14±2 dBm (at 54Mbps) 802.11n: 13±2 dBm (at MCS7) |
| Receiving sensitivity | CCK, 1 Mbps : -90dBm CCK, 11 Mbps: -85dBm 6 Mbps (1/2 BPSK): -88dBm 54 Mbps (3/4 64-QAM): -70dBm MCS7 (65 Mbps, 72.2 Mbps): -67dBm |
| Power consumption | Turn off the flash: 180mA@5V Turn on the flash and adjust the brightness to the maximum: 310mA@5V Deep-sleep: The lowest power consumption can reach 6mA@5V Moderm-sleep: up to 20mA at 5V Light-sleep: up to 6.7mA at 5V |
| Security | WPA/WPA2/WPA2-Enterprise/WPS |
| Power supply range | 5V |
| Operating temperature | -20 °C ~ 85 °C |
| Storage environment | -40 °C ~ 90 °C, < 90%RH |
