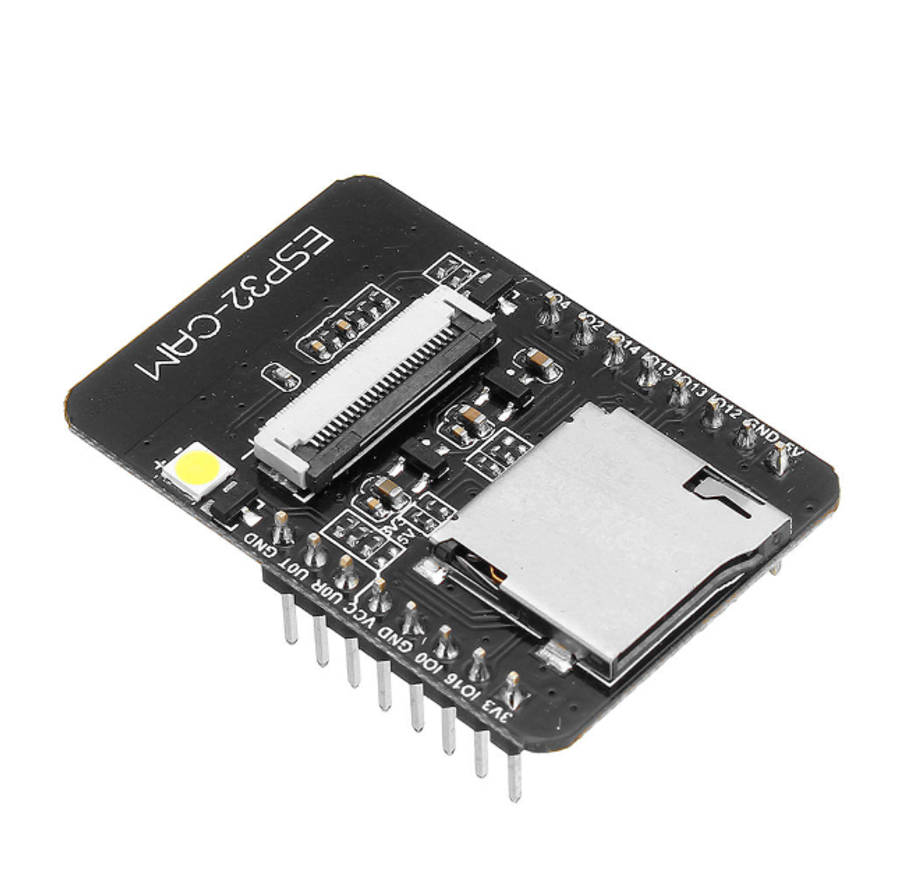

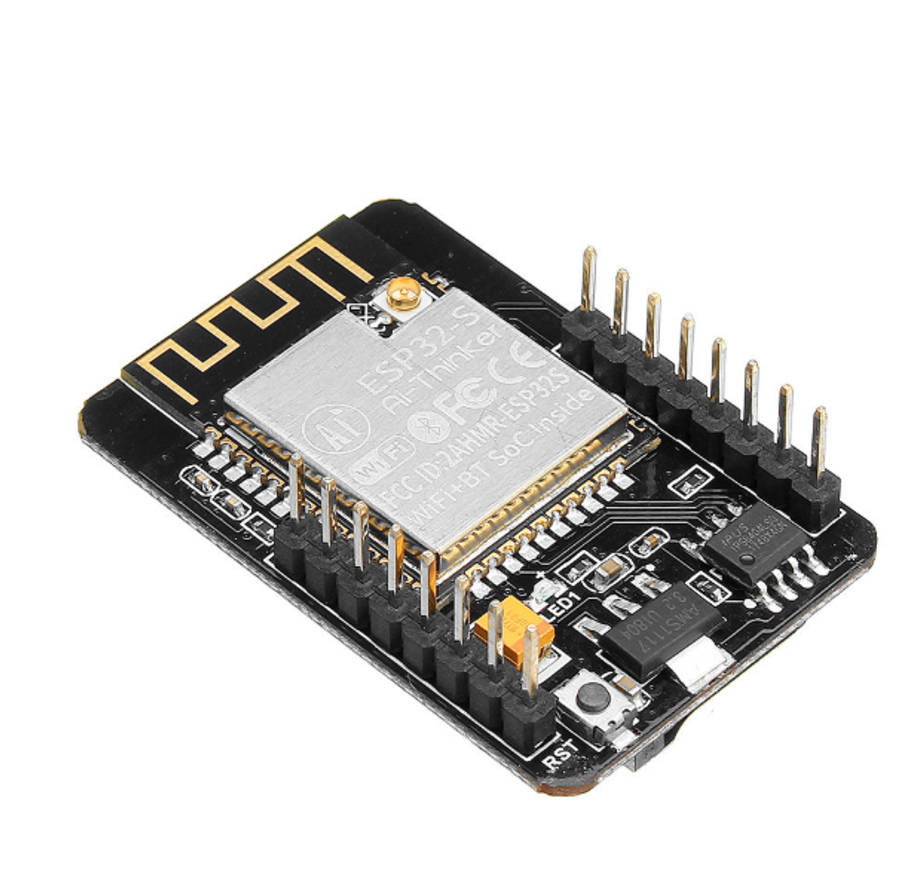

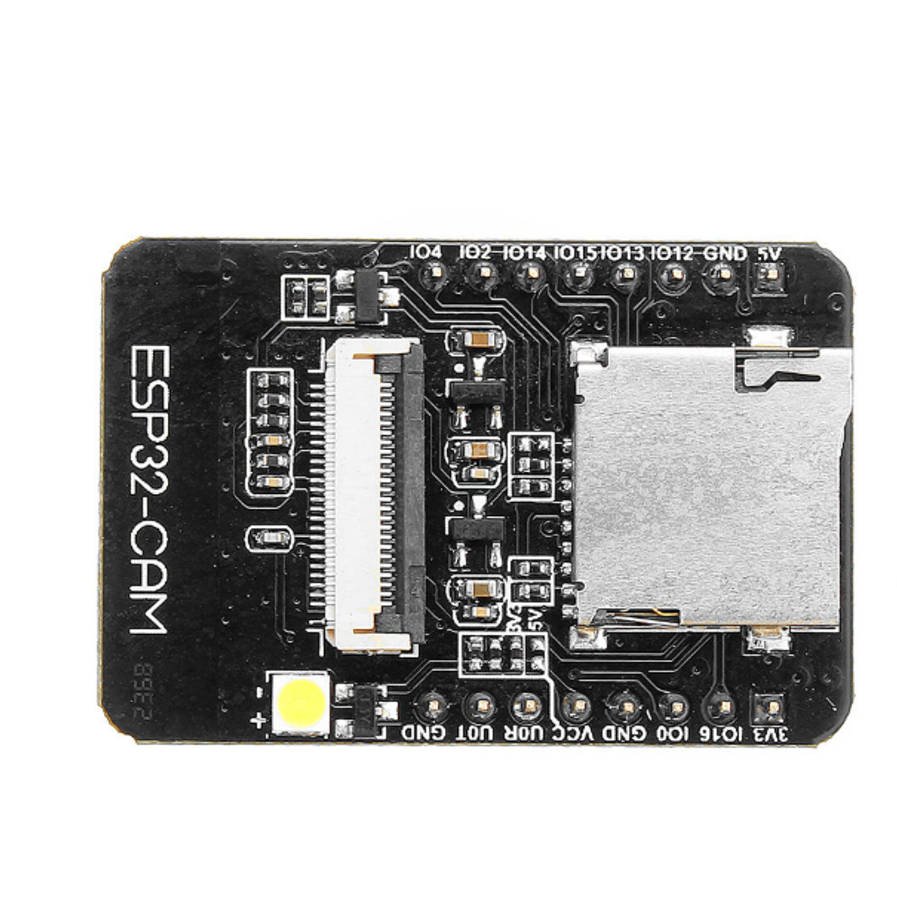

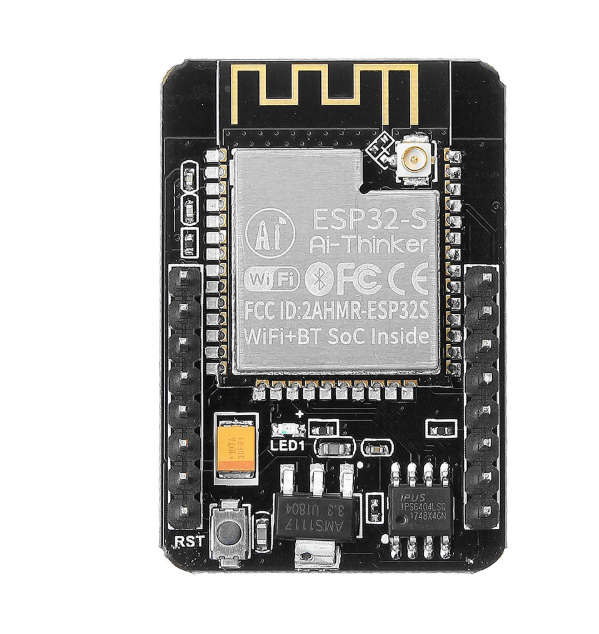

ESP32-CAM WiFi or Bluetooth Camera module ESP32-CAM WiFi or Bluetooth Camera module ESP32-CAM WiFi or Bluetooth Camera module ESP32-CAM WiFi or Bluetooth Camera module ESP32-CAM WiFi or Bluetooth Camera module ESP32-CAM WiFi or Bluetooth Camera module ESP32-CAM WiFi or Bluetooth Camera module ESP32-CAM WiFi or Bluetooth Camera module ESP32-CAM WiFi or Bluetooth Camera module ESP32-CAM WiFi or Bluetooth Camera module ESP32-CAM WiFi or Bluetooth Camera module
ESP32-CAM WiFi or Bluetooth Camera module ESP32-CAM WiFi or Bluetooth Camera module ESP32-CAM WiFi or Bluetooth Camera module ESP32-CAM WiFi or Bluetooth Camera module
ESP32-CAM WiFi or Bluetooth Camera module
+7

ESP32-CAM WiFi or Bluetooth Camera module

New 3 available
Only 3 left – grab it before it’s gone!
R203.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
C03-B10
Bob Shop ID
647556840

Description

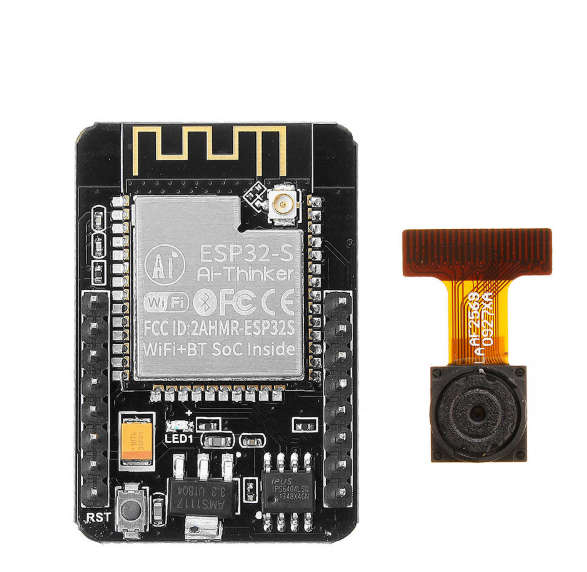

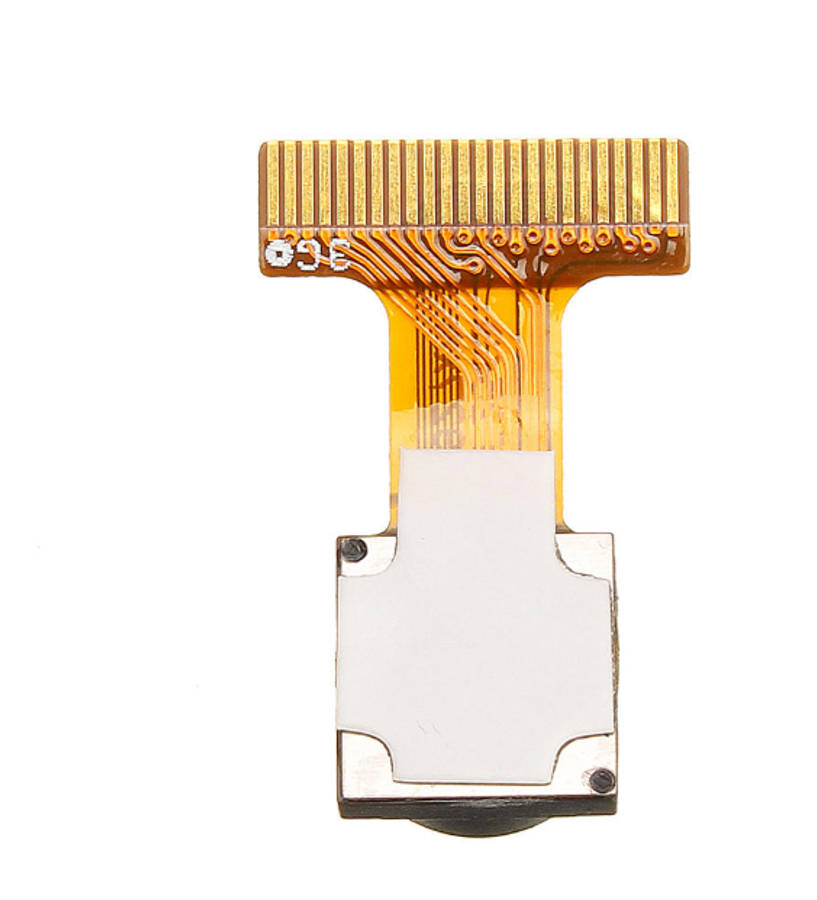

This kit has everything you might require for your visual DIY electronics project, there is WiFi, Bluetooth and BLE and all this is handled by a very capable dual core processor. The camera is included in this kit and you can truly hit the ground running at a great price.

For some more info, please take a look at the following;

Youtube: https://www.youtube.com/watch?v=q7Z_XnBYFhY

Seed Studio: https://www.seeedstudio.com/ESP32-CAM-Development-Board-with-camer-p-3153.html

Specifications

ESP32-CAM Pin out for Arduino

Module modelESP32-CAM
PackageDIP-16

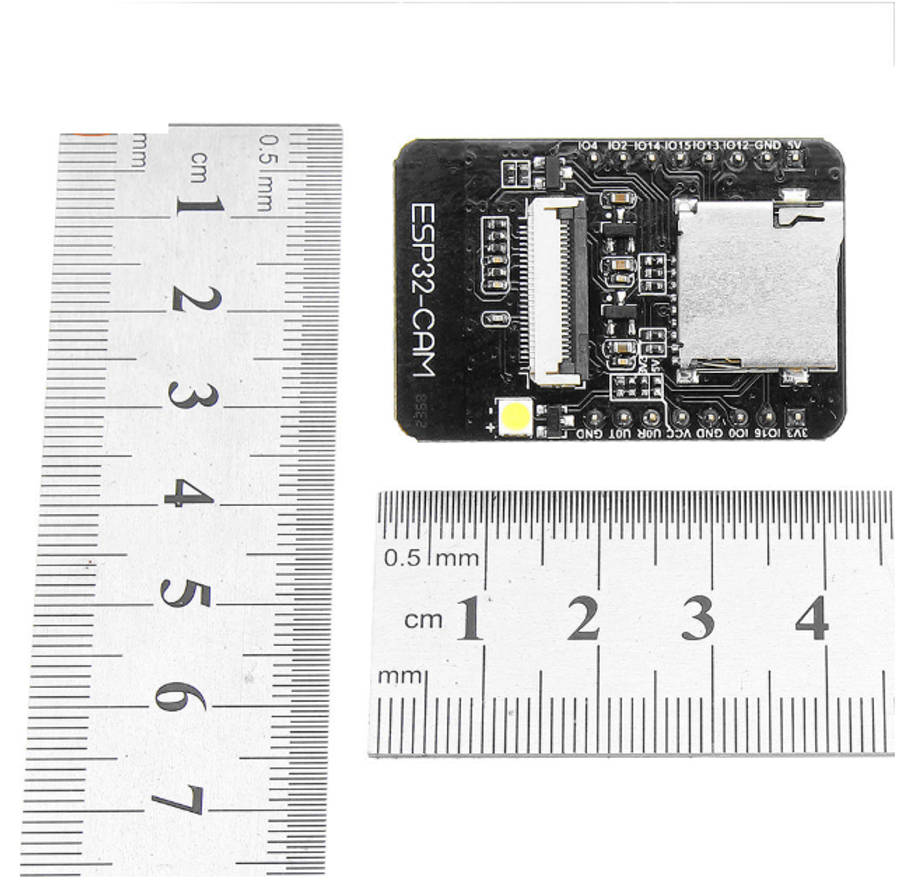

Size27*40.5*4.5(±0.2)mm
SPI Flashdefault 32Mbit
RAMinternal520KB+external 4M PSRAM
bluetoothbluetooth4.2BR/EDR and BLE standards
Wi-Fi802.11 b/g/n/e/i
Support interfaceUART, SPI, I2C, PWM
Support TF cardMaximum support 4G
IO port9
Serial port ratedefault 115200 bps
Image output formatJPEG (only supported by OV2640), BMP, GRAYSCALE
Spectrum range2412 ~ 2484MHz
Antenna formonboard PCB antenna , gain 2dBi
Transmit power802.11b: 17±2 dBm (at11Mbps)
802.11g: 14±2 dBm (at 54Mbps)
802.11n: 13±2 dBm (at MCS7)
Receiving sensitivityCCK, 1 Mbps : -90dBm
CCK, 11 Mbps: -85dBm
6 Mbps (1/2 BPSK): -88dBm
54 Mbps (3/4 64-QAM): -70dBm
MCS7 (65 Mbps, 72.2 Mbps): -67dBm
Power consumptionTurn off the flash: 180mA@5V
Turn on the flash and adjust the brightness to the maximum: 310mA@5V
Deep-sleep: The lowest power consumption can reach 6mA@5V
Moderm-sleep: up to 20mA at 5V
Light-sleep: up to 6.7mA at 5V
SecurityWPA/WPA2/WPA2-Enterprise/WPS
Power supply range5V
Operating temperature-20 °C ~ 85 °C
Storage environment-40 °C ~ 90 °C, < 90%RH
