Module Specification:

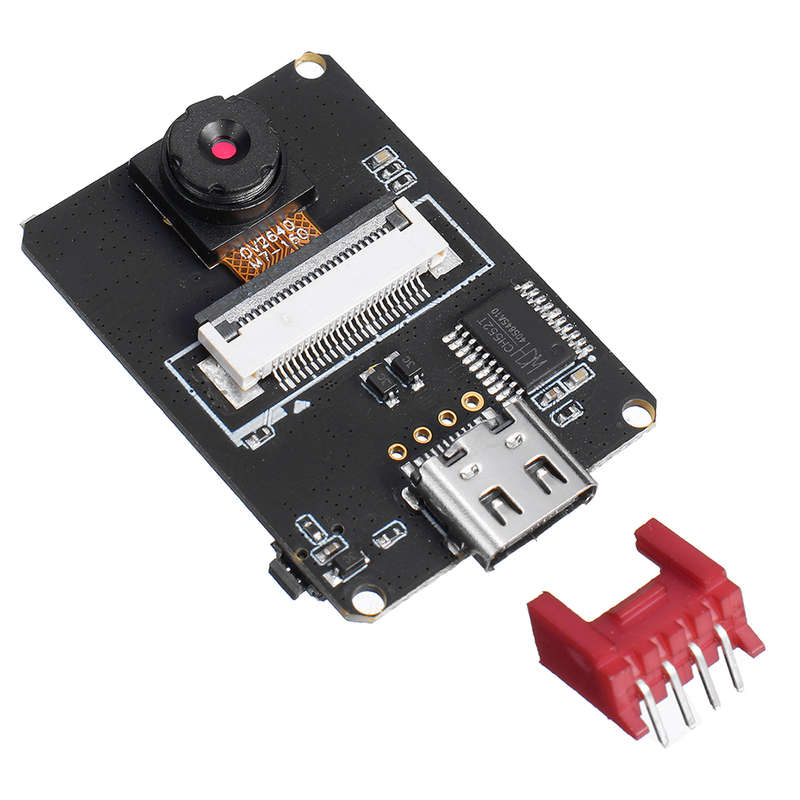

1: The core of the ESP32-CAM2 development board is a low-power chip from Shanghai Espressif. ESP32 is a single-chip solution that integrates 2.4 GHz Wi-Fi and Bluetooth dual-mode, using TSMC`s ultra-low power 40 nanometers Process, with ultra-high radio frequency performance, stability, versatility and reliability, and ultra-low power consumption to meet different power consumption requirements, suitable for various application scenarios a 802.11 b/g/n a 802.11 n (2.4 GHz) speed up to 150 Mbps a Wireless Multimedia (WMM)
2: USB using CH552 chip is an enhanced E8051 core microcontroller compatible with MCS51 instruction set, 79% of its instructions are single-byte single-cycle instructions, and the average instruction speed is 8-15 times faster than standard MCS51. CH552 supports up to 24MHz system main frequency, built-in 16K program memory ROM, 256 bytes of internal iRAM and 1K bytes of on-chip xRAM. xRAM supports DMA direct memory access.
3: The product is equipped with OV2640 Camera
OV2640 is a 1/4 inch CMOS UXGA (1632*1232) image sensor produced by OmniVision
Support automatic control functions such as automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light streaks, etc.
UXGA can reach 15 frames per second, SVGA can reach 30 frames, and CIF can reach 60 frames;
Support image compression, you can output JPEG image data
Best image distance: 20-250CM
According to the different needs of customers, different angle camera lenses can be configured to achieve a wider range of picture angles.
Application:
- Maker DIY secondary development, intelligent toy car scene recognition and other scenes. Digital microphone, gyroscope, temperature and humidity barometer and other functions can be added according to needs
- The module provides dual power supply modes with USB power supply and external battery power supply. The battery above 3.7V500MA has its own charging detection.
Package included:
1 xESP32-CAM2 Development Board
1 xOV2640 Camera
