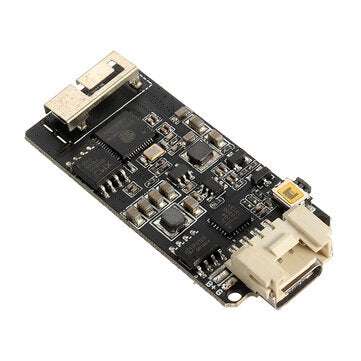

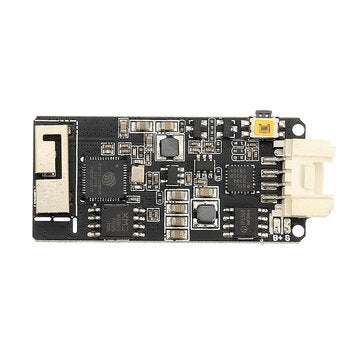

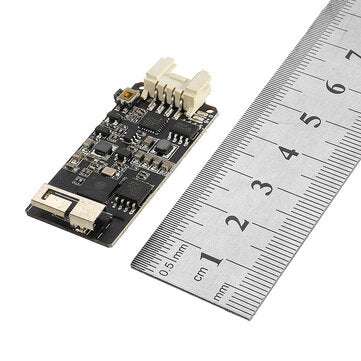

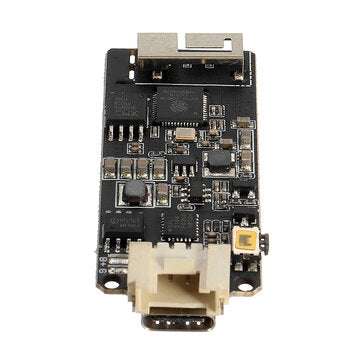

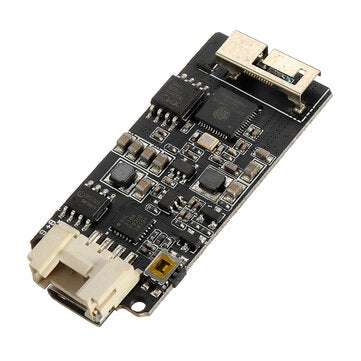

ESP32 Camera Module Development Board OV2640 Camera Type-C Grove Port

Description:

ESP32CAMis a development board for image recognition. It features an ESP32(4M Flash + 520K RAM) chip and 2-Megapixel carmera(OV2640). It also supports image transmission via Wi-Fi and debuging through USB Type-C port.

The hardware comes preloaded software, programmed by ESP-IDF. It is an application to run Wi-Fi camera. The output image is size 600*800, since it`s 2-Maga camera, you sure can optimize the software to output the maximum size of photos.

what this software can do

• Power the board via USB type-C or GROVE
• Use your phone to Wi-Fi scan an AP name start with `m5stack-` and click to connect this AP.
• Open up web browser on your phone and visit 192.168.4.1
• Then here comes the picture. Video is about 5-6 frames per senconds. not super fast.

The hardware also comes with some reserved weld pad, just if you want put these chips back on board.

• 9-axis gyroscope (MPU6050)
• pressure sensor (BME280)
• analog MIC (SPQ2410)
• Lipo Battery power pins

ESP32CAMis the most popular pattern among the M5 camera series so far. If you need more storage please check M5Camera. If you need fisheye lens, please check M5CameraF.

Product Features:

• ESP32 specifications
  • Dual-core Tensilica LX6 microprocessor
  • Up to 240MHz clock frequency
  • 520KB internal RAM
  • 4MB Flash memory
  • Integrated 802.11 BGN WiFi transceiver
  • Integrated dual-mode Bluetooth (classic and BLE)
  • Hardware accelerated encryption (AES, SHA2, ECC, RSA-4096)
• CP2104 USB TTL
• ESP32 chip set + 3D Antenna
• OV2640 sensor
  • Output Formats(8-bit):
    • YUV(422/420)/YCbCr422
    • RGB565/555
