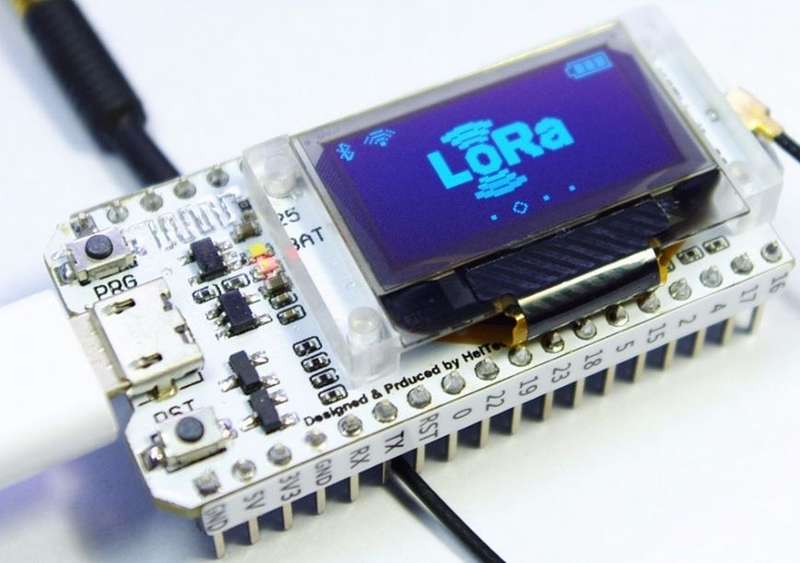

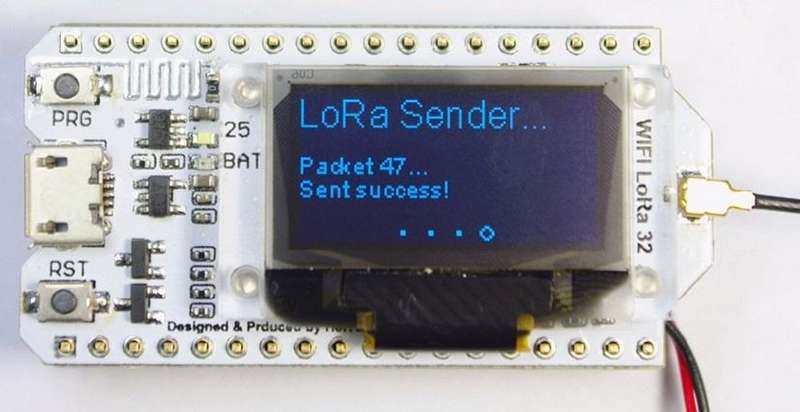

ESP32 Dev Board + SX1278 + 0.96 inch Blue OLED Display

ESP32 Dev Board + SX1278 + 0.96 inch Blue OLED Display

Product Description

The WIFI Kit series is the new development of the cost-effective networking program, the main chip using Lexin ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth).

This product is based on the WIFI Kit 32 added SX1278 chip, that is, LoRa remote modem, 433MHz frequency, about -148dBm high sensitivity, +20 dBm power output, high reliability, transmission distance (measured open area communication distance 2.6Km).


Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for development environment, can be very simple and fast for program verification and product development.

Product Specs:

• Dominant Frequency: 240MHZ
• Flash: 32M-Bits
• Processor: for Tensilica LX6 Dual Core
• Master chip: ESP32
• LoRa chip: SX1276
• Support frequency band: 868-915MHZ
• Open communication distance: 2.8KM
• Computing capacity: up to 600DMIPS
• Dual-mode Bluetooth: traditional Bluetooth and BLE low-power Bluetooth
• Development environment: perfect support for Arduino
• Operating voltage: 3.3-7V
• Operating temperature range: -40-90
• Receiver sensitivity: -139dBm (SF12, 125KHZ)
• UDP continuous throughput: 135Mbps
• USB adapter chip: CP2102
• Support mode: Sniffer, Station, softAP and Wi-Fi Direct
• Transmit power: 19.5dBm@11b, 16.5dBm@11g, 15.5dBm@11n
• Data rate: 150Mbps @ 11n HT40, 72Mbps @ 11n HT20,
• 54Mbps @ 11g, 11Mbps @ 11b
