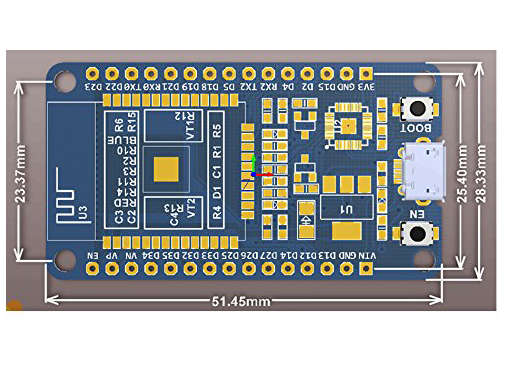

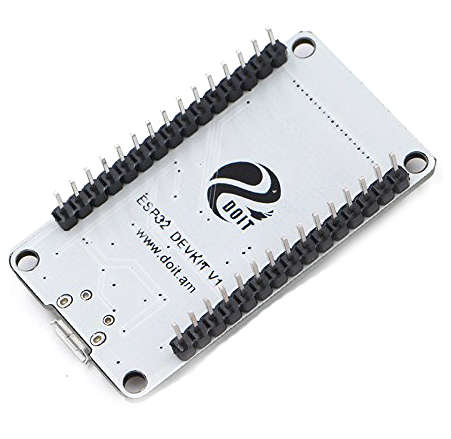

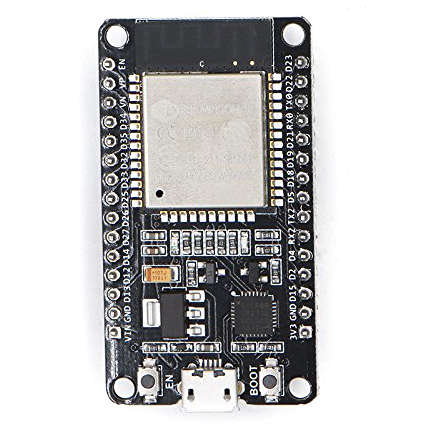

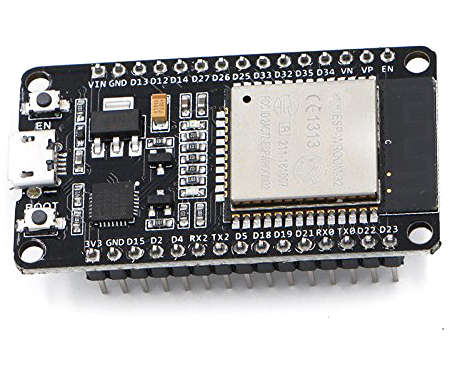

ESP32-DevKitC

The ESP32-DevKitC is a compact development board based on the powerful ESP32 microcontroller. It features a versatile array of on-board peripherals, including a 40 MHz crystal oscillator, an SPI flash, a power amplifier, an ADC, a DAC, and multiple GPIOs. The board is designed to be easy to use and suitable for a wide range of applications, including Internet of Things (IoT) projects, smart home devices, wearable electronics, and industrial control systems. With its compact size, low power consumption, and robust feature set, the ESP32-DevKitC is an ideal platform for rapid prototyping and low-volume production.

The ESP32-DevKitC has the following technical specifications:

Microcontroller: ESP32-PICO-D4
Clock Speed: up to 240 MHz
RAM: 520 KB
Flash Memory: 4 MB
Wireless Connectivity: 802.11 b/g/n Wi-Fi and Bluetooth 4.2
Operating Voltage: 3.3V
Input Voltage: 5V
Digital I/O Pins: 36
Analog Input Pins: 12
UARTs: 3
SPI Interfaces: 2
I2C Interfaces: 2
Operating Temperature: -40C to 85C
The board also features on-board debugging and programming support, as well as a USB-to-Serial converter for easy communication with a PC. Additionally, the ESP32-DevKitC is compatible with a wide range of development environments, including the Arduino Integrated Development Environment (IDE) and the Espressif IoT Development Framework (IDF).
