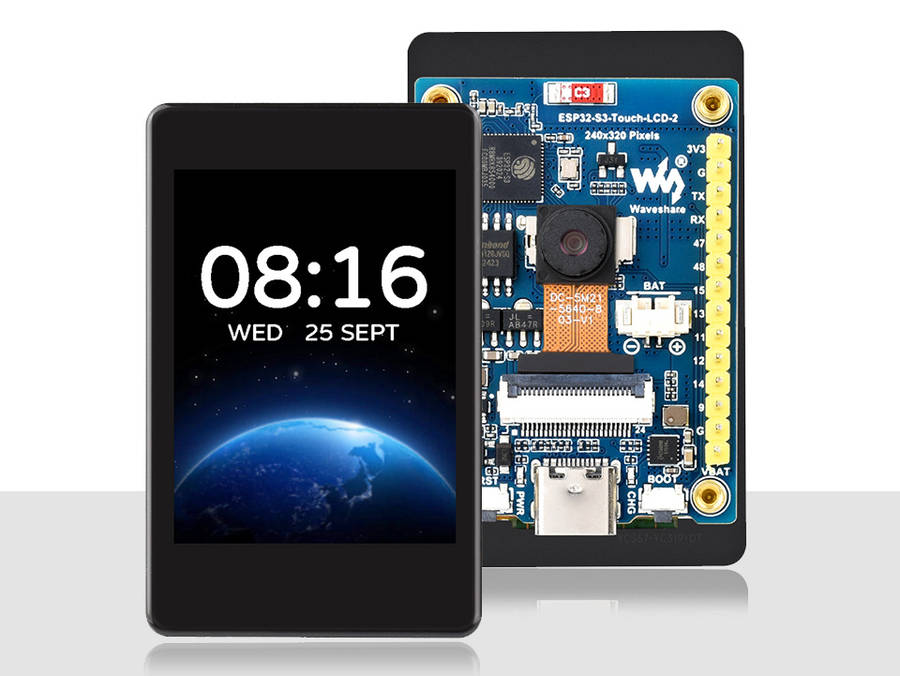

ESP32-S3 2inch Capacitive Touch Display Development Board - 240×320 Pixels, IPS Panel, 32-bit LX...

ESP32-S3 2inch Capacitive Touch Display Development Board - 240×320 Pixels, IPS Panel, 32-bit LX7 Dual-core Processor, Supports WiFi & Bluetooth, Onboard Camera Interface, ESP32 With Display

Product Description

The ESP32-S3 2-inch Capacitive Touch Display Development Board offers a 240×320 IPS touchscreen, powered by a 32-bit LX7 dual-core processor. This board supports both WiFi and Bluetooth, making it ideal for a variety of IoT projects. It also features an onboard camera interface for added versatility, making it perfect for applications requiring high-quality display and connectivity.

Product Features

• Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
• Type-C connector, improving device compatibility, easier to use
• Onboard 2inch capacitive touch display for clear color picture display, 240 × 320 resolution, 262K color
• Built-in ST7789T3 display driver and CST816D capacitive touch chip, using SPI and I2C communication respectively, effectively saving the IO resources
• Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)
• Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
• Onboard USB Type-C port for power supply, program downloading, and debugging, more convenient for development use
• Onboard TF card slot for external TF card storage of pictures or files
• Adapting 22 × GPIO pins for flexible configuration of pin function
• Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640 for image and video acquisition

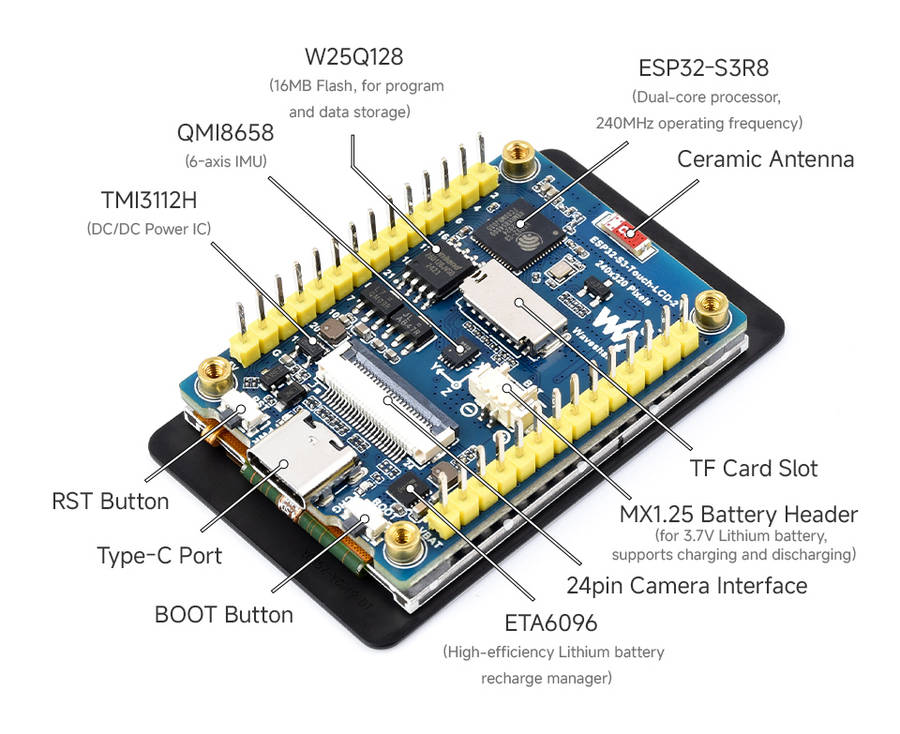

What's on board

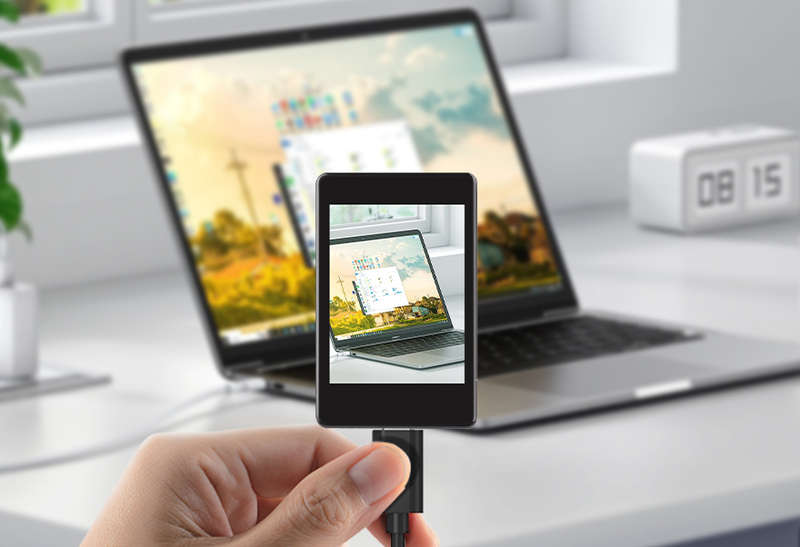

Usage example
