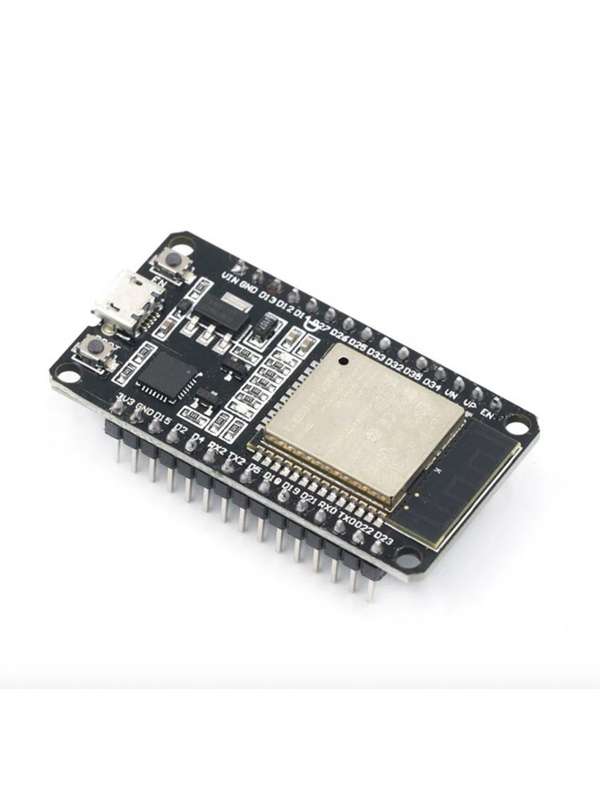

ESP32 wifi + bluetooth develop board

ESP32 wifi+bluetooth develop board

Description:

ESP32 is already integrated antenna and RF balun, power amplifier, low-noise amplifiers, filters, and power management module. The entire solution takes up the least amount of printed circuit board area.This board is used with 2.4 GHz dual-mode Wi-Fi and Bluetooth chips by TSMC 40nm low power technology, power and RF properties best, which is safe, reliable, and scalable to a variety of applications.
Features:

ￂﾠￂﾠￂﾠ High performance-price ratio;

ￂﾠￂﾠￂﾠ Small volume,easily embeded to other products;

ￂﾠￂﾠￂﾠ Strong function with support LWIP protocol,Freertos;

ￂﾠￂﾠￂﾠ Suppporting three modes: AP, STA, and AP+STA;

ￂﾠￂﾠￂﾠ Supporting Lua program, easily to develop.

Specifications(ESP32 Module):

ￂﾠￂﾠￂﾠ ESP32-WROOM-32 contains two low-power Xtensa 32-bit LX6 microprocessors
ￂﾠￂﾠￂﾠ 448 KBytes ROM for booting and core functions
ￂﾠￂﾠￂﾠ 520 KBytes on-chip SRAM
ￂﾠￂﾠￂﾠ 8 KBytes SRAM in RTC SLOW
ￂﾠￂﾠￂﾠ 8 KBytes SRAM in RTC FAST
ￂﾠￂﾠￂﾠ 1 Kbit of EFUSE, 256 bits MAC
ￂﾠￂﾠￂﾠ WiFi: 802.11 b/g/n/d/e/i/k/r (802.11n up to 150 Mbps)
ￂﾠￂﾠￂﾠ Bluetooth v4.2 BR/EDR and BLE specification
ￂﾠￂﾠￂﾠ Wi-Fi mode Station/softAP/SoftAP+station/P2P
ￂﾠￂﾠￂﾠ Security WPA/WPA2/WPA2-Enterprise/WPS
ￂﾠￂﾠￂﾠ Encryption AES/RSA/ECC/SHA
ￂﾠￂﾠￂﾠ IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTT
ￂﾠￂﾠￂﾠ Interfaces: SD-card, UART,SPI,SDIO,I2C,LED PWM,Motor PWM,I2S ,IR,GPIO, capacitive touch sensor, ADC, DAC, Hall sensor, temperature sensor
ￂﾠￂﾠￂﾠ Operating temperature -40 + 85C
ￂﾠￂﾠￂﾠ Operating voltate: 2.2-3.6V
ￂﾠￂﾠￂﾠ Consumption: 80 mA typ
ￂﾠￂﾠￂﾠ Dimensions: 18 mm(L) x 25.5 mm(W) x 2.8 mm(H)
ￂﾠￂﾠￂﾠ Pin pitch:1.27mm
ￂﾠￂﾠￂﾠ Shielding can height: 2 mm
ￂﾠￂﾠￂﾠ PCB tickness: 0.8ￂﾱ0.1mm
