ESP8266 -12E Development Board [local SA Stock!]

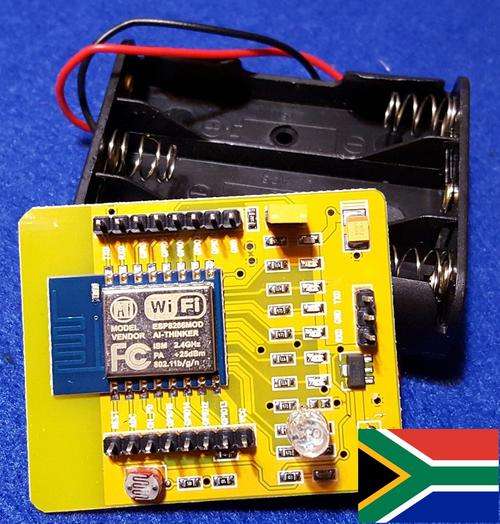

ESP8266 -12E Development Board - Wireless serial WiFi Module

This is a Development board version of the popular new The ESP8266-12E is a tiny but powerful system on a chip and designed for the Internet of Things. It has an integrated Wi-Fi networking solution, allowing it to either host the application on the onboard web server or to offload all Wi-Fi networking functions from another application server.

The Development set comes with 3AA battery holder to allow a standalone project.  All IO pins break out to header. perifiral components to speed up development.

The ESP8266-12E has powerful on-board processing and storage capabilities that allow it to be used for sensors and other applications with minimal development up-front and minimal loading during runtime. withe new version and more exposed pins minimal external circuitry is required and comes in a very small footprint package.  Great for use stand alone due to the powerful processor or with Arduino and Raspberry Pi projects.

Features include:

• A complete and self-contained Wi-Fi networking solution. (802.11 b/g/n, 2.4 GHz)
• Wi-Fi Direct (P2P), soft-AP
• +19.5dBm output power in 802.11b mode - very effective onboard antenna.
• Integrated WEP, TKIP, AES, and WAPI engines
• Powerful processor storage and GPIO facilities on board.

• Integrated TCP/IP protocol stack
• Communicates via standard serial interface. SDIO 1.1/2.0, SPI, UART
• STBC, 1×1 MIMO, 2×1 MIMO
• 13x GPIO pins (inc 3 used during startup and 2 used for UART), 1 ADC pin and more exposed
• VCC: 2.7v - 3.6v (3.3v nominal, up to 240mA consumed)

Delivery in South Africa only.  Delivery service limited to Fasway service area - excluding GREY areas. (see : http://www.fastway.co.za/)

Only 1 shipping charge for 2 or more

Stock in South Africa. There are no additional import taxes or other fees.

NO SUPPORT PROVIDED

Check the following links for more info:

https://www.youtube.com/watch?v=qPmc4NMN6PE
https://github.com/esp8266/arduino

http://www.instructables.com/id/Getting-Started-with-the-ESP8266-ESP-12/?ALLSTEPS

http://www.esp8266.com/wiki/doku.php?id=esp8266-module-family
