ESP8266 -12E Wireless serial WiFi Module - local SA Stock!
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information

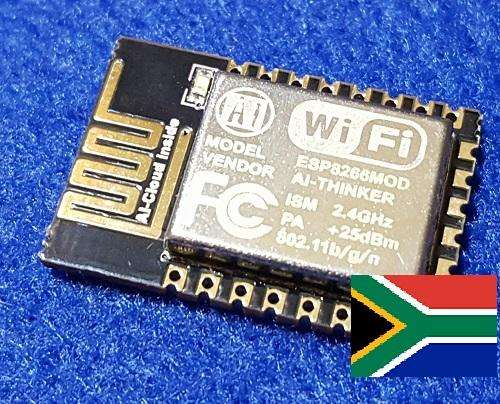

The ESP8266-12E is a tiny but powerful system on a chip and designed for the Internet of Things (IoT). It has an integrated Wi-Fi networking solution, allowing it to either host the application on the onboard web server or to offload all Wi-Fi networking functions from another application server.
The ESP8266-12E has powerful on-board processing and storage capabilities that allows it to be used for sensors and other applications with minimal development and fast runtime. The new version exposes more pins and requires minimal external circuitry and comes in a very small footprint package. Great for use stand alone due to the powerful processor or with Arduino and Raspberry Pi projects, PIC or other CPU's.
Features include:
- A complete and self-contained Wi-Fi networking solution. (802.11 b/g/n, 2.4 GHz)
- Wi-Fi Direct (P2P), soft-AP
- +19.5dBm output power in 802.11b mode - very effective onboard antenna.
- Integrated WEP, TKIP, AES, and WAPI engines
- Powerful processor storage and GPIO facilities on board.
- Integrated TCP/IP protocol stack
- Communicates via standard serial interface. SDIO 1.1/2.0, SPI, UART
- STBC, 1×1 MIMO, 2×1 MIMO
- 13x GPIO pins (inc 3 used during startup and 2 used for UART), 1 ADC pin and more exposed
- VCC: 2.7v - 3.6v (3.3v nominal, up to 240mA consumed)
Delivery in South Africa only. Delivery service limited to Fasway service area - excluding GREY areas. (see : http://www.fastway.co.za/)
Only 1 shipping charge for 2 or more!
Ships latest the next business day.
Stock in South Africa. There are no additional import taxes or other fees.
NO SUPPORT PROVIDED
Check the following links for more info:
https://github.com/esp8266/arduino
http://www.instructables.com/id/Getting-Started-with-the-ESP8266-ESP-12/?ALLSTEPS
http://www.esp8266.com/wiki/doku.php?id=esp8266-module-family
