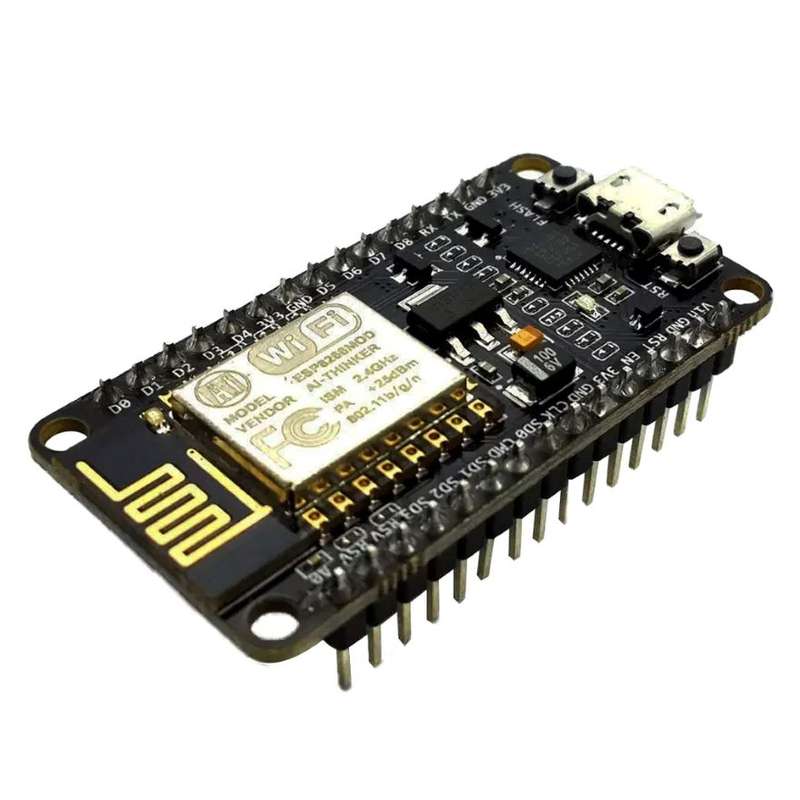

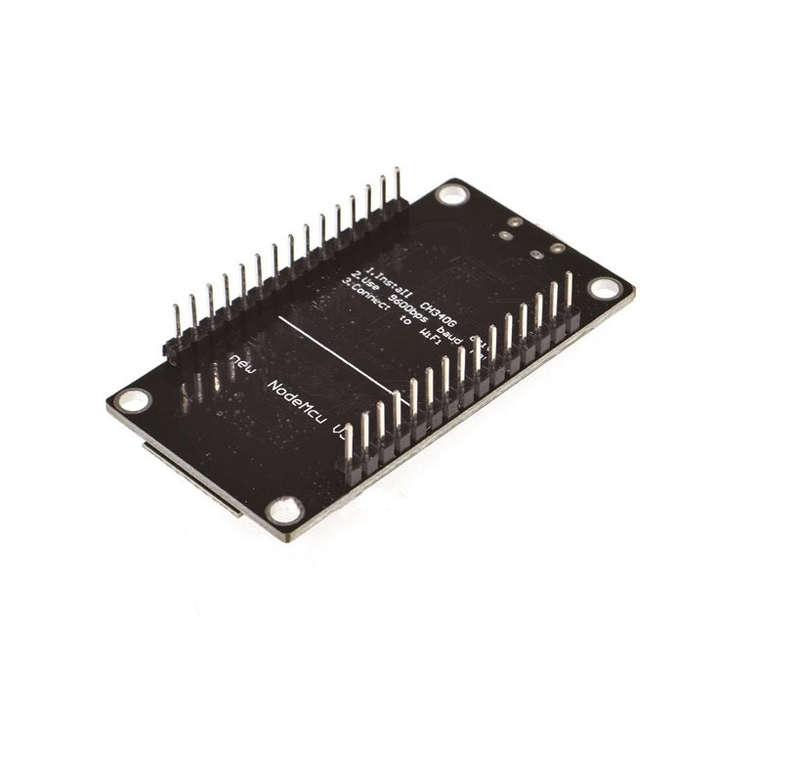

ESP8266 development board

ESP8266 development board.

The ESP8266 is an IoT(Internet of Things) device. The ESP8266 has wifi capabilities which will allow you to connect to it remotely. With the ESP8266 you can create a web page that can either send data or receive data from you or any end user that you allow to access the web page.

The ESP8266 is small but powerful enough to use as a stand-alone device for your IoT needs. The ESP8266 is easy to access from cloud-based environments to access your sensor data easily and effectively.

ESP8266 development board Specification:

• The Development Kit based on ESP8266 integrates GPIO, PWM, IIC, 1-Wire, and ADC all in one board.
• Power your development in the fastest way by combining with NodeMCU Firmware!
• USB-TTL included plug&play
• 10 GPIO, every GPIO can be PWM, I2C, 1-wire
• FCC CERTIFIED WI-FI moduleComing soon
• PCB antenna

ESP8266 development board Features:

• Open-source
• Interactive
• Programmable
• Low cost
• Simple
• Smart
• WI-FI enabled

Pin Out:

ESP8266 development board Document:

        Schematic&PCB, Source Code, API Documents
