ESP8266 ESP-01 USB 5V Programmer Wifi Development Board UART GPIO0 CH340G **LOCAL STOCK**

Programmer USB 5V UART GPIO0 CH340G ESP8266 ESP-01:

Category: 1500312645 / 1518312645 - Controller Relay Module

Specifications:

Size: 50 x 16 x 13mm (Attached)

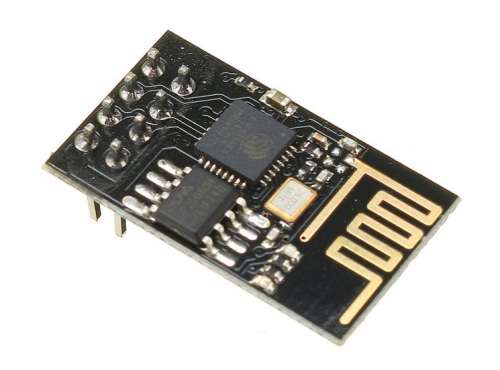

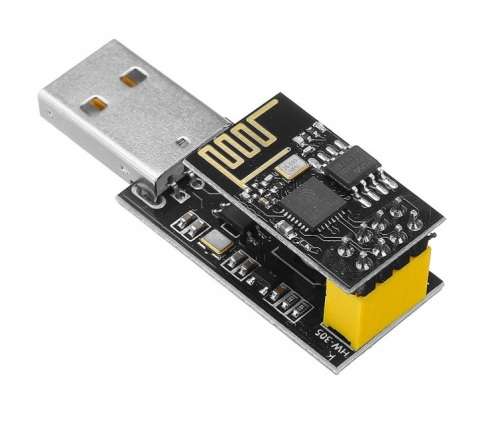

- This module is a USB adapter/programmer for ESP8266 modules of type ESP-01.

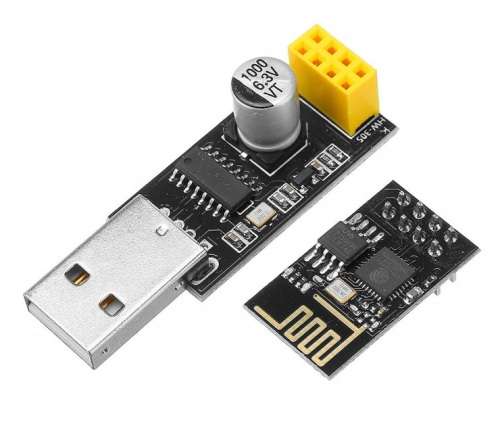

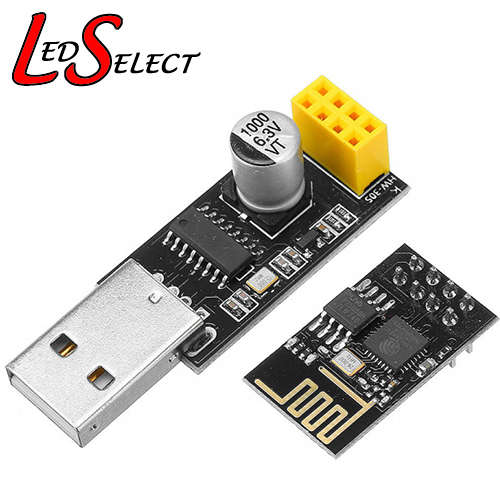

- It is conveniently fitted with a 2x4P 2.54mm female header to plug the ESP01 and configure or run it right away.

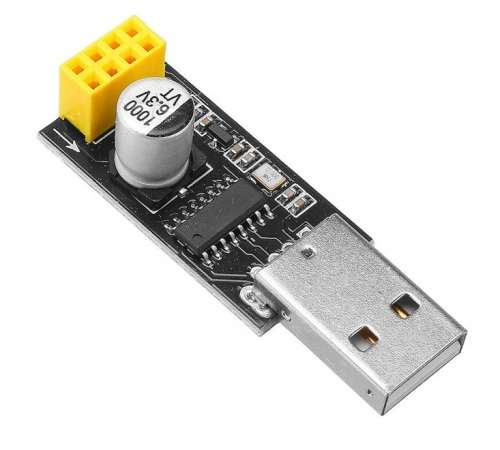

- Large 1000μF cap will help to get a steady 5.0V VCC from the USB bus and jumper (on the right of the 2x4P header) will help to configure the GPIO0 line according to needs.

- The module is based on the USB-UART bridge CH340 from WCH which is compatible with all platforms.

Note:

For a usage with Arduino ESP8266 platform and for Arduino IDE it is necessary to switch manually the GPIO0 state for working mode, in order to get a fully automatic upload it is most likely possible, for a very limited effort, to assign an unused control line from CH340 to driver the GPIO0 line (probably at the cost of a necessary logic inversion), refer to the CH340 datasheet and most important to the NodeMCU V0.9 which use the CH340 and already implements this solution, the schematic is open source and easily available.
