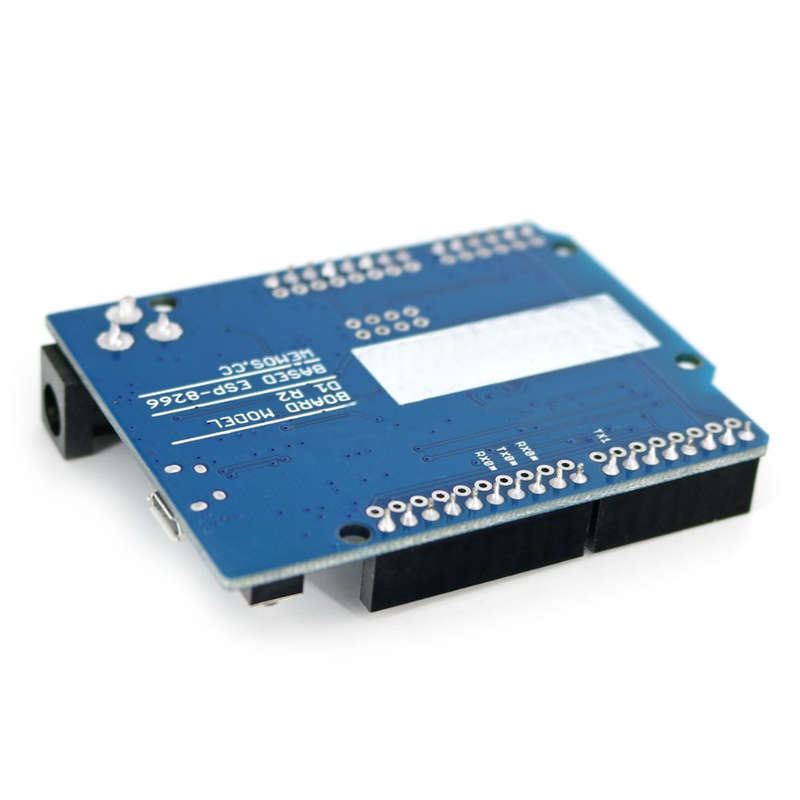

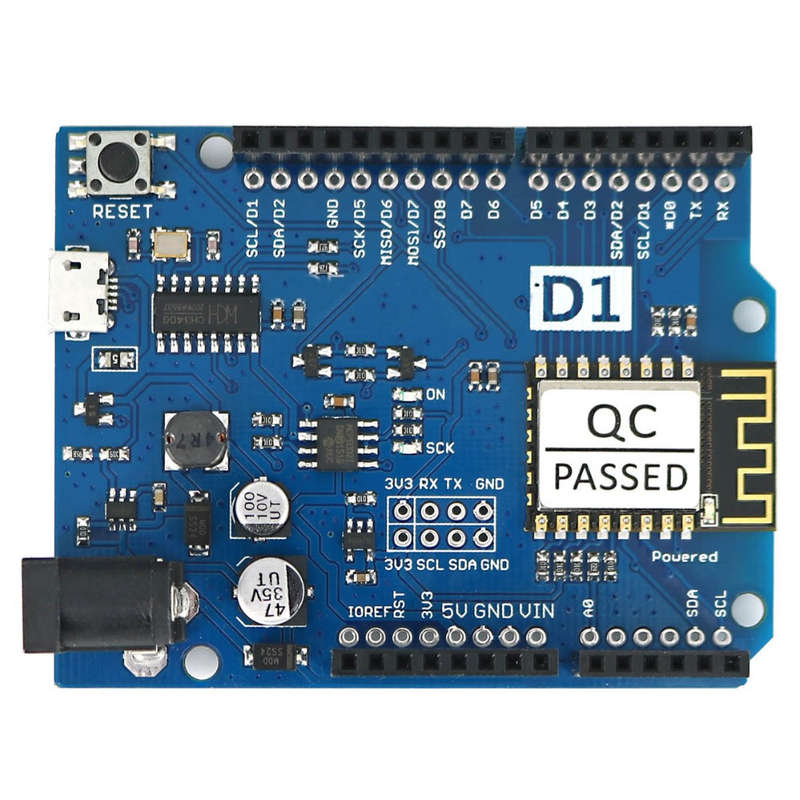

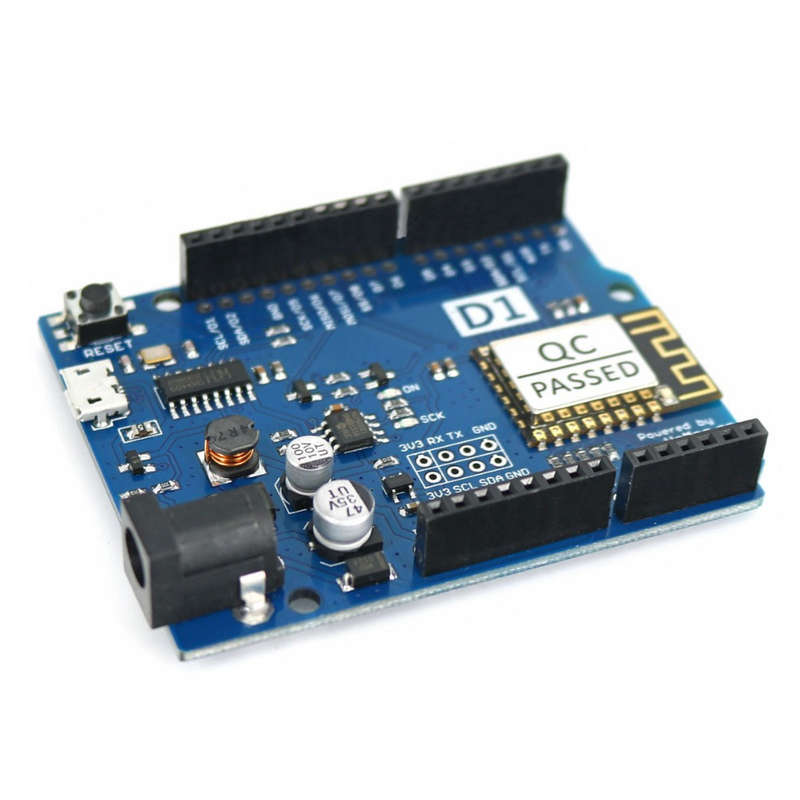

ESP8266 ESP-12F Wi-Fi UNO Development Board Module Support IDE Built-in CH340G Driver

Description: This is a new version of the high-performance 2.4G Wi-Fi development board based on the ESP-12E and CH340G. After installing the hardware package for this development board on Ar duino-1.6.5 IDE, you can use the IDE to program and design. Feature: - Specially supply for Arduino lover. - Compatible with Arduino, you can use the Arduino IDE directly. - Compatible with NodeMCU. - It also leads out the pins pads for the UART and I2C interface. - It makes you easier and faster to complete the project of Wi-Fi remote home appliances. - Wireless Upload Program available. - It is built based on mature and popular ESP8266 technology. You can take advantage of the abundant resources available on the web. - It has built-in USB-TTL serial with super reliable industrial strength CH340G for superior stability on all supported platforms. - Antenna Type: Built-in PCB antenna is available. - Wireless Network Mode: station / softAP / SoftAP + station. - Wireless criteria: 802.11 b / g / n. - WIFI @ 2.4 GHz, support for WPA / WPA2 security mode. - Working voltage: 3.3V - IO logic level: 3.3V - DC jack input voltage: 6-24VDC. - DC jack input current: 800mA(MAX) - Micro USB socket input current: 500mA(MAX) - ADC pin (A0) input voltage: 0-3.3V - Flash capacity: 4M Bytes - Clock frequency: 80MHz or 160MHz - Applications: Smart Car, Home automation, Sensor networks, Industrial wireless control

Package includes:

1 xDevelopment Board
