ESP8266 [local stock]

ESP8266 on a very small dev board to speed up development

WeMos - D1 mini - Mini NodeMcu 4MB    (See other listing for 5x or 10x pack)

ESP8266 development platform

Description:

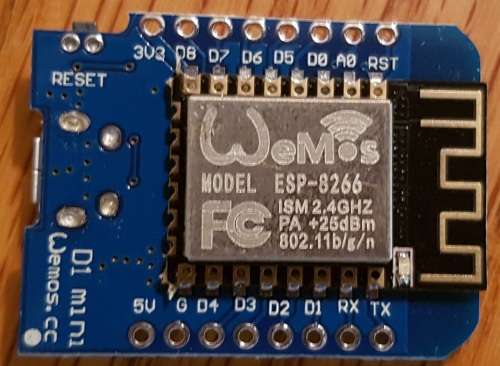

The small WeMos D1 mini V2 is based on ESP8266 wifi board.

The perfect unit for IoT (Internet of Things) development

Very easy to use and many resources online.  Easier for fast prototyping than standalone ESP8266.  Arduino/Lua WIFI Internet of Things development board based on ESP8266 by WeMos.

Convenient breakout board for shields

More info: http://www.wemos.cc

Features:

-11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except  D0)

-1 analog input(3.2V max input)

-a Micro USB connection

-Board size: 34.2mm*25.6mm

-Compatible with Arduino  https://github.com/esp8266/Arduino

-Compatible with nodemcu  http://www.nodemcu.com

What is new about V2:

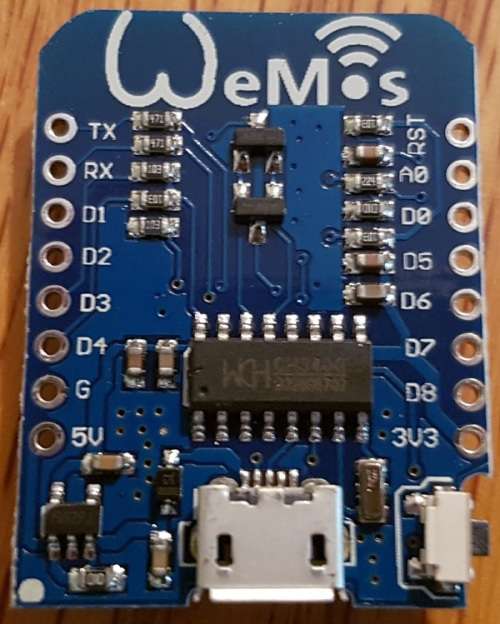

1. Use BRT (Bias Resistor Transistor), easier into flash mode.

2. 30% increase in radiating area, more stable.

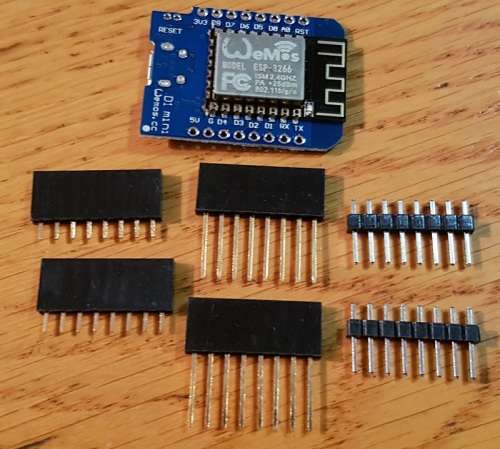

Package included:

1 x WeMos D1 mini

2 x Long female header pin

2 x Short female header pin

2 x Normal header pin
