Description:

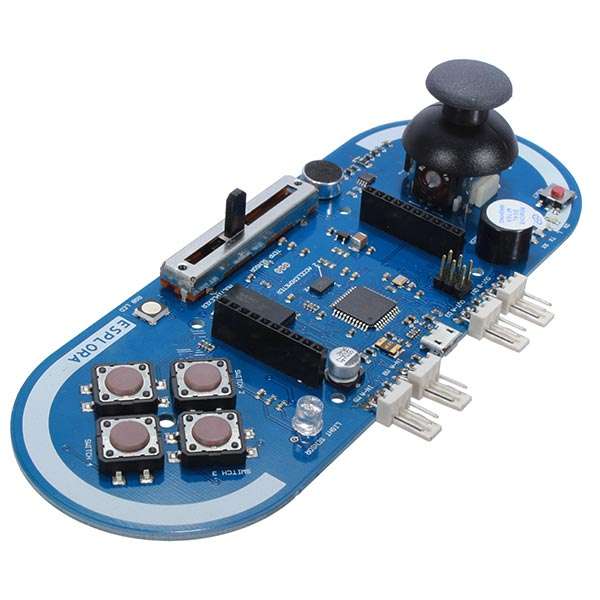

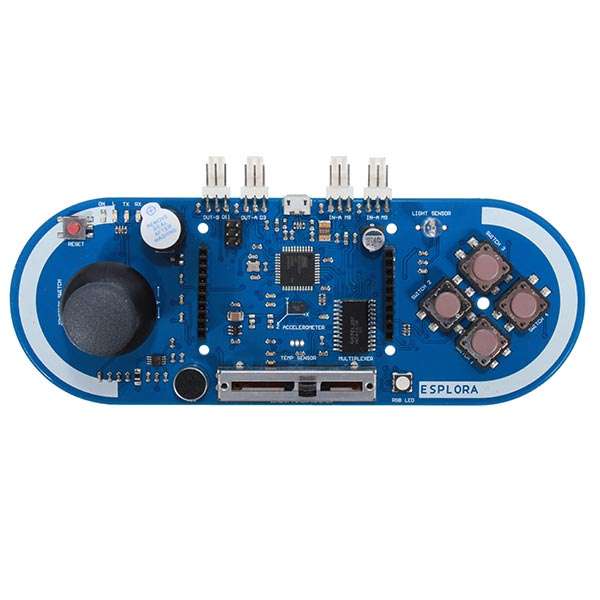

This is compatible Esplora, a game programming module board. About the Esplora:
Esplora is a microcontroller board derived from the Leonardo. It's designed for people who want to get up and running with without having to learn about the electronics first.
Like the Leonardo board, the Esplora uses an Atmega32U4 AVR microcontroller with 16 MHz crystal oscillator and a micro USB connection capable of acting as a USB client device, like a mouse or a keyboard. The Esplora differs from all preceding boards in that it provides a number of built-in, ready-to-use setof onboard sensors for interaction.

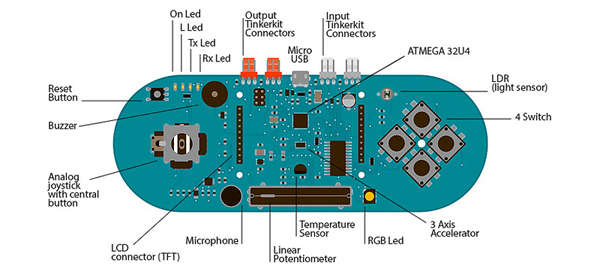

The Esplora has onboard sound and light outputs, and several input sensors, including:
Joystick
Slider
Temperature sensor
Accelerometer
Microphone
Light sensor
RGb LED
The new interface:
Two Tinkerkit input and output connectors
Socket for a color TFT LCD screen
These new hardware features support the latest version of the IDE 1.0.3
Specification:
Microcontroller: ATmega32u4
Operating voltage: 5V
Flash memory: 32KB(of which 4KB used by bootloader)
SRAM: 2.5KB
EEPROM: 1KB
Clock speed: 16MHz
Note:
Esplora need an external variable resistor
Central of Esplora can extension 128 x 160 1.8 inch TFT LCD
Package included:

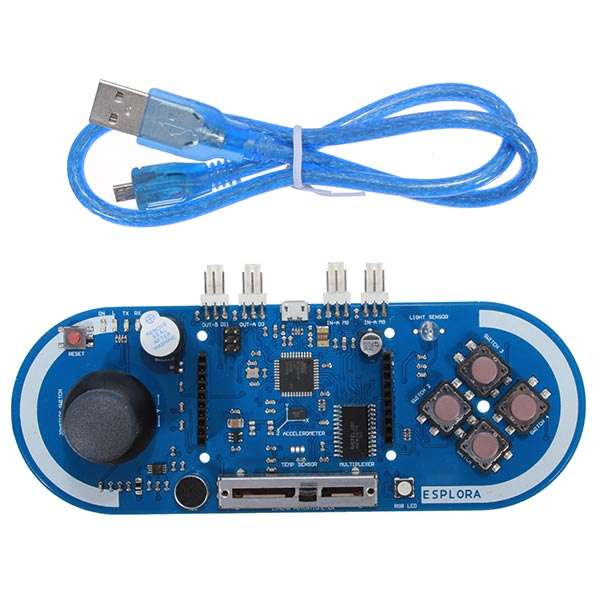

1 x compatible Esplora
,
,
,
