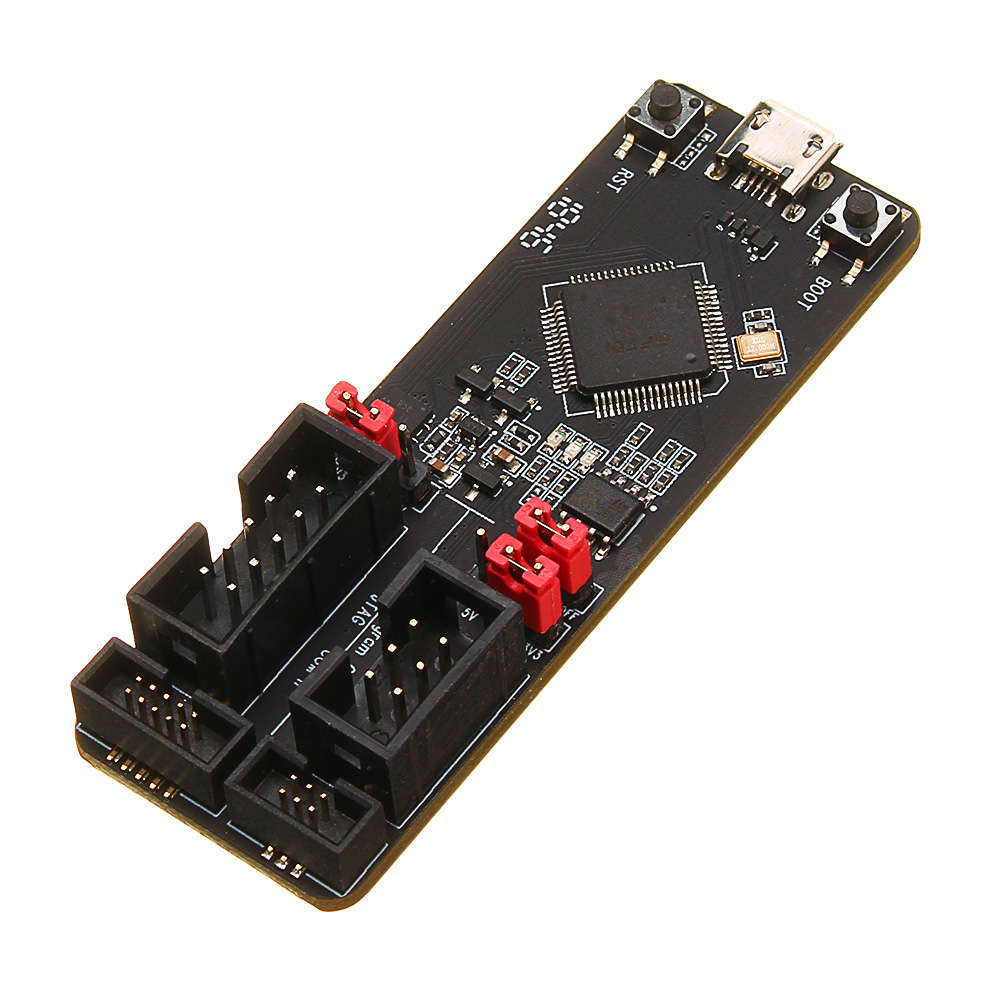

Espressif ESP-Prog Development Board JTAG Debug Program Downloader Compa

New 5 were available
Indicative market price: R720.00
R479.00
33% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Returns
Replacement Guarantee: 7 Days: Only if item is faulty.
Get it now, pay later

Product details

Condition
New
Location
International
Product code
1436273 Espressif ESP-Prog Development Board JTAG Debug Program Downloader Compatible Fo
Bob Shop ID
451509080

BUY IT NOW!

FAST AFFORDABLE COURIER SHIPPING TO SOUTH AFRICA



Feature:

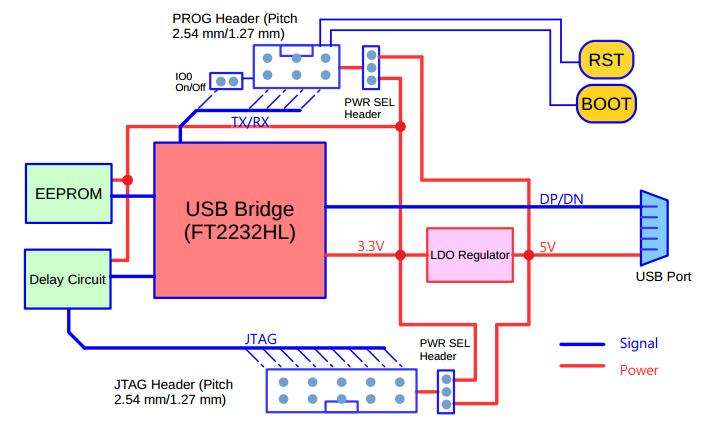

1. ESP-Prog is a development and debugging tool with automatic download firmware, serial communication, JTAG online debugging and other functions. The automatic download firmware and serial communication functions are available for the ESP8266 and ESP32 platforms, and the JTAG in-circuit debugging function is available for the ESP32 platform.
2. ESP-Prog is easy to use and can be connected to a computer with only one USB cable. The computer can recognize the download function and the two ports corresponding to the JTAG function.

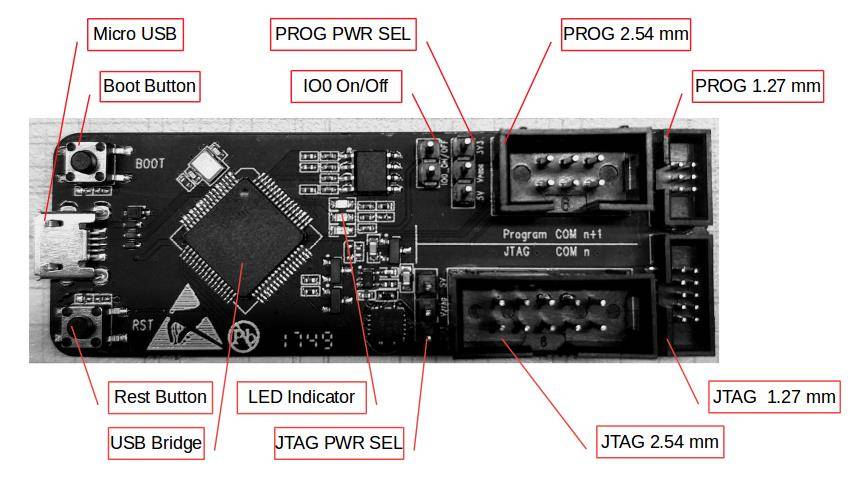

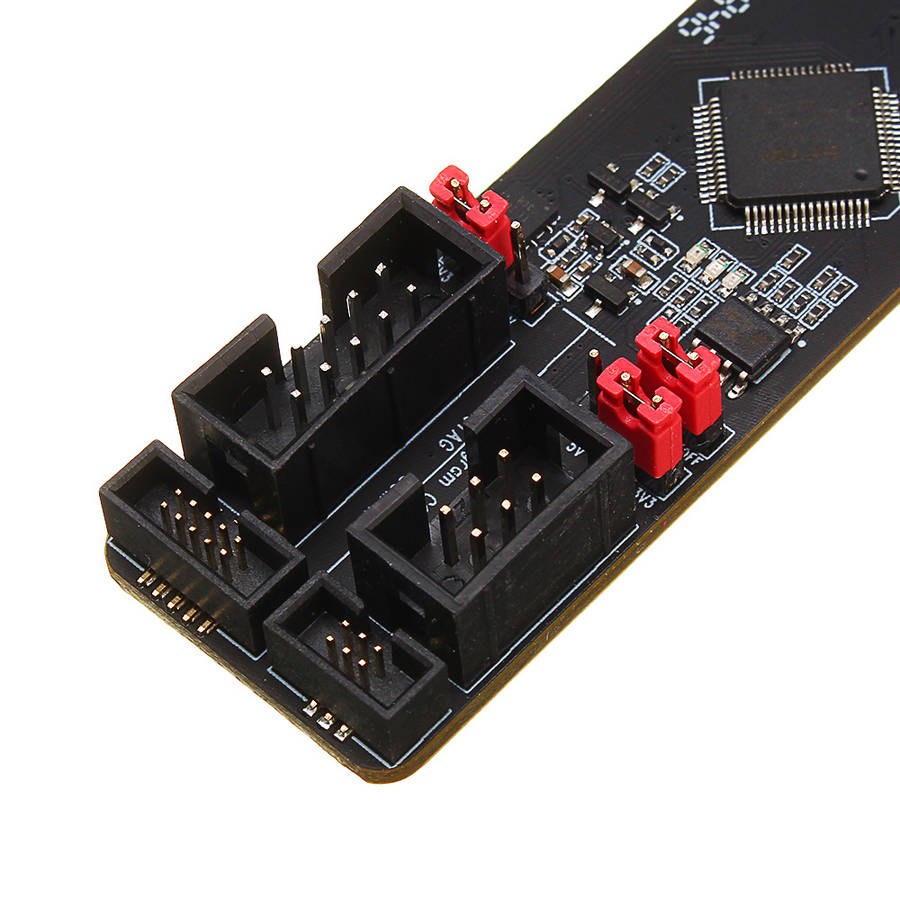

3. ESP-Prog can be connected to the user board using the cable. The connector is available in 2.54 mm and 1.27 mm pitch packages with a foolproof design. The user board is required to place the Program (6-Pin) and JTAG (10-Pin) connectors in the corresponding order.
4. Considering that the power supply voltage of different user boards may be different, the two interfaces of ESP-Prog can select 5V or 3.3V power supply through Pin Header, which has strong power compatibility.
Product description:

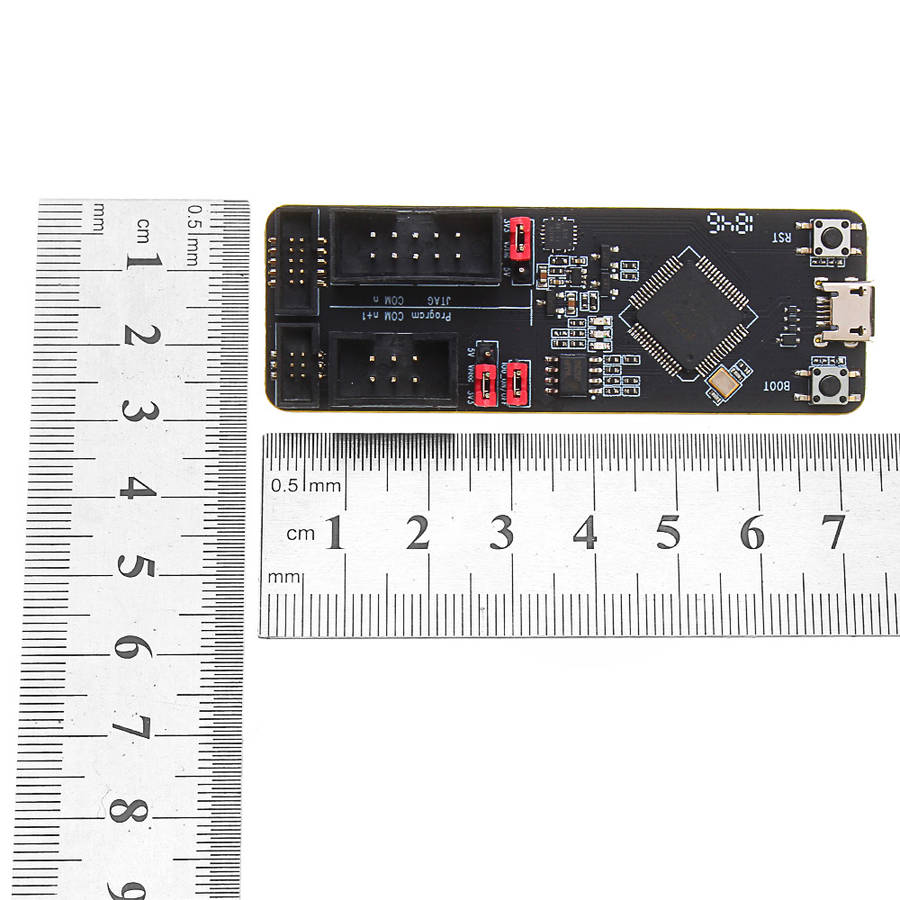

Size: 73.4mm * 25.1mm
Interface: Program; JTAG
Steps for usage:
1. Connect the ESP-Prog debug board and the USB port on the computer via a USB cable.
2. Install the FT2232HL chip driver on the computer side. The computer recognizes two ports, indicating that the driver has been successfully installed.
3. Use the Pin header to select the power supply output voltage on the Program/JTAG interface.

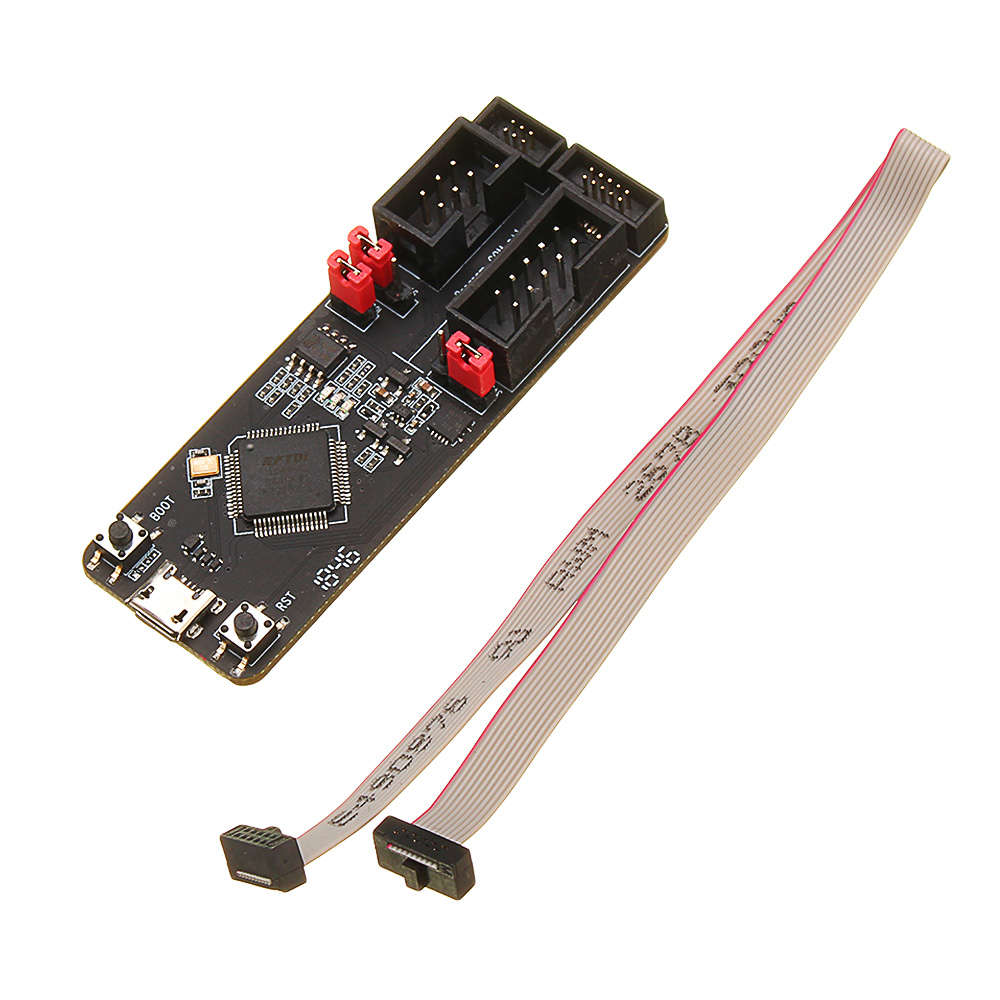

4. Connect the debug board and ESP product board with the gray cable.
5. Automatic download and JTAG debugging of the ESP32 product board can be achieved using official software tools or scripts.

More infomations: https://github.com/espressif/esp-iot-solution/blob/master/documents/evaluation_boards/ESP-Prog_guide_en.md
Package includes:
1 x ESP-Prog Development Board
















Espressif ESP-Prog Development Board JTAG Debug Program Downloader Compatible For ESP32 Espressif ESP-Prog Development Board JTAG Debug Program Downloader Compatible For ESP32 Espressif ESP-Prog Development Board JTAG Debug Program Downloader Compatible For ESP32
