Esquire USB Long Range Barcode Scanner Retail Box 1 year Limited Warranty
Product Overview

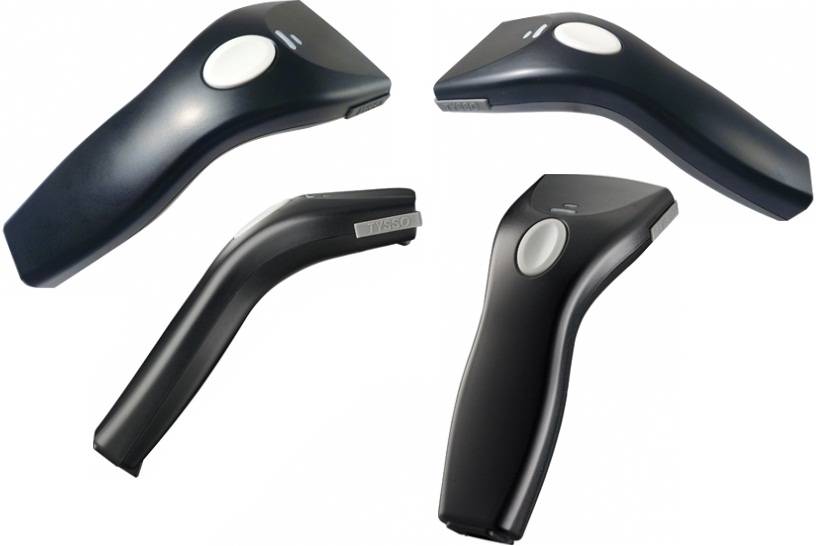

The CS-650-930-USB-B is a powerful long range barcode scanner. It is capable of identifying hard-to-read or small barcodes, and with a long reading distance. The CS-650-930-USB-B combines a stylish appearance and ergonomic design with easy operation. The CS-650-930-USB-B is ideal for inventory control, supply and stocking tasks to improve efficiency in your business. With a USB connection for power and communication, this barcode reader can enter data directly into most PC applications just as though entered via the keyboard.
The CS-650 CCD barcode scanner employs the 2500 pixel high-speed CCD sensor and is capable of long-range scan tasks, even the barcodes that are printed in less than perfect quality.
The outstanding scanning speed and decoding performance of the CS-650 make it an ideal solution for retail, automation, industrial or customer-service applications. And, the stylish yet ergonomic design makes the scanning task easier for extended use. With the advantages in speed, reliability and ease to use, CS-650 is the ideal choice for your daily data accessing applications.
Features
2500 Pixel CCD Barcode Scanner
Interface Type: USB
Optical Resolution: 0.1mm (4 mil)
Scan Speed: 100 scans/sec
Brand Name: Tysso
Model Number: CS-650
Reads up to 120mm wide barcodes at distance
LED Wavelength: 590nm
Scan Range: up to 21 cm
Specifications
Scan Rate-100 scans/sec
Sensor Type-2500 Pixel Linear CCD
Wavelength-590nm, Brilliant Yellow
Maximum Pitch Angle:±55 degrees
Minimum Skew Angle:±42 degrees
Depth of Field-210 mm (max.)
Resolution-0.1mm (4 mil) max.
System Interface-USB
Indicator-Buzzer and LED illumination (RED)
Power Input-5VDC ±5%
Power Consumption-260 mA (Operation Mode)/40 mA (Stanby Mode)
Shock Resistance-1.5m drop onto concrete
Weight-92.8 g with cable
Dimension(LxWxH:mm)-158 x 70 x 105
Cable Length-180 cm
Ambient Light-4500 Lux
Operating Temperature-0°C~50°C
Storage Temperature:-20°C~ 60°C
Storage Humidity:5% - 95% RH, non-condensing
Readable BarCode Symbologies
Code 39/32, Full ASCII Code 39, Code 128,Code 11
Interleaved 2/5, Industrial 2/5/IATA,Matrix 2/5,China Postage
Code93,MSI/PLESSEY,Codabar/NW7,Code 4
EAN-8/JAN-13,UPC-A,EAN-13/JAN-13,ISBN/ISSN, RSS-14
