Product details
Overview

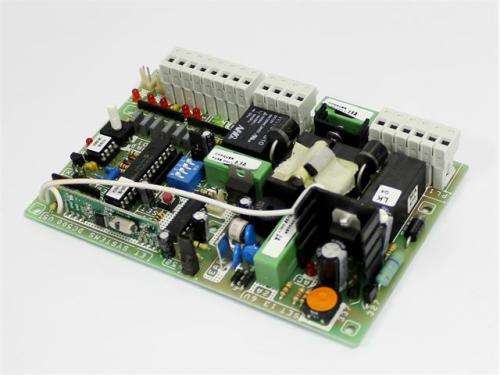

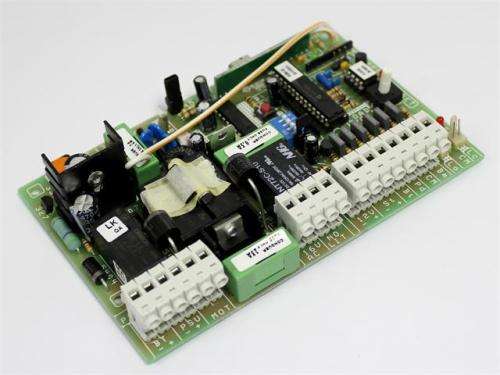

This is the product specific control card used in all the ET500 and ET500 PLUS sliding gate motors.
Features
- Condominium loop mode
- Courtesy light output
- External LED status indication
- On-board LED inputs indication
- Encoder monitoring LED indication
- Passive infra red access control option
- Pedestrian input
- On-board receiver for pedestrian and full opening
- Safety beams input
- Soft start / soft stop
- Reversing mode operation
Specifications
- Input Voltage
- 16Vac @ 1A (ET500 12V model)
- 16Vdc @ 18A (ET500 ACDC model)
- On Board Fuse Protection
- Battery charger circuit.
- Auxiliary supply output.
- Motor circuit.
- On board surge protection : The surge protection is on board, when used in a 12V model. (The ACDC model has the surge protection in the ACDC power-pack)
- Built In Battery Charger : Yes. 13.6Vdc @ peak 800mA.
- Motor Output : 12VDC protected @ peak 25A.
- Motor revolution counter (Encoder) : Yes. Magnetic hall effect sensor on board.
- Soft Start and Soft Stop : Yes. Selectable distance soft stop.
- Limit Switch Inputs : Yes, for both open and closed position.
- Safety Switch Input (BM) : Yes. (Normally open switched circuit)
- Button Trigger Input (BT) : Yes. Open and close gate fully.
- Pedestrian Trigger Input (PD) : Yes. Only opens gate partially for pedestrian traffic.
- Auxiliary Supply Output : 12VDC @ 500mA peak
- Status LED Output : Yes.
- Holiday lock out option Yes
- Party Mode/auto-close Override : Yes
- Simple auto-close mode : Yes
- Operating mode options (Selected via on board dipswitches)
- Standard mode.
- Simple auto-close mode.
- Condominium/loop auto-close mode.
- P.I.R.A.C. auto-close mode.
- Anti-crushing Safety Sensing : Yes. Selectable electronic sensing level.
- On board receiver : Yes.
- On board receiver functions
- Standard button trigger (BT) 25 remote button codes max.
- Pedestrian trigger 6 remote button codes max.
- Holiday lock out.
