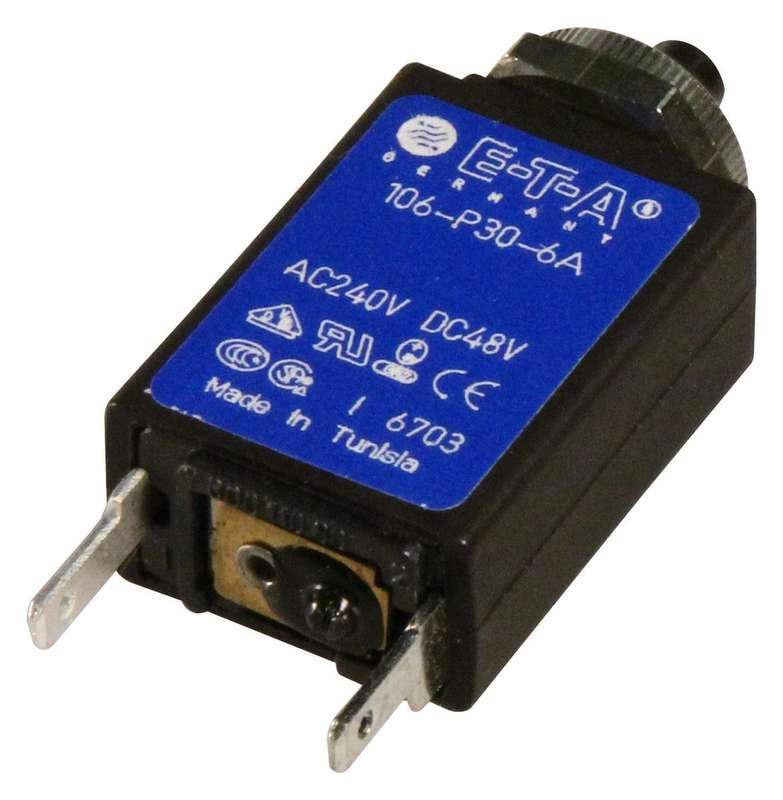

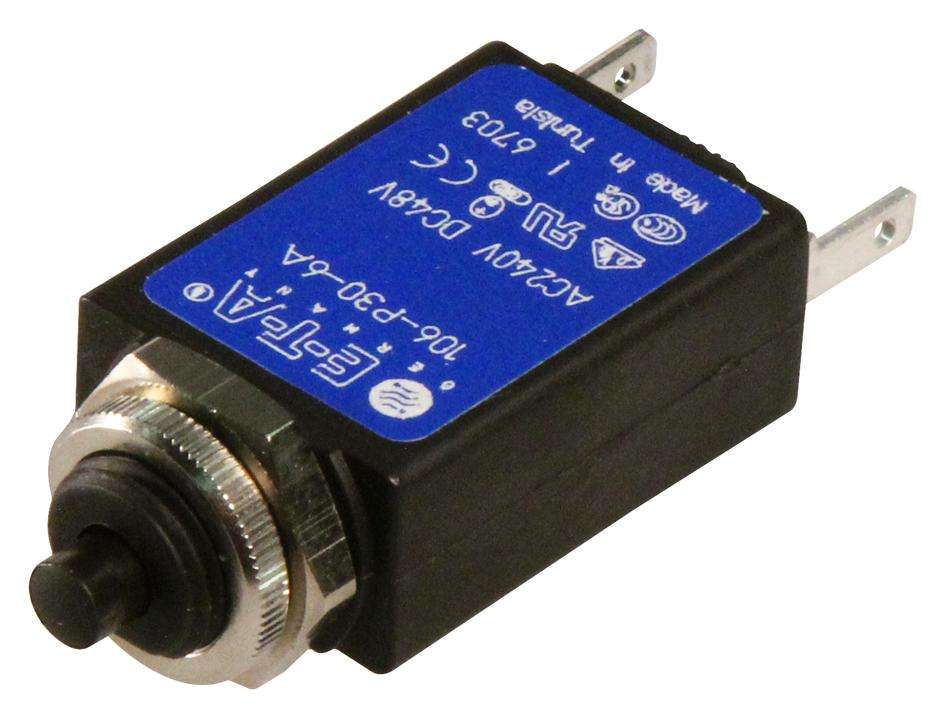

ETA (106-P30 6A) Thermal Circuit Breaker, 106, 6 A, 1 Pole, 48 VDC

Thermal Circuit Breaker, 106, 6 A, 1 Pole, 48 VDC, 240 VAC, PanelProduct Range: 106Current Rating: 6ANo. of Poles: 1 PoleVoltage Rating V DC: 48VDCVoltage Rating VAC: 240VACCircuit Breaker Mounting: PanelProduct OverviewThe 106-P30 6A is a 1-pole 6A Thermal Over-current Circuit Breaker with push toreset actuator, trip-free operation and snap action mechanism. The 106-P30series miniaturised circuit breaker has thread neck panel mounting with hex andknurled nut, blade terminals. It has breaking capacity of 2000A at 250VAC and200A at 48VDC voltage.-20 to +60°C Ambient temperature rangeIP40 (operating area), IP00 (terminal area) Protection ratingApplicationsMotor Drive & Control, Consumer Electronics, Industrial, Power Management,Aerospace, Defence, Military
