Ethernet Module for Electronics DIY, Development & Projects (Arduino Compatible)..!
Product Information
Overview

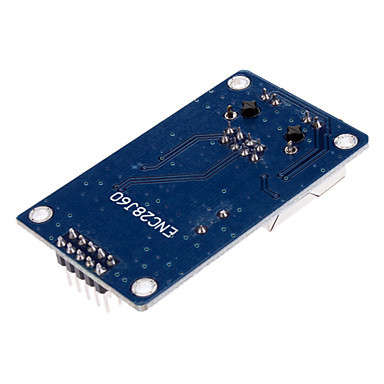

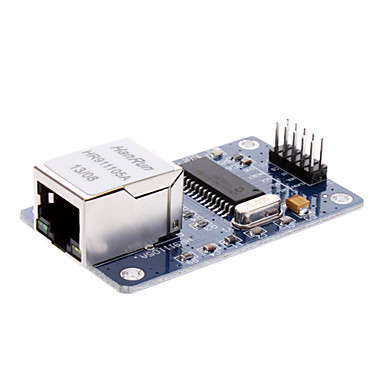

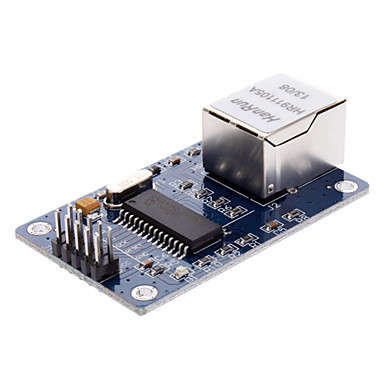

The ENC28J60 Ethernet Module utilizes the new Microchip ENC28J60 Stand-Alone Ethernet Controller IC featuring a host of features to handle most of the network protocol requirements. The board connects directly to most microcontrollers with a standard SPI interface with a transfer speed of up to 20MHz. With this Ethernet Shield, your Arduino board can be used to connect to the internet.
General Specs
Material: FR-4
ENC28J60-I/SO chipset
Crystal frequency: 25MHz
HR911105A network interface
Great for DIY project
Color: Blue
ENC28J60 Ethernet chip in SOP28 package
SPI Interface
Open-source TCP/IP protocol stack as an Arduino library
Web client application to use Arduino as a distributed network sensor
1x10 connector, can easily be connected to MCU
Built-in isolation transformer RJ45 connectors HR911102A
Power and Activity LED
Power Supply: 3.3 V max
25MHz Crystal
PCB size: 56 x 34mm
Dimensions (cm): 6.4 x 2.1 x 1.5
Weight (kg): 0.019
