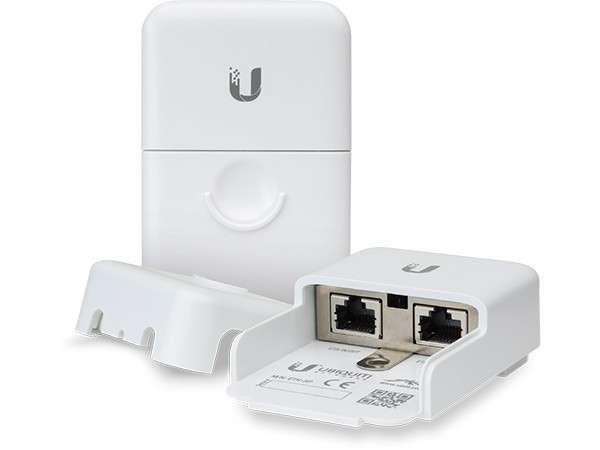

The ETH-SP is engineered to protect Power-over-Ethernet (PoE) or non-PoE devices with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility. Compatible with 10/100/1000 Mbps Networks
It is ideal for WISP Networks as damaging ESD attacks and surges will be absorbed by the ETH-SPs and safely discharged into the ground.
- Interface Connections: (2) RJ45 Female Connectors
- ESD/EMP Protection: Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/µs
- DC Spark-Over Voltage: 90V @ 100V/s
- Maximum Impulse Spark-over Voltage: 700V @ 1kV/µs
- Discharge Current: 5kA (Maximum), 0.5kA (Normal)
- Maximum Insulation Resistance: 1G ohm @ 50V
- Maximum Capacitance: 1.0 pF @ 1 MHz
- Data Line Protection: RJ45 10/100/1000 Ethernet
- IEEE 802.3af PoE Support: Yes
- Shock and Vibration Certification: ETSI300-019-1.4 Standard
- Operating Temperature: -30 to 65° C
- Operating Humidity: 10 to 90% Noncondensing
- Dimensions: 91 x 61 x 32.5 mm
- Weight: 80 g
