Ethernet To Rs232/Rs485 Convertors

Ethernet To Rs232/Rs485 Convertors

2 available / new
Only 2 left – grab it before it’s gone!
R643.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
There are various locker and counter collection points across South Africa.
View locations
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Warranty Type: Dealer 6-12 MONTHS
Get it now, pay later

Product details

Condition
New
Location
South Africa
Bob Shop ID
642681936

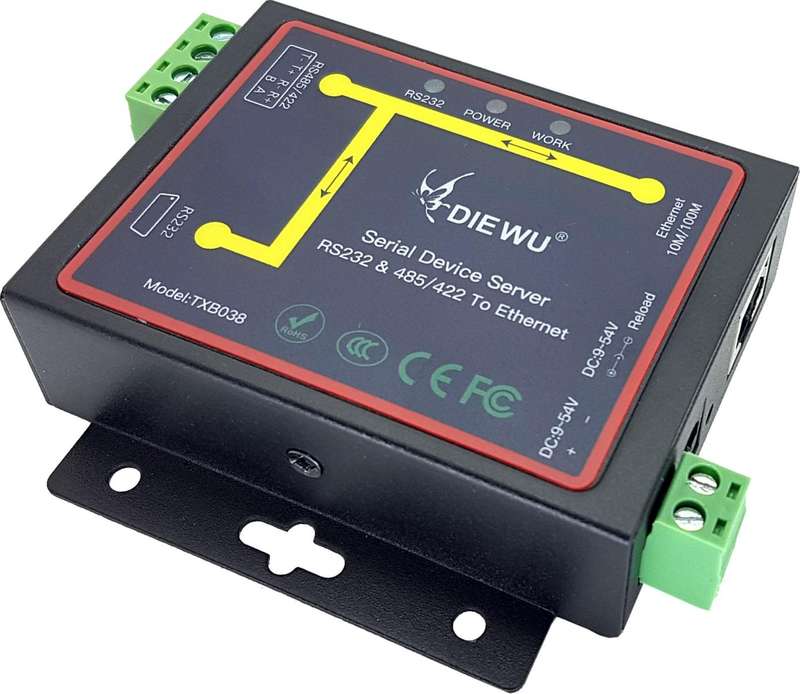

ETHERNET TO RS232/RS485 - TXB038

Ethernet To Serial Device

Product specification

Model Number: TXI038

Chipset: IP210

Port Number: 1 Port 10/100M Auto MDI-MDIX RJ45,1 Port RS232,1port RS485/422

Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3az

Network Media: 10Base-T,Cat3 or above UTP,10Base-Tx,Cat5 UTP

Data Rate: 10/100M

Forwarding Rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps

LED Indicator: Link/Act, Power, System, TX/RX

Baud Rate: 110bps - 256000bps

Operation Modes: TCP Server, TCP Client, UDP

Dimension: 86 x 84 x 25mm

Power Input: DC9V-54V

Power Consumption: Max1.8W

Environment

Operating Temperature: -10 ?-55 ?

Relative Humidity: 10%-90%(non-condensing)

Storage Temperature: -40?-85?

Relative Humidity: 5%-90%(non-condensing)

Other function

RS485 Support full Duplex and half Duplex

Build Load Default Key

Device Default Parameters

ID: Admin

Password: System

IP Address: 192.168.2.1

Operation Mode: TCP server

Transmission Mode: RS232

Baud Rate: 57600bps

UART Parameters: 57600,8,N,1

Local Port

TCP:23

UDP:21

Load Default

Power off the Device

Hold the Load Default Button

Power on the Device, hold the Button for 10 seconds, then release Default Button
