ETHERNET TO RS232/RS485

ETHERNET TO RS232/RS485

48 available / new
R597.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 5 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
TXB038
Bob Shop ID
639886622

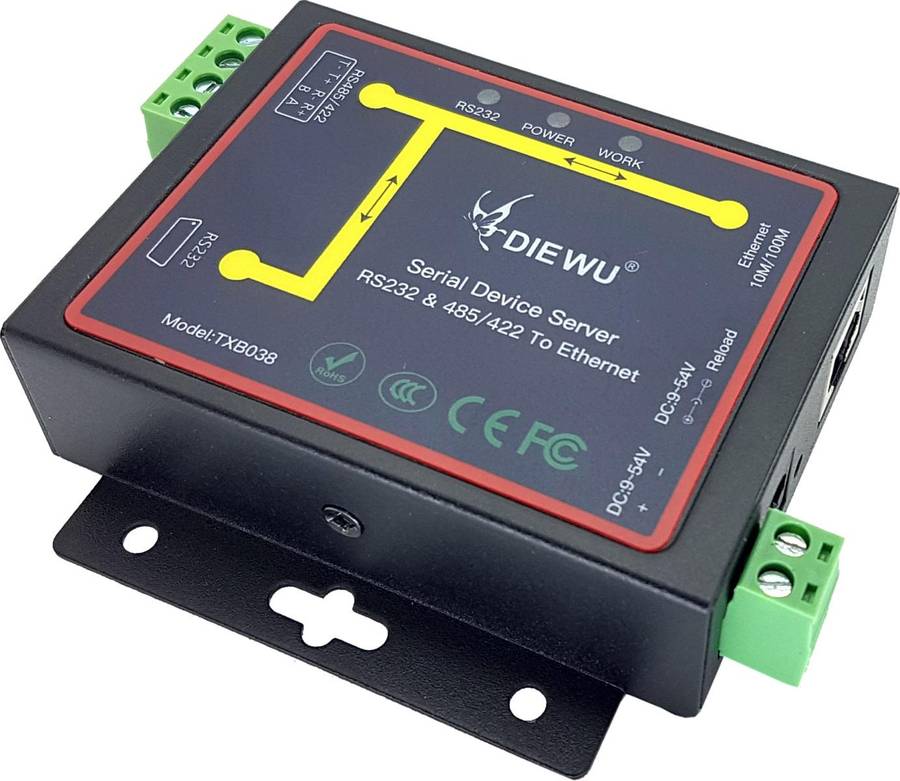

ETHERNET TO RS232/RS485 - TXB038

Ethernet To Serial Device

Product specification

Model Number: TXI038

Chipset: IP210

Port Number: 1 Port 10/100M Auto MDI-MDIX RJ45,1 Port RS232,1port RS485/422

Standard: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3az

Network Media: 10Base-T,Cat3 or above UTP,10Base-Tx,Cat5 UTP

Data Rate: 10/100M

Forwarding Rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps

LED Indicator: Link/Act, Power, System, TX/RX

Baud Rate: 110bps - 256000bps

Operation Modes: TCP Server, TCP Client, UDP

Dimension: 86 x 84 x 25mm

Power Input: DC9V-54V

Power Consumption: Max1.8W

Environment

Operating Temperature: -10 ?-55 ?

Relative Humidity: 10%-90%(non-condensing)

Storage Temperature: -40?-85?

Relative Humidity: 5%-90%(non-condensing)

Other function

RS485 Support full Duplex and half Duplex

Build Load Default Key

Device Default Parameters

ID: Admin

Password: System

IP Address: 192.168.2.1

Operation Mode: TCP server

Transmission Mode: RS232

Baud Rate: 57600bps

UART Parameters: 57600,8,N,1

Local Port

TCP:23

UDP:21

Load Default

Power off the Device

Hold the Load Default Button

Power on the Device, hold the Button for 10 seconds, then release Default Button
