Overview:
a

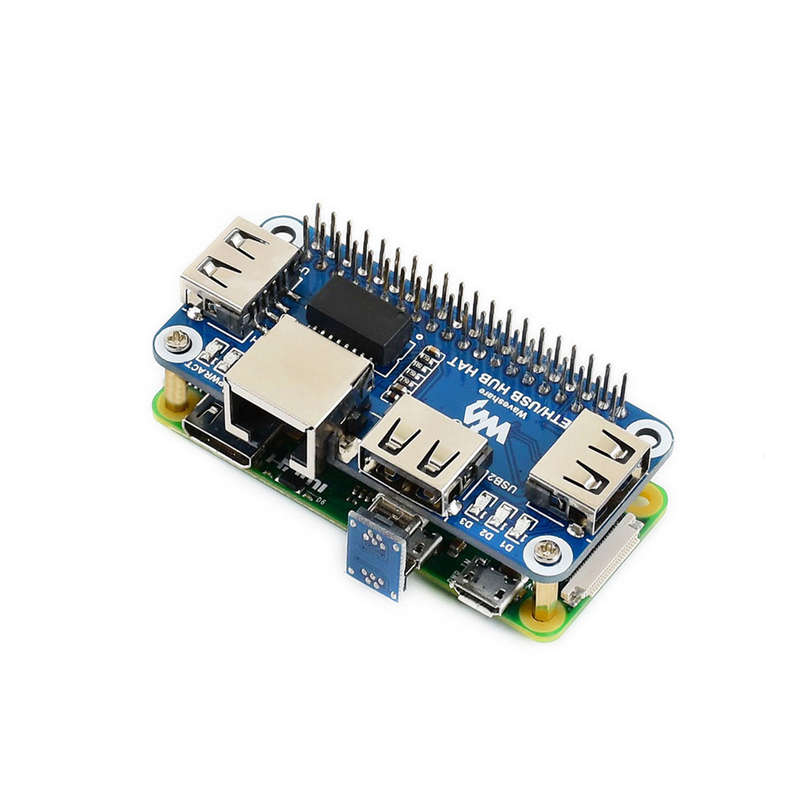

This Raspberry Pi hub HAT provides more USB capability to your Pi, plus a RJ45 Ethernet port, which is great when you need a stable wired Ethernet connection.
It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.
Features:
a
3x USB ports, compatible with USB2.0/1.1
1x RJ45 10/100M port, based on the RTL8152B Ethernet chip
Onboard multi indicators, for monitoring the status of power, Ethernet, and each USB port
Specifications:
a
Operating voltage: 5V

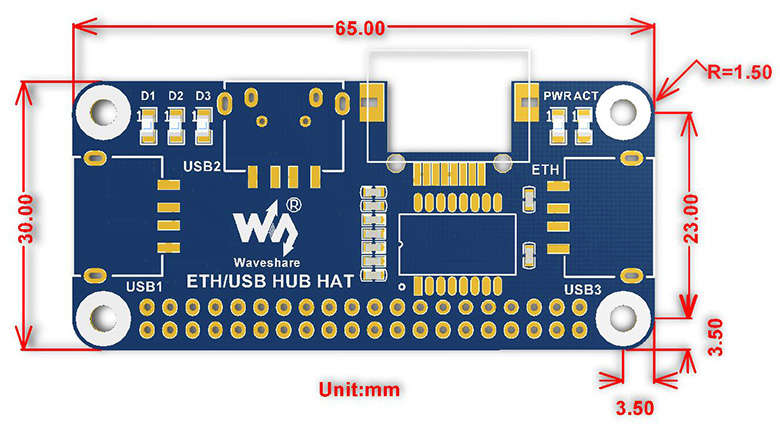

Dimension: 65mm 30mm
Mounting hole size: 3.0mm
a
a
a
aHow to use it
a Insert the ETH/USB HUB HAT to Raspberry Pi. Connect USB interface of Raspberry Pi to micro USB interface of ETH/USB HUB HAT
a Connect Network cable to RJ45 interface of ETH/USB HUB HAT
a Power on Raspberry Pi. PWR indicator lights on and ACT indicator is flashing. Now you can check the network and USB ports
a When USB devices are connected to USB1~USB3 ports, related LED D1-D3 light on
a

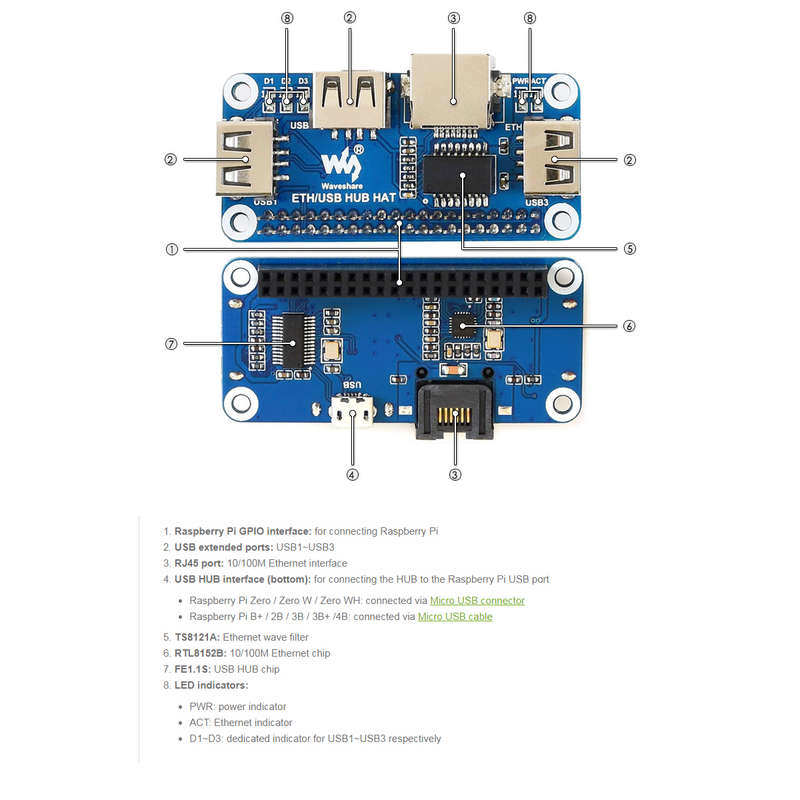

aInterfaces:
SYMBOL | Description |
---|---|
USB | USB interface, should be connected to USB port of Raspberry Pi |
USB1~USB3 | Extended USB ports, can be connected to external USB devices |
ETH | RJ45 port, can be connect to wired network |
