Description:
FNIRSI-1013D is a full-featured, highly practical, cost-effective dual-channel flat-panel oscilloscope launched by FNIRSI for the maintenance and R & D industry; this oscilloscope has a real-time sampling rate of 1GSa / s and an analog bandwidth of 100MHz * 2 . With complete trigger function (single / normal / automatic), it can be used freely for periodic analog signals or non-periodic digital signals; the built-in high-voltage protection module can tolerate a continuous voltage of up to 400V.
Features:
1Intelligent anti-burn1X Can withstand up to 400V withstand voltage
2100MHz analog bandwidth at 1GSa/s sampling rate1X = 5MHz10X = 100MHz
3Fully fit 7 inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast
4Capacitive touch screen, the same as the touch mode of modern mobile, is not a resistive touch screen with ancient nail operation
5High measurement voltage range, 1X can measure 0 ~ 40 V, 10X can measure 0 ~ 400V100X can measure 0 ~ 4000V
6Up to 12 parameters measurementVPPVPVmaxVminVavgVrmsFrequentDuty+Duty-Time+Time-Period
7Cursor measurement function, it is convenient to manually measure the period and frequency and voltage
8Complete triggering function (single, normal, automatic)
9At any time, the waveform display (suspend function) is frozen
10Equipped with high efficiency One-button AUTO
11One-button waveform storage and screenshot
12Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data
13Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page turning, deletion and waveform zooming in, zooming out, moving, etc.
14Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis
15Lissajous figures graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals
16FFT display function, can analyze the spectral characteristics of the signal
17Built in 6000mAh rechargeable lithium batteryFully charged for 4 hours of continuous use at the highest screen brightness
18Memory compression technology, waveform refresh screen does not flicker
19Screen brightness adjustment
20Background grid brightness adjustment
21easy to carry
Specification:
Analog bandwidth: 100MHz * 2
Number of channels: 2 channels
Maximum real time sampling rate: 1GSa/s
Vertical sensitivity: 50 mV/div ~ 500 V/div
Horizontal time base range: 50S/div ~ 10nS/div
Maximum test voltage: 40 V (1X probe), 400 V (10X probe)
Storage depth: 240Kbit
Input resistance: 1M
ADC precision: 8bits
Coupling mode: AC/DC
Trigger mode: Single, Normal, Auto
Trigger edge: Rising edge/Falling edge
External trigger voltage 0 — 40 V
Display: 7 inch - 800*480
Operating: Capacitive touch screen + gesture
Extension portsUSB picture export
Power supply: 6000 mAh lithium battery
Size: 184mm x 124mm x 50mm
Total weight: 650g
Package Includes:
1 x FNIRSI-1013D Oscilloscope
2 x Matching 100MHz Probe1X and 10X
1 x 5V/2A ChargerInclude USB data line
1 x User Manual (English)

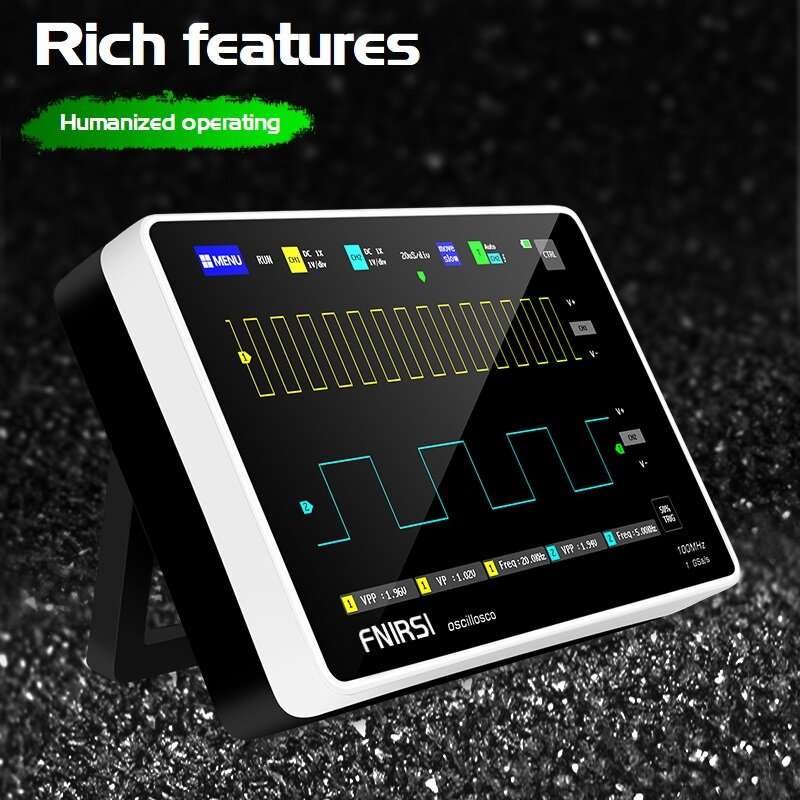

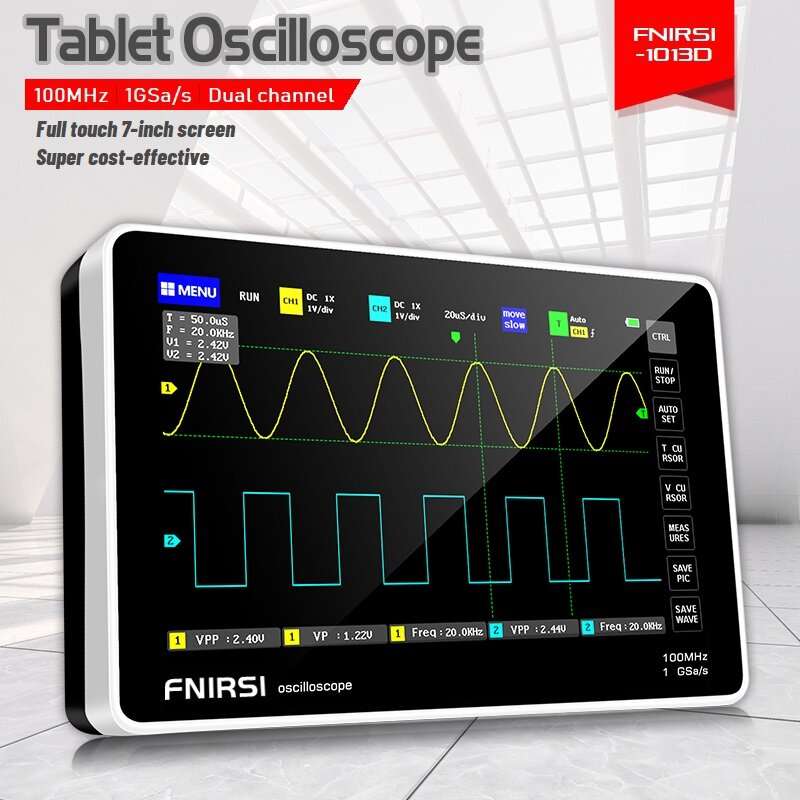

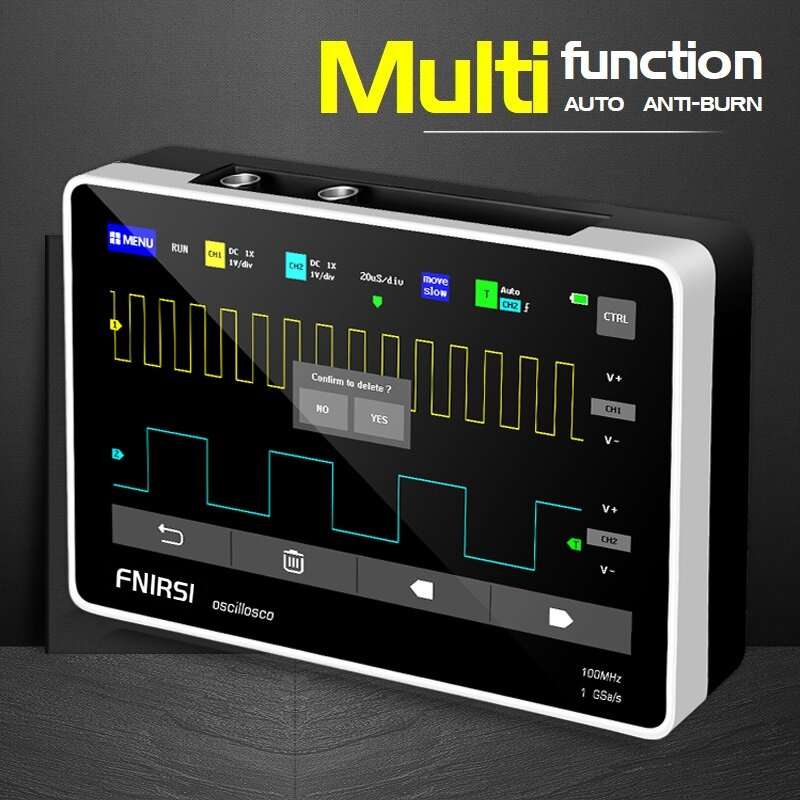

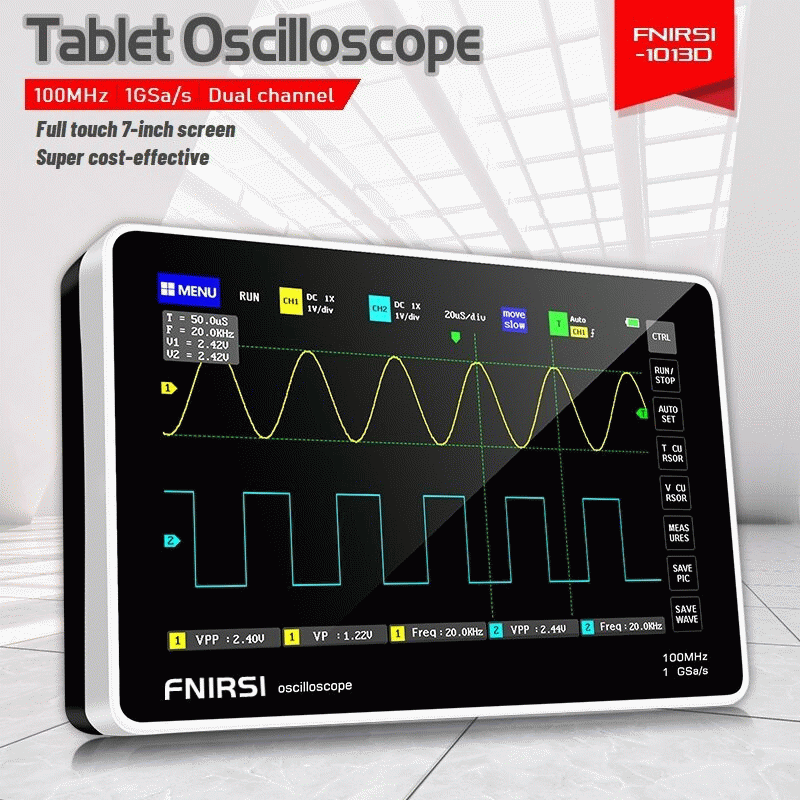

Details Picture:
