Specifications:
| Product Type | 15 IN 1 Type-C Docking Station |
| Brand | WAVLINK |
| Model | UG69PD13Pro |
| Color | Grey |
| Material | ABS Plastic |
| Input Interface | USB-C |

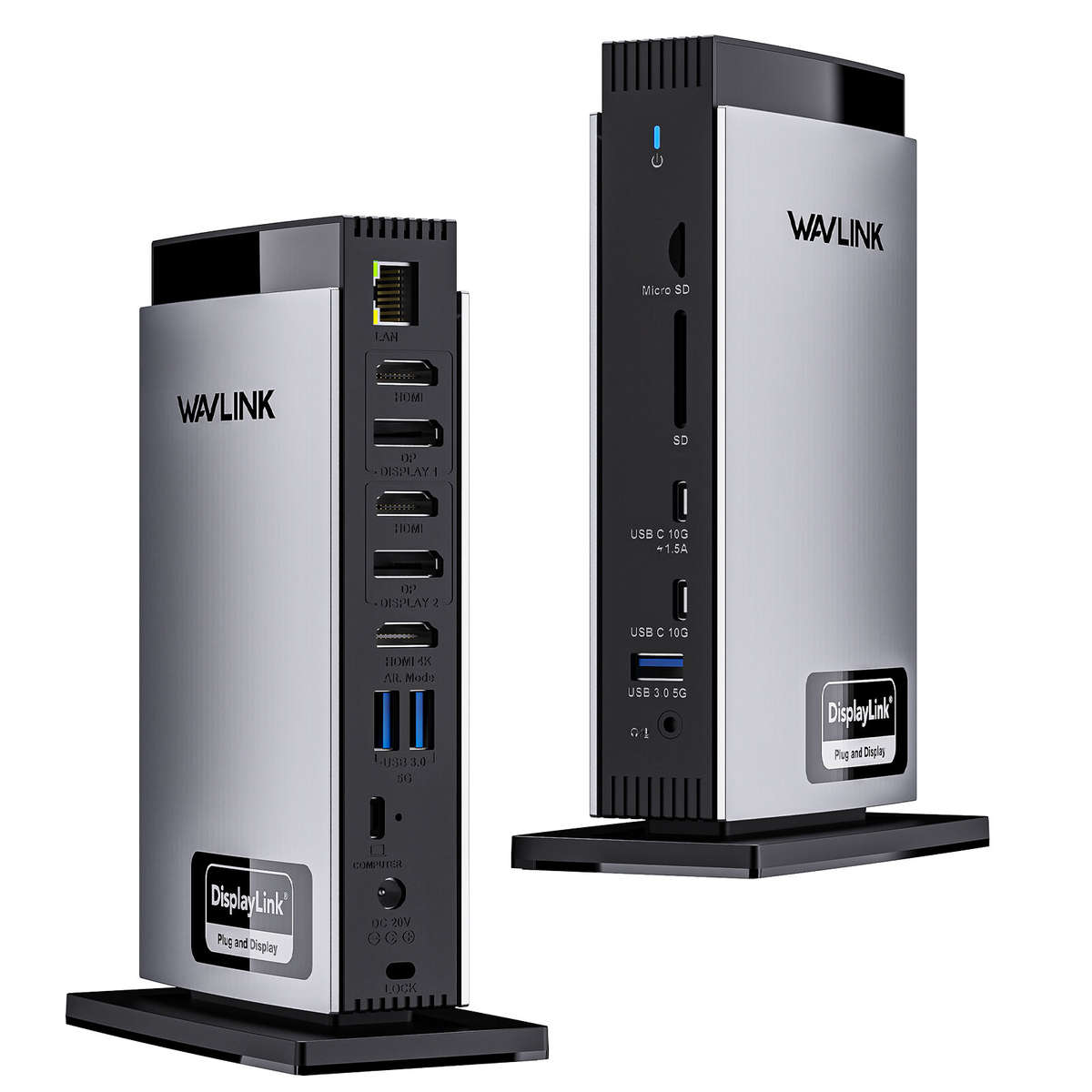

| Output Interface | Front Panel: 1x TF Card Slot, 1x SD Card Slot, 2 x USB-C 10Gbps, 1 x USB-A 5Gbps, 1 x 4-Pole Phone Jack;
Rear Panel: 1x RJ45(10/100/1000Mbps), 1 x Display 1(HD/D?P), 1 x Display 2(HD/D?P), 1 x 4K HMDI(Alt. Mode), 2 x USB-A 5Gbps, 1x USB-C (Host, PD100W), 1x DC IN (20V/6.5A, 130W) |
| Transmission Rate | 10Gbps |
| Cable Length | USB-C to C Cable: 100cm
Power Adapter Cable(Plug End): 150cm
Power Adapter Cable(Round Port): 120cm |
| Size | 12.2x6.6x18.5cm |
| Weight | 570g |
Features:
1. Working with USB-C, Thunderbolts & USB-A laptops.
2. 130W power adapter with maximum 100W upstream charging for your laptop via USB-C Host port.
3. One Alt Mode HD, two HD ports and two DisplayPorts support up to 4K at 60Hz video output, allowing you to connect multiple screens.
4. Two USB-C ports with transfer speeds up to 10Gbps; one of them provides BC 1.2 fast charging.
5. Three USB-A ports with transfer speeds up to 5Gbps; backward compatible with USB 2.0.
6. RJ-45 Gigabit Ethernet port supports stable and high-speed network connections and is backward compatible with 10/100Mbps Ethernet networks.
7. SD/Micro SD Slot supports integrated SD V3.0 Card Reader transferring rate at the speed of 104MB/s, ideal for copying any photos.
8. Integrated TRRS 4-pole Phone Jack for audio speaker out and mic in.
Package Include:
1x Docking Station
1x Power Supply Cable(Plug End)
1x Power Supply Cable(Round Port)
1x USB-C to C Cable
1x Manual
1x Package Box
Warm Tips:
1. Linux, Unix, iOS and for iPad operating systems are not supported.
2. Plug and play is not supported; Drivers need to be installed. Please visit displaylink.com website to download the latest drivers.
3. Please confirm whether the type-c port of your laptop supports charging and video output, otherwise the host charging function of the docking station and the HD (Alt. Mode) port may not work.

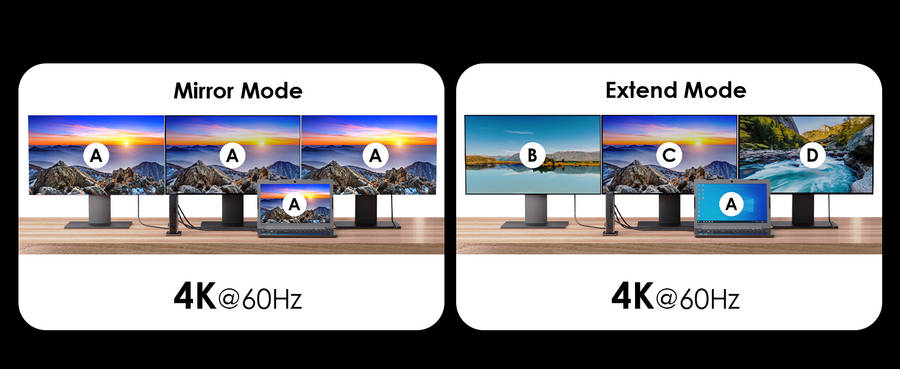

4.Android devices only support mirror mode, and the resolution is as high as 1080P.
5.Windows / for Mac OS(12 X-based or above) devices support rotating and flip modes.
6. D?P/HD in the same video stream (Display 1/2) cannot be used at the same time.
7. Playing HDCP copyrighted content from Blus-ray /Netflix/Prime/iTunes/Hulu and other platforms is not supported.
8.DISPLAY 1/2 port is suitable for office work, processing spreadsheets, documents or browsing web pages. Not suitable for playing games or other high-intensity tasks.
9. For Mac users, it is necessary to grant DisplayLink manager the right to record the screen.
