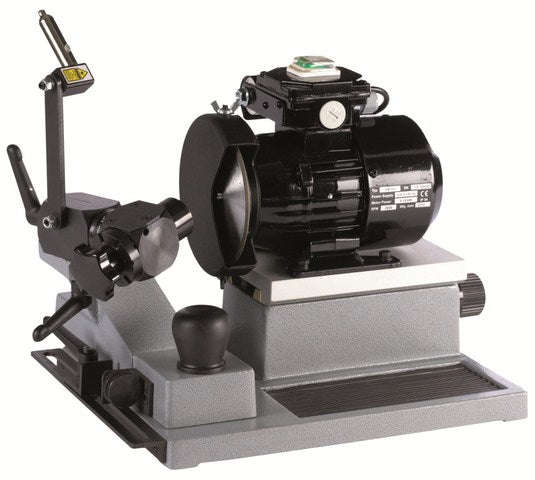

EUROBOOR CUTTER SHARPENER PLUS DISC ERM100/3
Sharpening Machine For HSS Cutters
250W / 28kg
The Euroboor ERM.100/3 sharpening machine sharpens HSS cuttersbetween 12mm, 1/2 inch and 44mm, 1 3/4 inch diameter in cutting depthsbetween 25mm, 1 inch and 55mm, 2 3/16 inch with great ease, The laserguided cutter alignment ensures correct positioning of the cutting edgeto the wheel where the easy angle adjustments makes alignment to theoriginal geometry easy and simple
Features:
For HSS cutters from 12 44mm diameter
For HSS cutters in cutting depths of 25 55mm
Easy angle adjustment
Simple alignment to original geometry
Laser guided cutter alignment
Motor positioning
Including CBN grinding wheel
CODE: HTC-ERM100
BARCODE: 6008075018993
HEIGHT: 35.0cm
LENGTH: 54.0cm
WIDTH: 35.5cm
WEIGHT: 32.85kg
MOTOR POWER: 250W
NOISE EMISSION: Less than 70 dBa
GRINDING DISC: 125mm
WHEEL BORE: 25mm
SHAFT BORE: 19.05mm Weldon
SPEED NO LOAD: 2 800 rpm
VOLTAGE: 110 120V / 60Hz
220 240V / 50 60Hz
