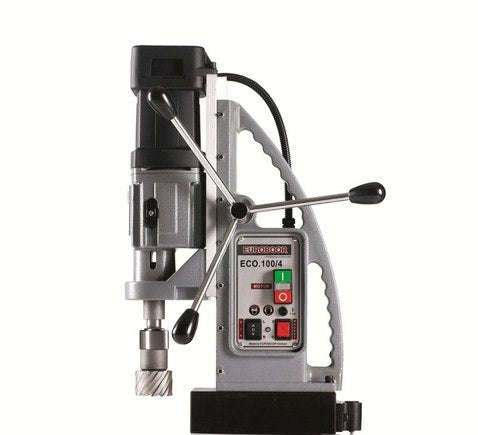

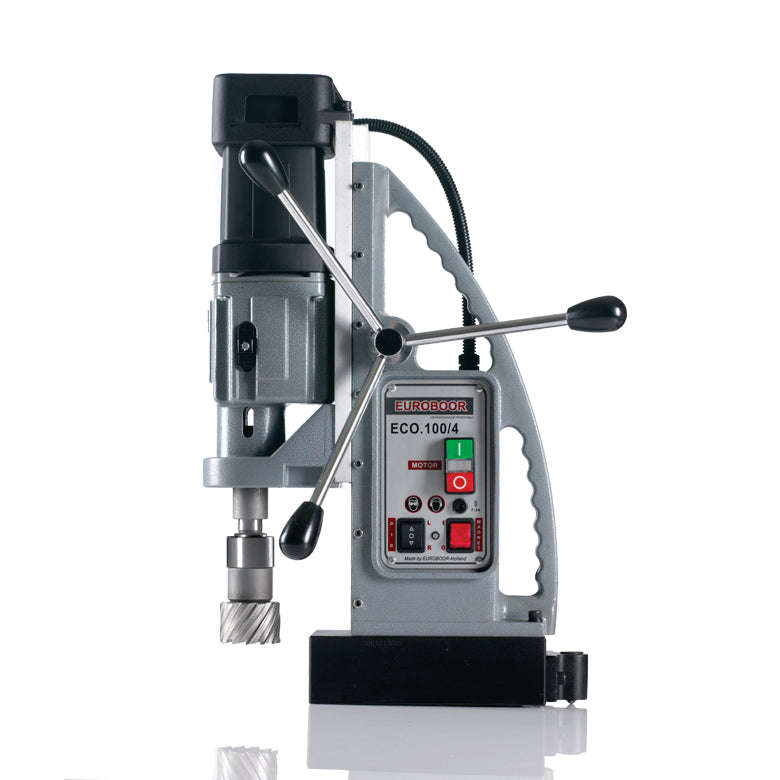

EUROBOOR MAGNETIC DRILL 100MM 1800W
Magnetic Drilling Machine
Heavy scale fabrication
Four-speed gearbox
Morse Taper 3 spindle with integrated tool cooling andlubrication
Strong dual coil CNC machined magnet
Features:
Adjustable speed
Torque control
Right and left rotation
Overheat protection
Magnet LED indicator
Threading
CODE: HTC-ECO100-4
BARCODE: 8718375390153
HEIGHT: 75.0cm
LENGTH: 45.5cm
WIDTH: 22.0cm
WEIGHT: 37.18kg
ANNULAR CUTTING: 12 100mm diameter
TWIST DRILLING WELDON: 1 31.75mm diameter
COUNTERSINKING: 10 105mm diameter
THREADING: M3 M30
STROKE: 260mm
MAGNET L X W X H: 220 x 110 x 64mm
MAGNETIC FORCE: 3 000kg
MOTOR POWER: 1 900W
TOTAL POWER: 2 050W
SPEED NO LOAD: (i) 42 110 rpm, (ii) 65 190 rpm,
(iii) 140 400 rpm, (iv) 220 620 rpm
SPEED 1 900W LOAD: (i) 85 rpm, (ii) 152 rpm, (iii) 270 rpm,
(iv) 480 rpm
SPINDLE - WELDON: MT3 19.05mm, 3/4 inch
VOLTAGE: 110 120V / 60Hz
220 240V / 50 60Hz
