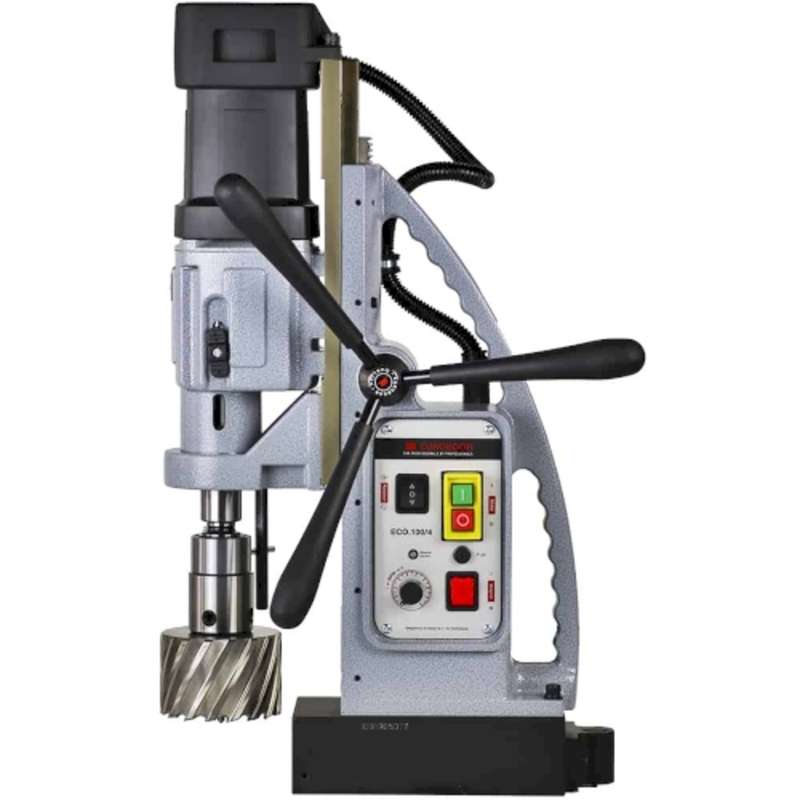

EUROBOOR MAGNETIC DRILL 100MM 1800W HTC-ECO100-4

The Euroboor ECO100/4 Magnetic Drill cuts holes up to Ø 4" (100 mm) and is particularly suitable for tapping.

This magnetic core drilling machine has an extremely powerful 17.3 A (1900 W) motor with a four-speed gearbox. The ECO.100/4 drilling machine benefits from a clockwise and counterclockwise rotating functionality and electronic speed adjustment. Euroboor also provides an extensive catalogue of spare parts for all their machines, look here for a list of ECO.100/4 spare parts.

FEATURES

Four-speed gearbox.
Particularly suitable for tapping.
(Counter) clockwise rotating functionality.
Electronic speed adjustment.
Overheat protection.
Brand

Euroboor
Annular Cutting Ø

12 100 mm
Countersinking Ø

10 105 mm
Twist Drilling Diameter Ø

1 31,75 mm
Tapping

M3 M30
Length

365 mm
Width

310 mm
Height

510 710 mm
Stroke

260 mm
Weight

26.5 kg
Magnet Dimensions

220 x 110 x 64 mm
Magnetic Force

3000 kg
Motor Power

1900 W
Total Power

2050 W
Speed | No Load

(Gear 1) 42 110 rpm, (Gear 2) 65 190 rpm, (Gear 3) 140 400 rpm, (Gear 4) 220 620 rpm
Speed | Full Load

(Gear 1) 85 rpm, (Gear 2) 152 rpm, (Gear 3) 270 rpm, (Gear 4) 480 rpm
Spindle | Weldon

MT3 19.05 mm
Voltage

220 240 V / 50 60 Hz

Euroboor ECO100/4 Magnetic Drill Includes: 1x ECO.100/4 Magnetic drilling machine.
1x safety guard.
3x handles.
1x hex key 1/8.
2x hex key 3/16.
1x lubrication system.
1x safety chain.
1x bottle (6,8 oz) of IBO.10 cutting oil.
1x arbor MT3 3/4 Weldon, including lubrication ring (IMC.30/19-N).
1x morse taper ejector drift key.
1x user manual.
1x safety ear protection.
1x safety goggles.
1x safety gloves.
