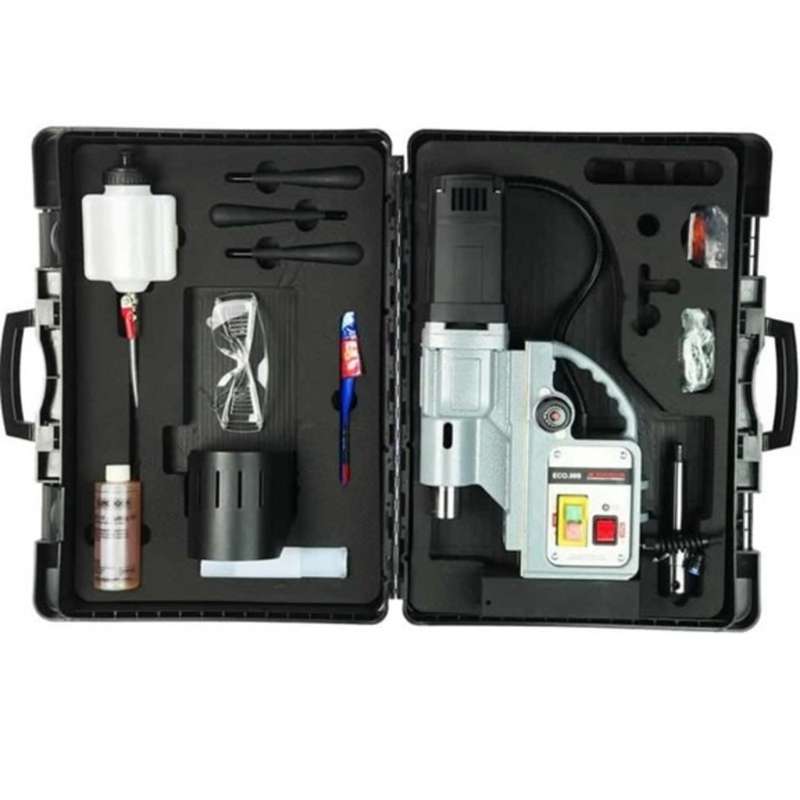

EUROBOOR | ECO 50-S Magnetic Base & Drill
The EUROBOOR ECO.50-S Magnetic Drill converts maximum power through its two-speed oil-lubricated gearbox. This improves motor efficiency and the lifetime of key components. This portable industrial magnetic core drilling machine has an integrated slide which ensures stable support, faster drilling times and more accurate hole sizing. This machine is ideal for large-scale fabrication.
FEATURES
The Euroboor ECO.50-S Magnetic Drill has a high-accuracy capstan hub.
Integrated slide and one-speed gearbox ensures high accuracy, minimal vibrations and an extended life cycle.
The high-precision height adjustment ensures low maintenance and minimal wear correction.
MT3 spindle with integrated tool-cooling and lubrication.
Magnet LED indicator.
Strong dual-coil CNC-machined magnet.
Annular Cutting Ø
12 50 mm
Countersinking Ø
10 55 mm
Twist Drilling Diameter Ø
1 23 mm
Length
320 mm
Width
200 mm
Height
445 615 mm
Stroke
170 mm
Weight
12 kg
Magnet Dimensions
160 x 80 x 42 mm
Motor Power
1,250 W
Total Power
1,300 W
Speed | No Load
(Gear 1) 380 rpm, (Gear 2) 690 rpm
Speed | Full Load
(Gear 1) 235 rpm, (Gear 2) 415 rpm
Spindle | Weldon
MT3 19.05 mm
Voltage
220 240 V / 50 60 Hz
