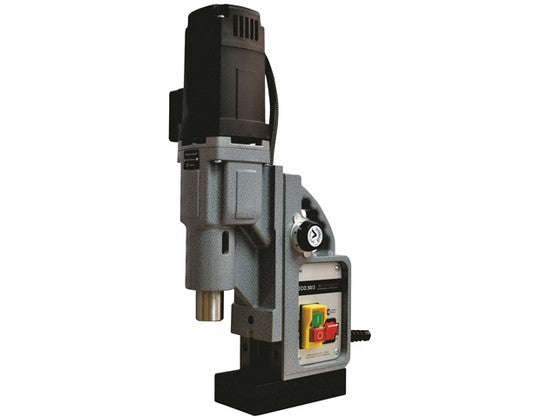

EUROBOOR MAGNETIC DRILL OIL BASED V2
Magnetic Drilling Machine
12 50mm diameter
12kg
The Euroboor ECO.50S magnetic core drilling machine converts maximumpower through its two-speed oil lubricated gearbox, This improves motorefficiency and lifetime of key components, This portable industrialmagnetic core drilling machine has an integrated slide which ensuresstable support, faster drilling times and more accurate hole sizing
Features:
Integrated slide for high accuracy, enlarged lifecycle and minimalvibration
High-precision height adjustment for low maintenance and minimal wearcorrection
CODE: HTC-ECO50-3
HEIGHT: 55.7cm
LENGTH: 42.5cm
WIDTH: 19.0cm
WEIGHT: 19.06kg
ANNULAR CUTTING: 12 50mm diameter
TWIST DRILLING WELDON: 1 23mm diameter
COUNTERSINKING: 10 55mm diameter
STROKE: 170mm
MAGNET L X W X H: 168 x 84 x 42mm
MAGNETIC FORCE: 1 700kg
MOTOR POWER: 1 250W
TOTAL POWER: 1 300W
SPEED NO LOAD: (i) 380 rpm, (ii) 690 rpm
SPEED LOAD 900W: (i) 235 rpm, (ii)415 rpm
SPINDLE: MT3 19.05mm
VOLTAGE: 220 240V / 50 - 60Hz
