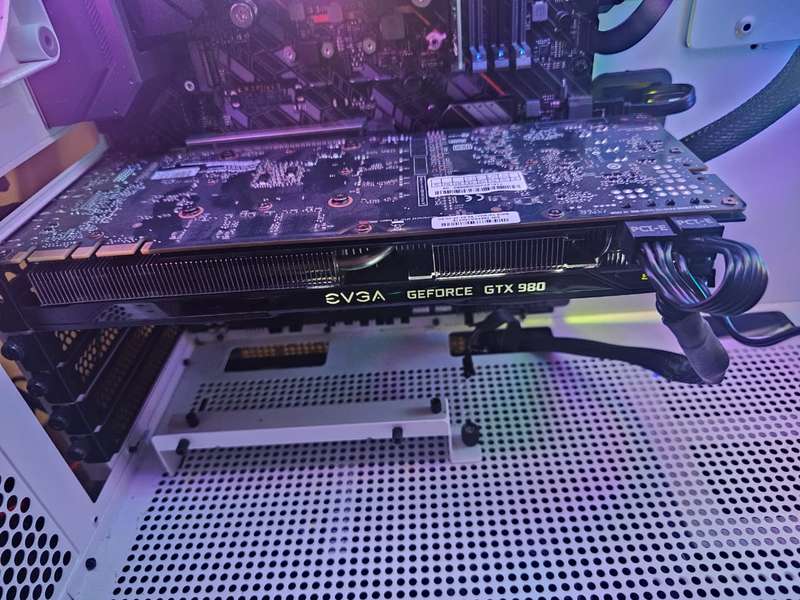

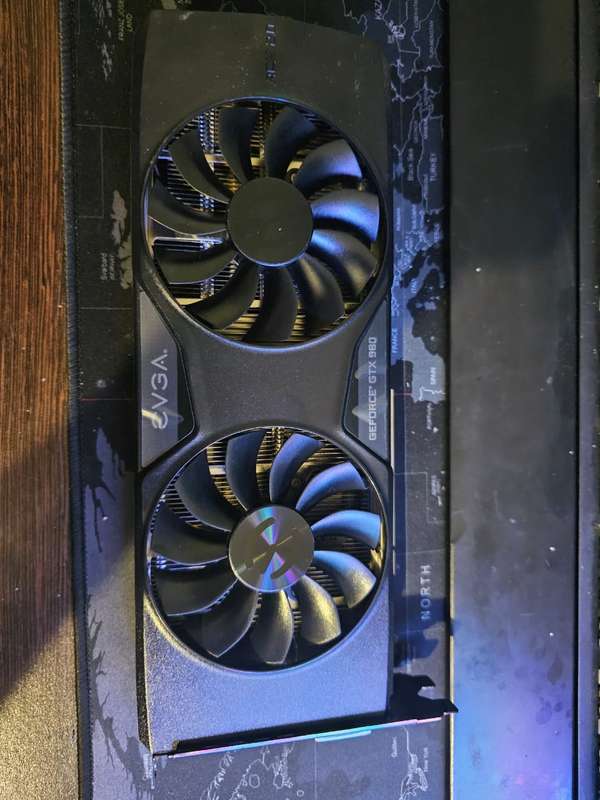

EVGA GTX 980

The GeForce GTX 980 was a high-end graphics card by NVIDIA, launched on September 19th, 2014. Built on the 28 nm process, and based on the GM204 graphics processor, in its GM204-400-A1 variant, the card supports DirectX 12. This ensures that all modern games will run on GeForce GTX 980. The GM204 graphics processor is a large chip with a die area of 398 mm² and 5,200 million transistors. It features 2048 shading units, 128 texture mapping units, and 64 ROPs. NVIDIA has paired 4 GB GDDR5 memory with the GeForce GTX 980, which are connected using a 256-bit memory interface. The GPU is operating at a frequency of 1127 MHz, which can be boosted up to 1216 MHz, memory is running at 1753 MHz (7 Gbps effective).

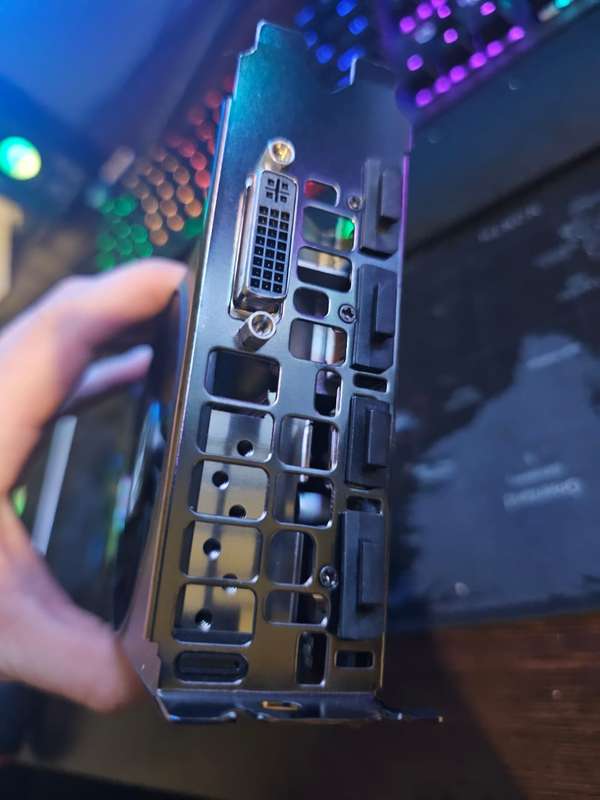

Being a dual-slot card, the NVIDIA GeForce GTX 980 draws power from 2x 6-pin power connectors, with power draw rated at 165 W maximum. Display outputs include: 1x DVI, 1x HDMI 2.0, 3x DisplayPort 1.2. GeForce GTX 980 is connected to the rest of the system using a PCI-Express 3.0 x16 interface. The card's dimensions are 267 mm x 111 mm x 40 mm, and it features a dual-slot cooling solution. Its price at launch was 549 US Dollars.
