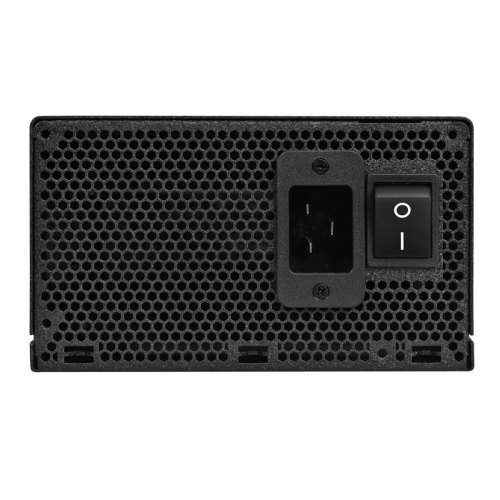

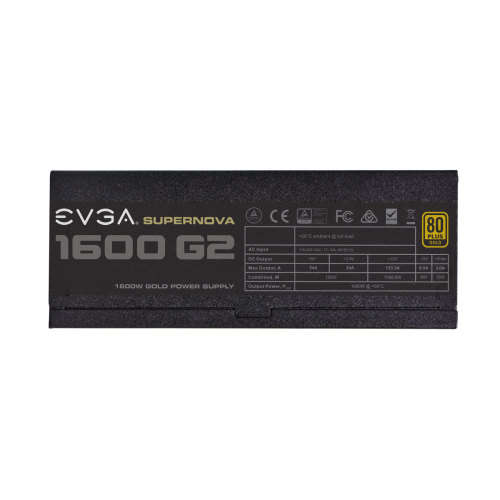

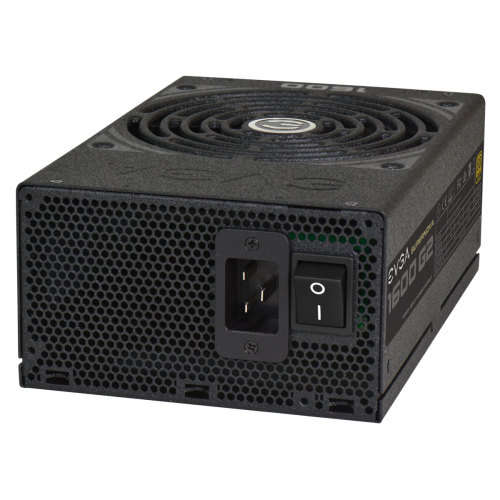

EVGA SuperNOVA 1600 G2 Power Supply
P/N: 120-G2-1600-X1
Introducing the EVGA SuperNOVA 1600 G2 power supply. This power supply raises the bar with 1600W of continuous power delivery and 90% (115VAC) / 92% (220VAC~240VAC) efficiency. A fully modular design reduces case clutter and 100% Japanese Capacitors ensures that only the absolute best components are used. What does that mean? The best stability, reliability, overclockability and unparalleled control. The EVGA SuperNOVA 1600 G2 is the ultimate tool to eliminate all system bottlenecks and achieve unrivaled performance
· Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
· 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
· Highest quality Japanese brand capacitors ensure long-term reliability
· Fully Modular to reduce clutter and improve airflow
· NVIDIA SLI & AMD Crossfire Ready
· Double Ball Bearing fan for exceptional reliability and quiet operation
· Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
CABLE LENGTH
ATX Cable | 1x 600mm (m) |
EPS Cable | 2x 750mm (m) |
PCIE Cable | 5x 750mm, 900mm (m) 4x 750mm (m) |
SATA Cable | 4x 550mm, 650mm, 750mm (m), 850mm (m) |
Four-Pin Peripheral Cable | 2x 550mm, 650mm, 750mm (m) |
Floppy Adapter | 2x 100mm |
AC Power | 1x 1800mm (m) |
Modular Cable Type | Full |

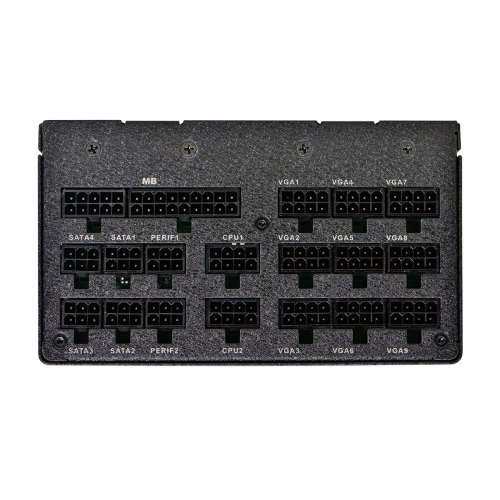

CONNECTOR QUANTITY
24 Pin ATX | 1x |
EPS (CPU) | 2x 8pin (4+4) |
PCIE | 9x 8pin (6+2), 5x 6pin |
SATA | 16x |
Four-Pin Peripheral | 6x |
Floppy | 2x |
INPUT
Input Voltage | 115 - 240 VAC |
AC Input | 17-10A |
Input Frequency Range | 50 - 60 Hz |
Efficiency | 90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical |
OUTPUT
Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
Max output | 24A | 24A | 133.3A | 3A | 0.5A |
133.3A |
120W | 1599.6W | 15W | 6W |
Total | 1600W @ +50C |
POWER SUPPLY with ONLY PCi-E & MB CABLES ONLY!!!!
Terms & Conditions
Please Read The Purchase Details Carefully!!!!
If the “BUY NOW” states “SECOND HAND” that means it’s not brand new & will have marks on it!!!
Your purchase is legally binding and will not be cancelled under no circumstances.
After selecting “BUY NOW” please complete your purchase.
Payment to be made within 48 Hours or negative rating will be given.
NO COLLECTIONS will be allowed
Please note NO RETURNS NO REFUNDS NO REPLACEMENT policy applies!!!
By selection the “BUY NOW” option you accept our T’s & C’s
