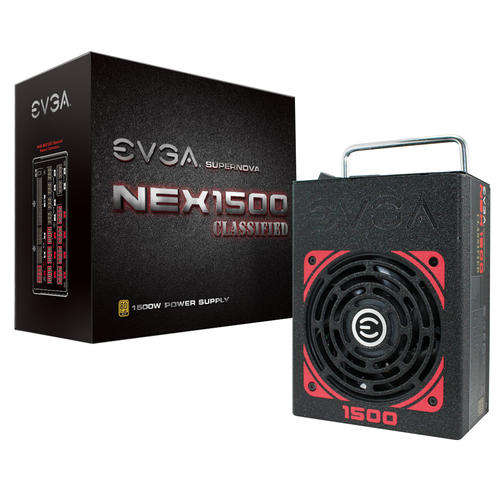

EVGA SuperNOVA NEX1500 Classified Power Supply
· SuperNOVA, exclusive power supply control and monitoring software
· Control and adjust +12V voltage for maximum overclocking potential
· Switch between single or multiple rails for ultimate control
· Overclock mode allows PSU to deliver up to 1650W with 230VAC input
· Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
· 80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
· Highest quality Japanese brand capacitors ensure long-term reliability
· Individually Sleeved Cables for outstanding looks and cable management
· Fully Modular to reduce clutter and improve airflow
· NVIDIA SLI & AMD Crossfire Ready
· Double Ball Bearing fan for exceptional reliability and quiet operation
· Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
· Premium 12AWG Power Cable
CABLE LENGTH
ATX Cable | 1x 750mm (m) |
EPS Cable | 1x 750mm, 900mm (m) 1x 600mm, 750mm, 900mm (m) |
PCIE Cable | 3x 750mm, 900mm (m) 5x 600mm, 750mm (m) |
SATA Cable | 1x 450mm, 550mm, 650mm (m) 1x 550mm, 650mm, 750mm (m) 2x 650mm, 750mm, 850mm (m) |
Four-Pin Peripheral Cable | 2x 550mm, 650mm, 750mm, 850mm (m) (no floppy) |
Floppy Adapter | 2x 150mm |
AC Power | 1x 1800mm (m) |
Modular Cable Type | Full |
CONNECTOR QUANTITY
24 Pin ATX | 1x |
EPS (CPU) | 2x 8pin |
PCIE | 16x 8pin (6+2) |
SATA | 12x |
Four-Pin Peripheral | 8x |
Floppy | 1x |
INPUT
Input Voltage | 100 - 240 VAC |
AC Input | 18-10A |
Input Frequency Range | 50 - 60 Hz |
Efficiency | 90% (115VAC) / 92% (220VAC~240VAC) or Higher Typical |
OUTPUT
Rail | +3.3V | +5V | +12V1 / +12V2 / +12V3 / +12V4 / +12V5 / +12V6 / +12V7 / +12V8 | +5Vsb | -12V |
Max output | 25A | 25A | 124A | 4A | 0.8A |
124A (133A OC Mode) |
150W | 1485W (1600W OC Mode) | 20W | 9.6W |
Total | 1500W (1650W OC Mode) @ +50C |
