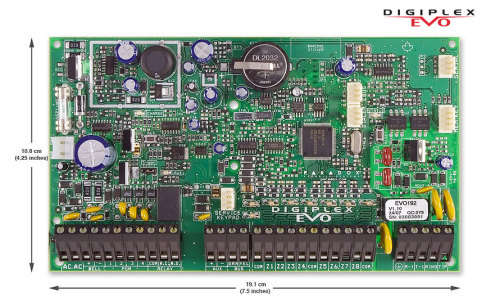

EVO192 Digiplex panel only.

8 on-board zones(ver 2.6 no ATZ zone doubling available)

Built-in access control features

Supports

PCS Series IP Module (IP150) and Voice Module (VDMP3)

In-field firmware upgrade via 307USB and Babyware

Compatible with NEware V4.0 or higher

Automatic Daylight Savings Time feature

PGM1 can be used as a 2-wire smoke input

Program remote controls using the master or installer

codes

Built-in real-time clock backup battery

1.7A switching power supply

1 supervised bell output auxiliary output and telephone line

Patented 2 opto coupler dialer circuit the most reliable dialer in the industry (US Patents 5751803RE39406)

Push button software reset (reset to default values and restart)

Push button to activate or deactivate the Auxiliary output

Zone doubling ATZ cannot be done on control panel zones 1 to 8

ZX8 expansion boards must be used on wired zones 9 to 192

32 PGM Outputs Max using PGM82
