Evolution .60 Engine

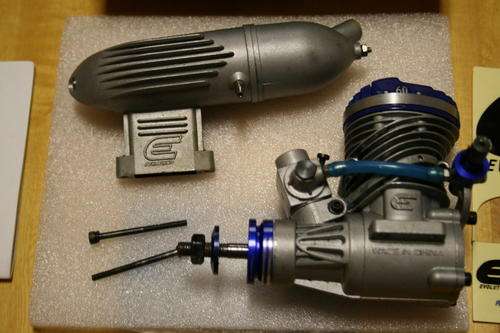

Evolution .60NX Engine with Muffler

The lightest-weight and most powerful .60-size engine in the industry.

Overview

This engine has only completed about 10 flights and is as good as new. The Evolution .60 is revolutionary for modelers demanding the most from their engines. This engine provides the performance of a .60-size engine in the case size of a .40-size engine, allowing modelers to put more power into smaller configurations. The .60 will truly be a “hot rod” and will provide modelers with speed and performance which have previously been unavailable in the .40- to .60-size sport market. For the modeler who doesn’t want to stop at the impressive speeds offered out of the box, this engine is designed to work with aftermarket pipe systems to provide the ultimate in model engine performance.

Features

• Smaller size and lighter weight than typical displacement .60 engines leads to a higher power-to-weight ratio.
• Fits smaller airframes where .60-size power was not previously available
• 7 ounces lighter than competitive .60-size engines
• Deisgned to make use of aftermarket tuned exhaust to enhance 40-size plane performance by increasing power.

Product Specifications

Type:2-Stroke Glow

Displacement:.60 cu in (9.73cc)

Bore:.95 in (24mm)

Stroke:.85 in (21.5mm)

Cylinders:Single

Total Weight:17.13 oz (487 g)

Engine (Only) Weight:13.93 oz (395 g )

Muffler Weight:3.2 oz (92 g)

Crankshaft Threads:1/4 x 28

Prop Range:10 x 7 to 13 x 6

RPM Range:2000 to 17000

Fuel:10% to 30% Nitro

Mounting Dimensions:44mm x 17.5mm

Muffler Type:Cast

Cylinder Type:ABC

Carb Type:Barrel, with two needles

Crank Type:Ball Bearing
