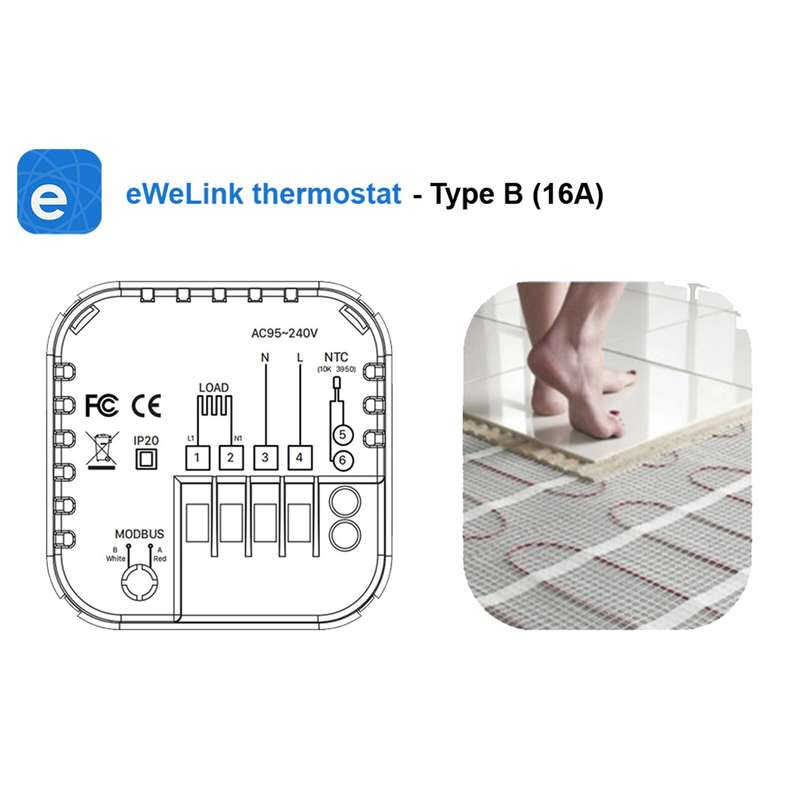

This eWeLink smart thermostat requires 230V AC (live and neutral wire) for its operation and can switch 230V AC live and neutral with a maximum 16A performance.
Like other eWeLink devices (Sonoff, SmartWise, KingArt, etc.), it must be connected to a local WiFi router by pairing it with a smartphone, and it connects to the factory eWeLink cloud via an internet connection, enabling it to be controlled remotely from a smartphone.
An eWeLink app-compatible, smart room thermostat with WiFi onboard. Type 'B' has live and neutral on its outputs and support max. 16A load, to control high-consumption devices such as an electric wall or floor heating.
It can also be both controlled from a smartphone and from the LED panel.
Thermostat Features

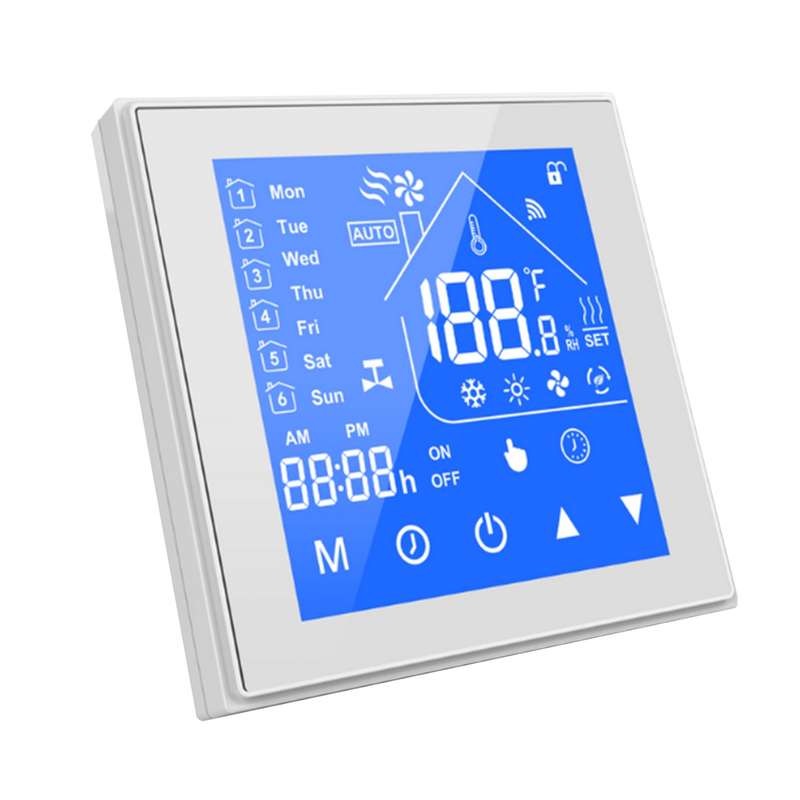

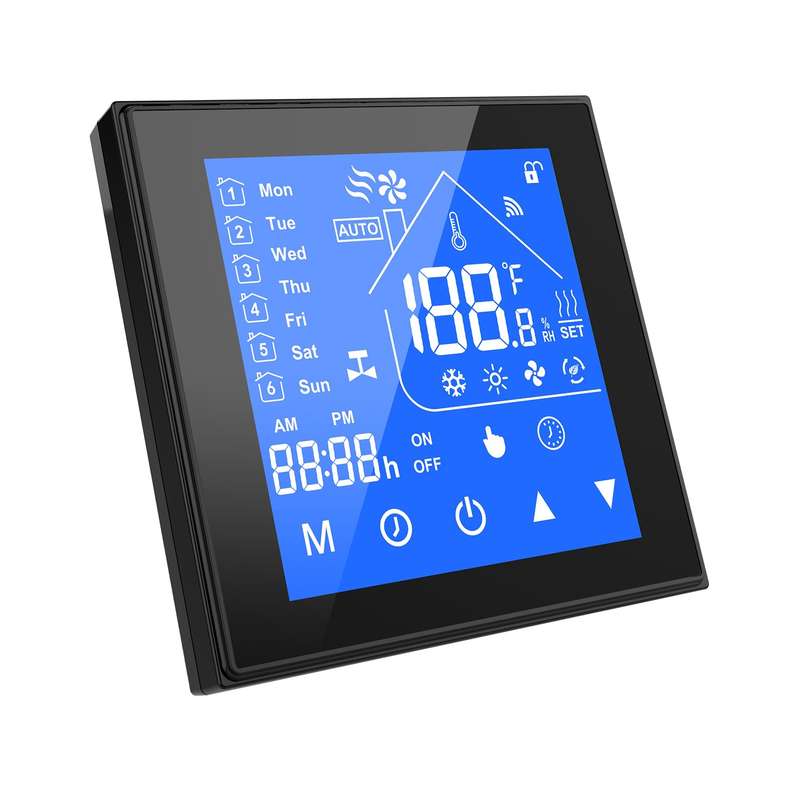

- Stylish LED display with capacitive touch buttons
- Six programmable times + temperatures for each day
- Operating modes: manual (temperature specified in the thermostat/app), programmed (automatic temperature according to the schedules set in the thermostat/app), and ECO (lower temperature for energy-saving use)
- Timer and temperature settings are stored in memory even in the event of a power failure
- 0.5°C accurate temperature detection and control
- Time zone setting option
- Child lock
- Adjustable target temperature: 5°C to 35°C
- Adjustable hysteresis (temperature deadlock), adjustable temperature calibration, adjustable overheating protection (for external thermometer)
- Temperature display: 5°C to 99°C
- Operating temperature range: 0°C to 45°C
- Operating relative humidity: 5% - 95%
- Power consumption: <1.5W
- Time fault tolerance: <1%
- Material: PC + ABS (fireproof)
- Water resistance: IP20
- Compatible with Amazon Echo, Google Home, and IFTTT
- Suggested wall socket: Kaiser octagonal socket
eWeLink Features
- Compatible with the eWeLink app - eWeLink devices, just like Sonoff and some other brands, all work with eWeLink and are compatible with each other.
- Free smartphone app for iOS and Android

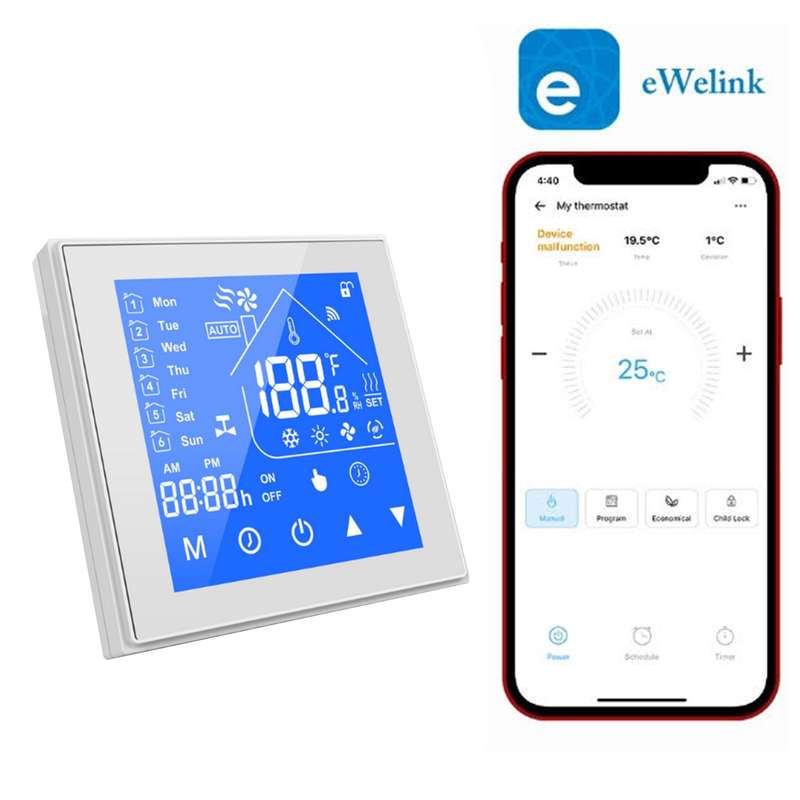

- Real-time status - The eWeLink app on a smartphone shows the thermostat's real-time status
- Remote control - The operation mode, manually set temperature, programmed temperature, and schedules can be changed from wherever you are.
- Shareable - Access to the app can be shared with family or others.
- Groups and rooms - Smart devices can be assigned to rooms for an easier overview or assigned to custom groups for group controls.
- Scenes - Cloud-based automation (IF ... THEN ...) can be created between multiple eWeLink-compatible devices (Sonoff, SmartWise, KingArt, etc.).
- Voice control - Can be controlled by Amazon Alexa, Google Assistant, and Google Nest.
Specifications (Technical Data)
- Zigbee Connection: No
- Controllable from the Internet: Yes
- RF/Radio Control (433.92MHz): No
- Remote Control Options: Wi-Fi
- Physical On/Off Button: Yes, capacitive touch buttons on the front panel
- Color: Black/White glass front panel
- Brand: eWeLink
- Local Area Network Mode: No
- Inputs for External Switch: No
- Device Power Supply: 100V-240V AC
- Wiring: 230V AC (live and neutral)
- Controlled Output: 100V-240V AC
- Maximum Load: 16A
- Overheat Protection: No
- Wi-Fi Connection: Yes
- Operating Temperature Range: 0°C — 45°C
- Wi-Fi Standards: 802.11 b/g/n (2.4GHz)
- Cloud Mode: Default mode is connecting to the eWeLink cloud
- Product Type: WiFi Smart Thermostat, eWeLink app compatible
- REST API Support: No
- MQTT Support: No
- Supported Integrations: In the case of eWeLink RF Bridge Pro: Amazon Echo, Echo Dot, Amazon Tap, Google Home, Google Nest, IFTTT (IFTTT integration with subscription, Premium feature)
- Smartphone App: Yes, eWeLink (Android, iOS)
- Voice Control: Amazon Alexa and Google Assistant compatible
- Schedulers, Timers: Yes, 6-6 time+temperature setting for each day of the week
- Water Resistance: IP20
- History: No
- Notification Functions: eWeLink app notification on smartphone about thermostat on/off
- Power Consumption: < 1.5W
- Type of Product: Thermostat
- Bluetooth Connection: No
- Weight: 0.21 kg
- Dimensions: 8.6 × 8.6 × 4.0 cm
