Description:
Brand Name: EWRF

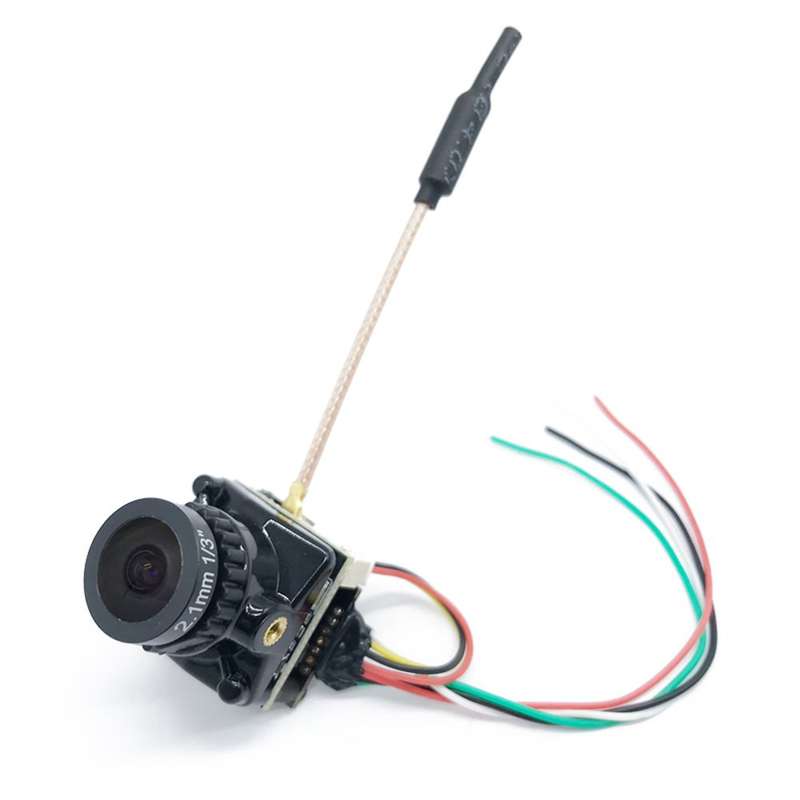

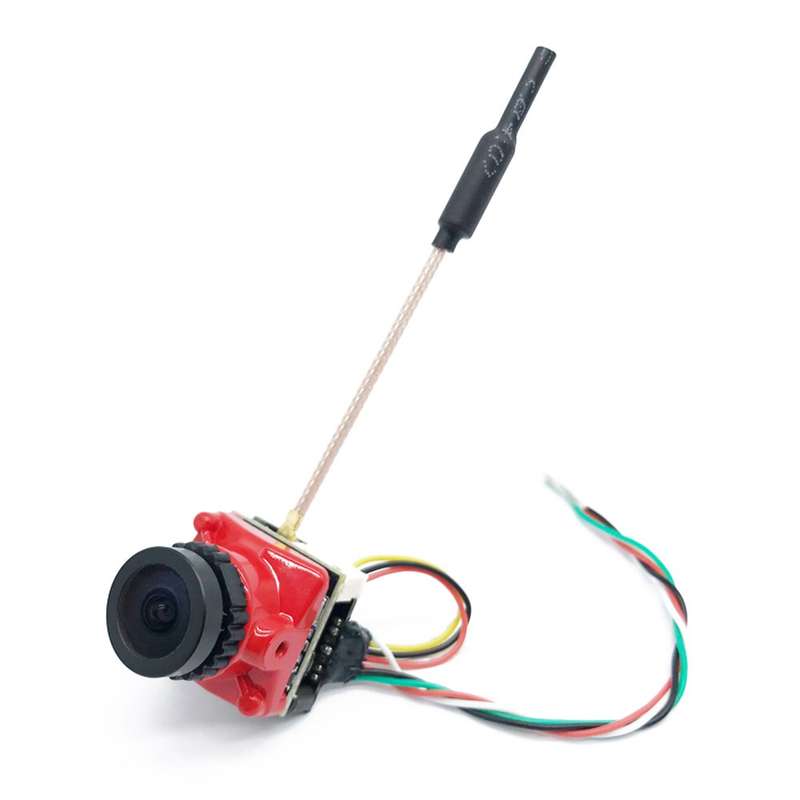

Item Name: e7087U VTX + 1200TVL 2.1mm Camera

Specifications of Camera: Lens: 2.1mm Color: Black, Red (optional) Image Sensor: 1/2.7 CMOS Resolution: 1200TVL TV System: NTSC/PAL Switchable Illumination: 0.05Lux BW: 0.001Lux (F1.2,50IRE, AGC ON) S/N Ratio: >50dB (AGC OFF) WDR: Support

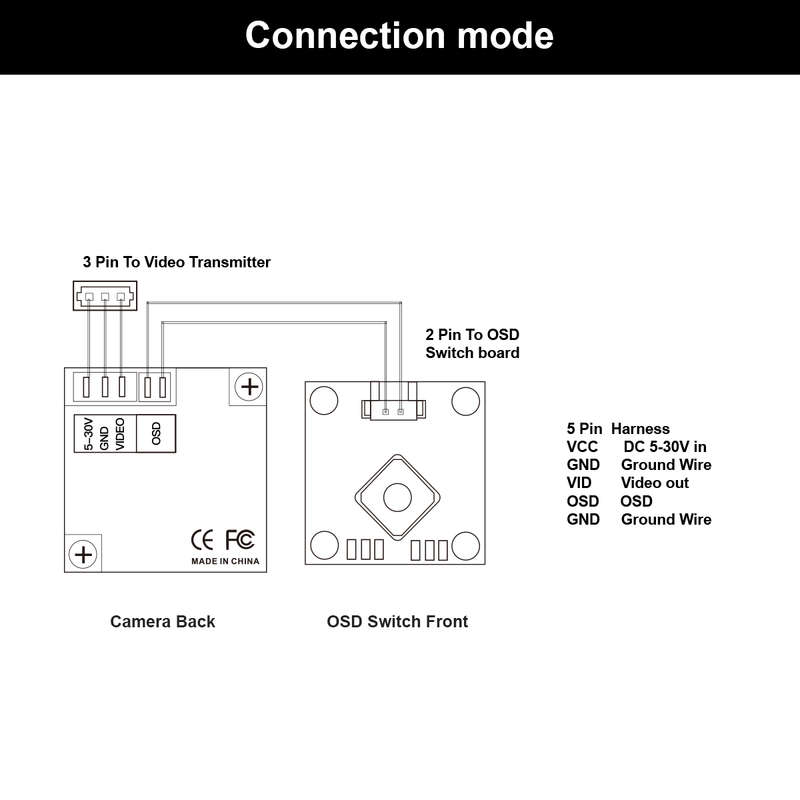

OSD Programming Board: Support
Language: Chinese/English/Italian/Russian Operating Voltage: 5 - 30V Operating Temperature: -10a?? ~ 50a??
Storage Temperature: -40a???~?60a??

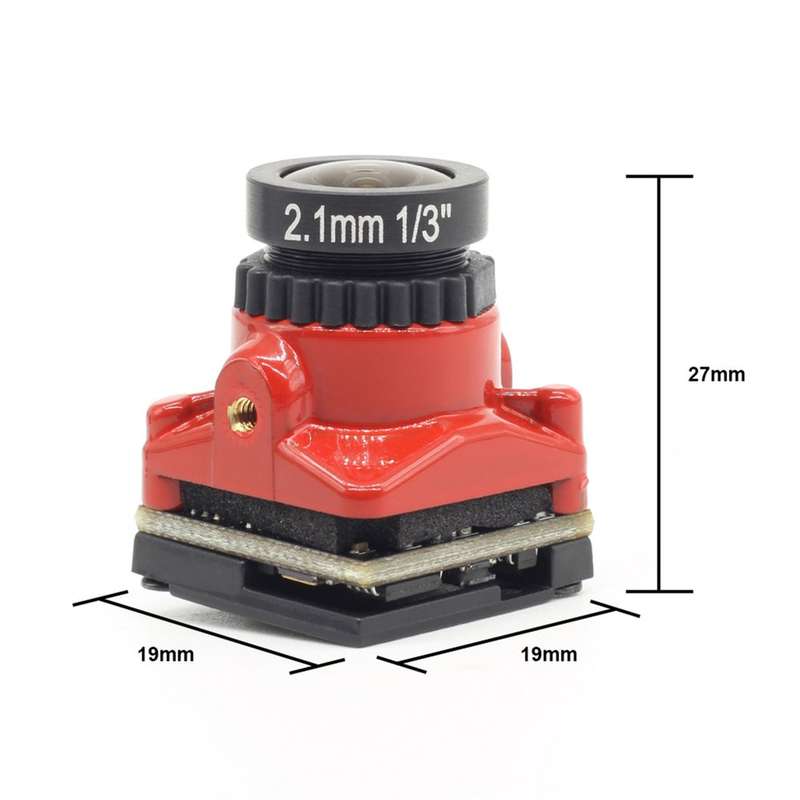

Dimension: 19x19x27mm

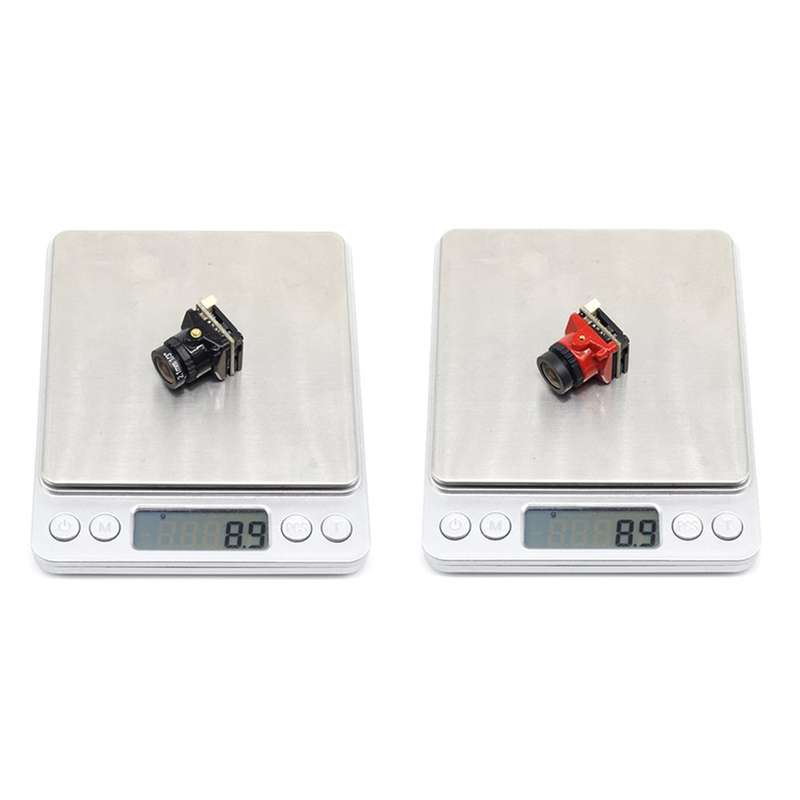

Weight: 8.9g ? Specifications of EWRF e7087U: Frequency: 5.8G Channel: 48CH Transmitting Power: 25mW/100mW/200mW/OFF(Pitmode) Power Supply: DC7-24V Supply Current: 110mA(25mW) / 160mA(100mW) / 210mA(200mW) Weight: 2.2g(Including antenna weight 0.8g) Size: Design for RunCam?

Frequency:
Band CH1 CH2 CH3 CH4 CH?5 CH6 CH7 CH8
A 5865 5845 5825 5805 5785 5765 5745 5725
b 5733 5752 5771 5790 5809 5828 5847 5866
c 5705 5685 5665 5645 5885 5905 5925 5945
d 5740 5760 5780 5800 5820 5840 5860 5880
E 5658 5695 5732 5769 5806 5843 5880 5917
F 5362 5399 5436 5473 5510 5547 5584 5621

Features of?EWRF e7087U:
- Adjustable 4 modes: 25mW/100mW/200mW/OFF? - Betaflight/Cleanflight OSD configuring parameter - Support SBUS configuring parameter - Clean powerup and channel switching without interference to others - Miniature and light weight design

Note:?
- Make sure that there is enough space for airflow when installing the module? ?on the drone in case the overheating protection starts to reduce the power even to shut down at the worst. - Please install the antenna before powering up for a longer use life.

English Manual for?EWRF e7087U,?

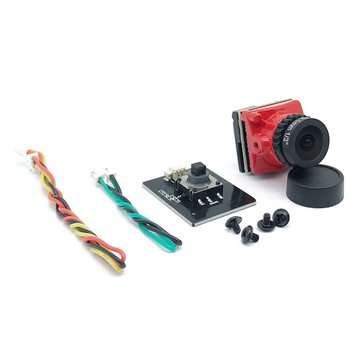

Package Included:
1x?EWRF e7087U VTX
1x 1200TVL CMOS Camera ?
