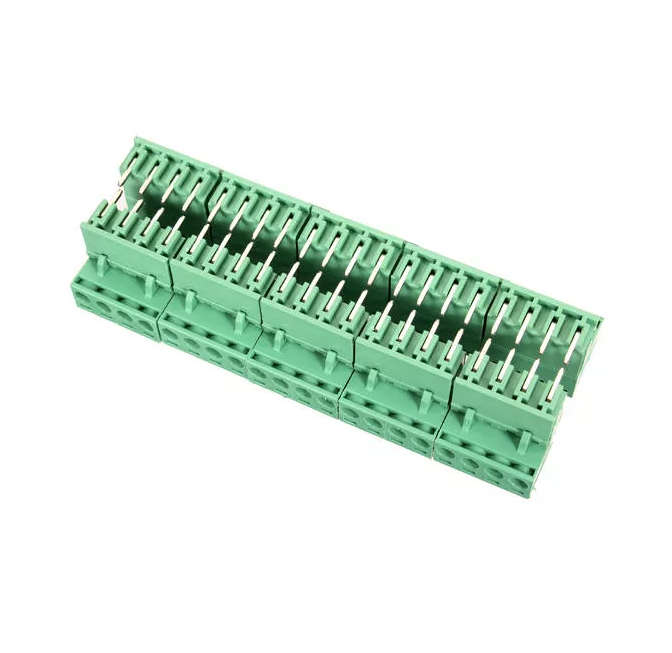

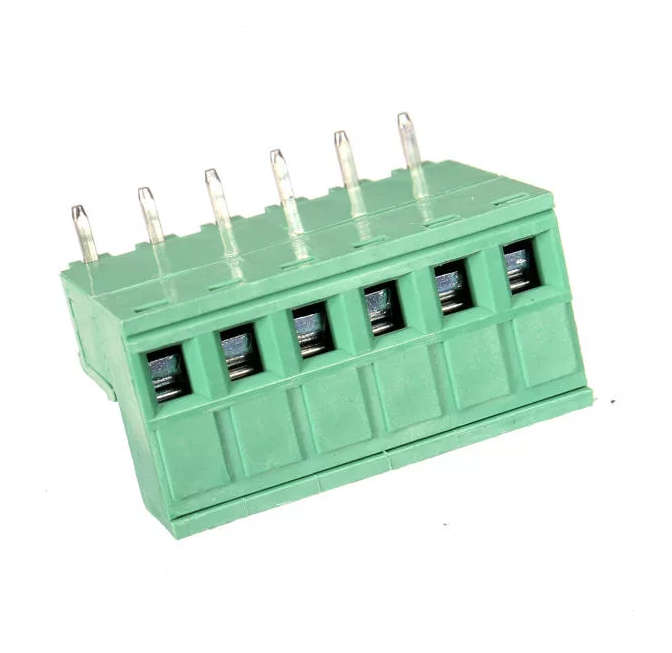

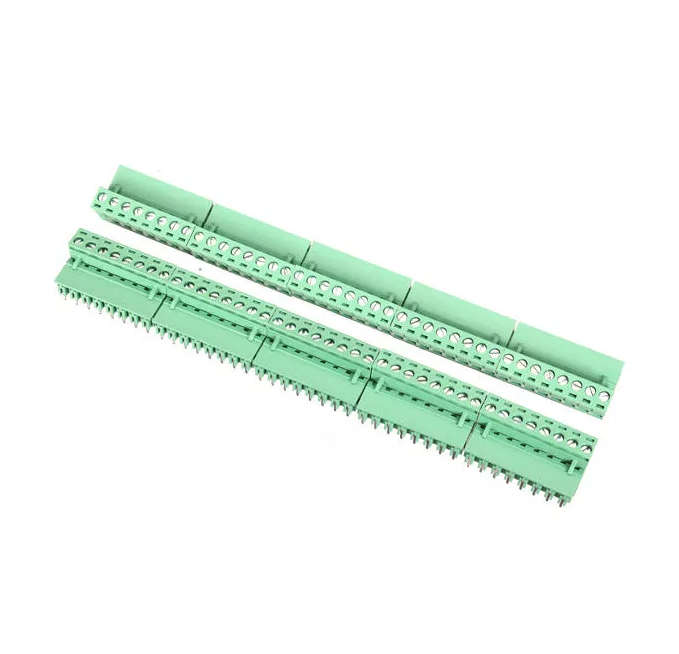

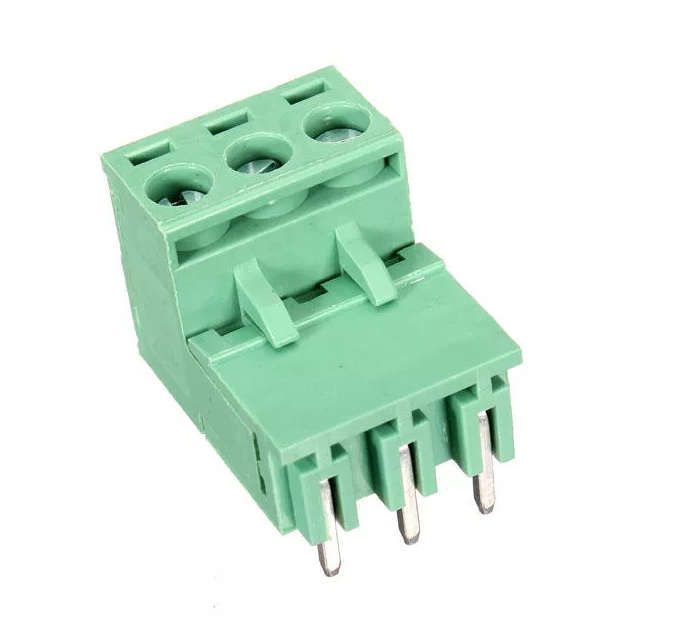

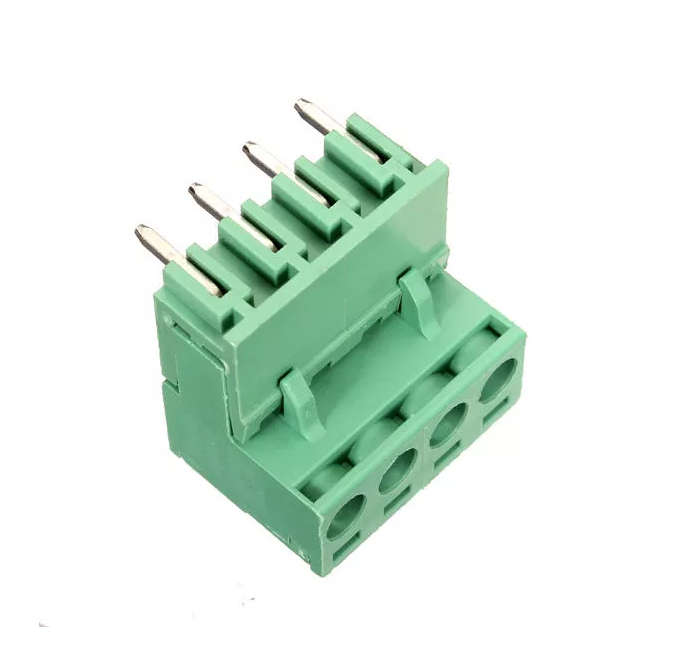

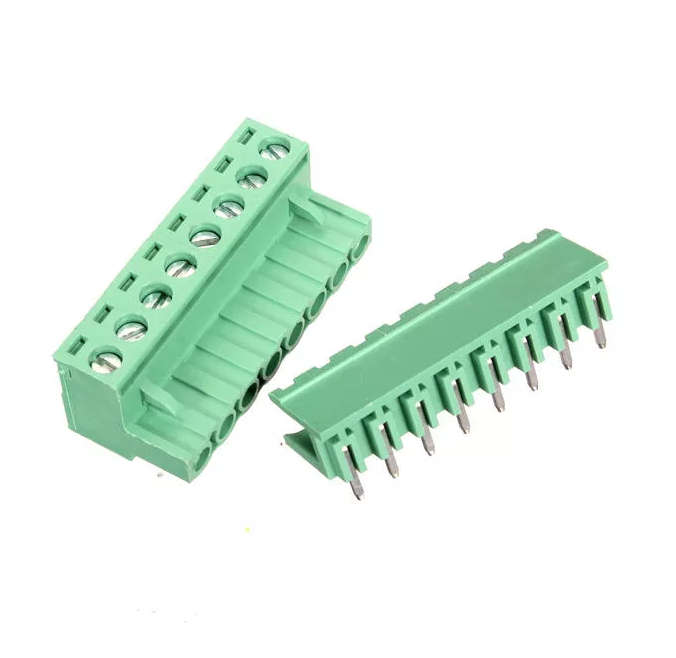

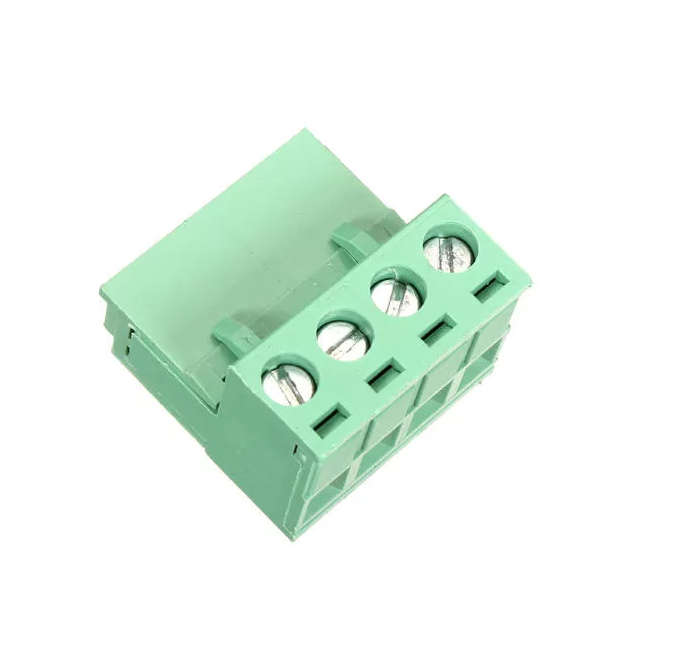

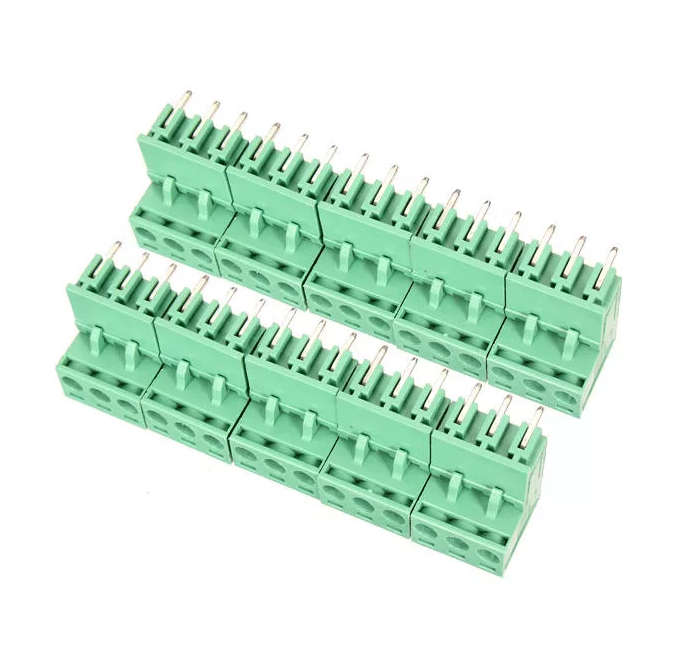

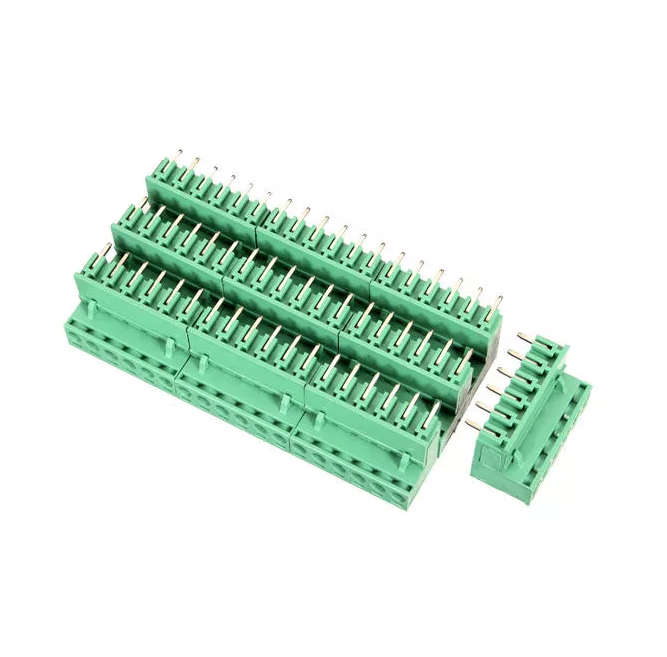

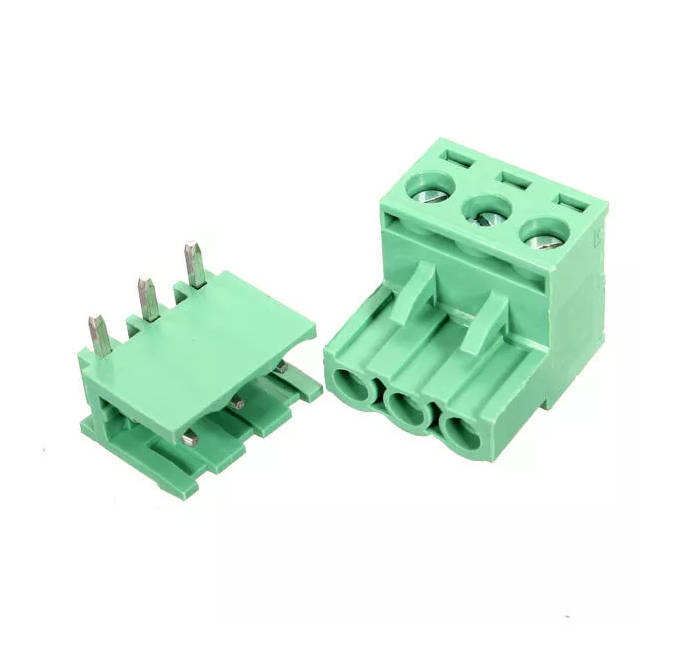

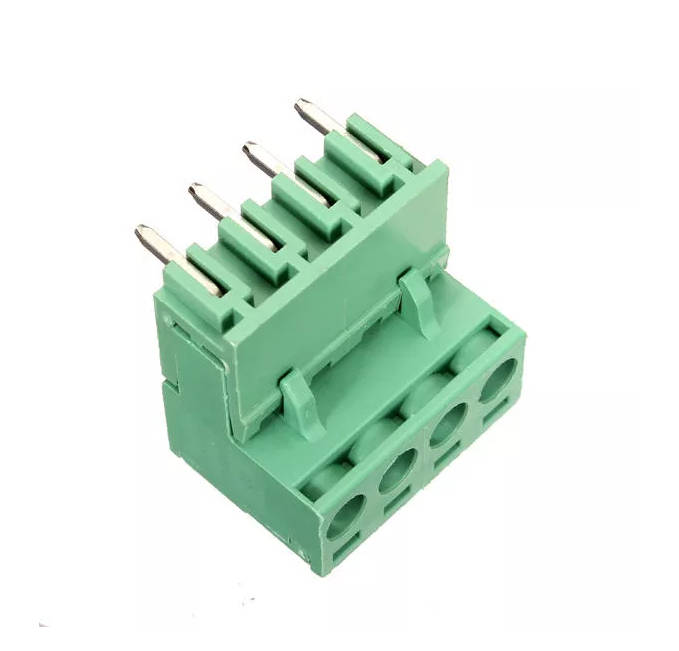

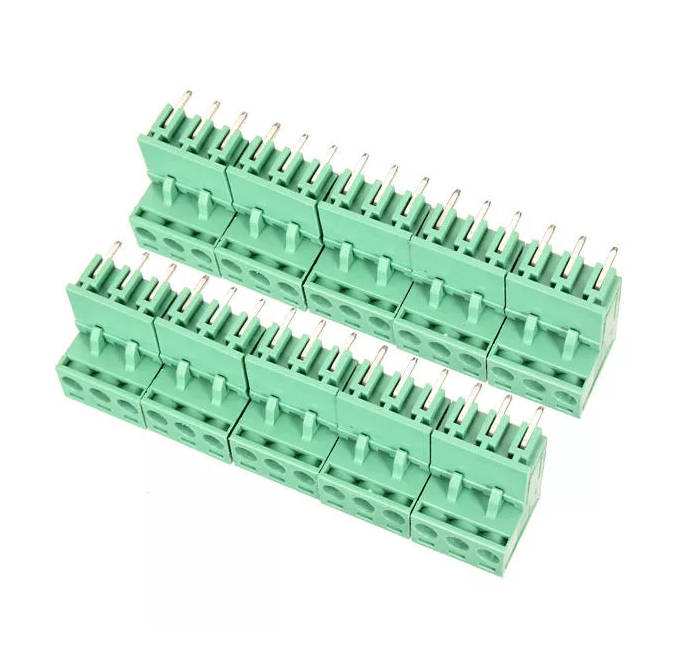

Excellway 5.08mm Pluggable Terminal Blocks (Various Sizes)
New
Shipping
Standard courier shipping from R60
R60 Standard shipping applies to orders under R100, in most areas in South Africa. R30 Standard shipping applies to orders over R100. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
South Africa
Customer ratings:
Product code
1289420
Bob Shop ID
594514733
Description
Need a connector for your PCB that you can easily connect and disconnect wiring, these connectors checks all the boxes. Please select the appropriate amount of connections
Specifications

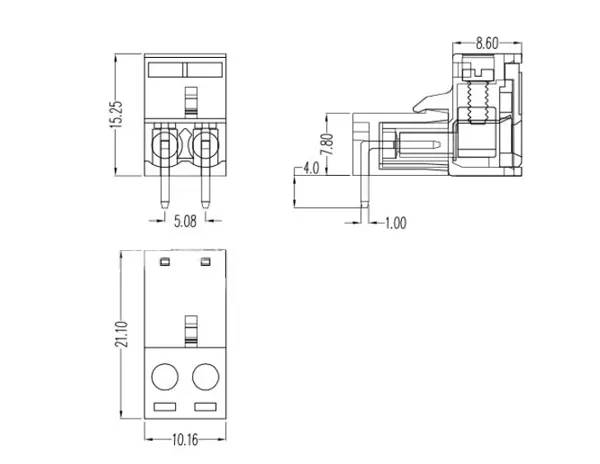

Drawing:
| ELECTRICAL | |
| Rated Voltage | 300V |
| Rated Current | 15A |
| Wire Range | 28-12AWG |
| Withstanding Voltage | AC4000V |
| Certification | UL |
| MECHANICAL | |
| Temp range | -40-- +105 |
| Torque | 0.4Nm (3.5Lb-In.) |
| Strip Length | 7mm |
| Max Soldering | +250for 5s. |
| MATERIAL | |
| Pitch | 5.08mm |
| Poles | 2P, 3P, 4P, 6P, 8P |
| Pin Header | Brass,Tin Plated |
| Housing | PA66.UL94V-0 |
| Screw | M2.5, Steel Zinc Plated |
| Contact material | Phosphor bronze |
