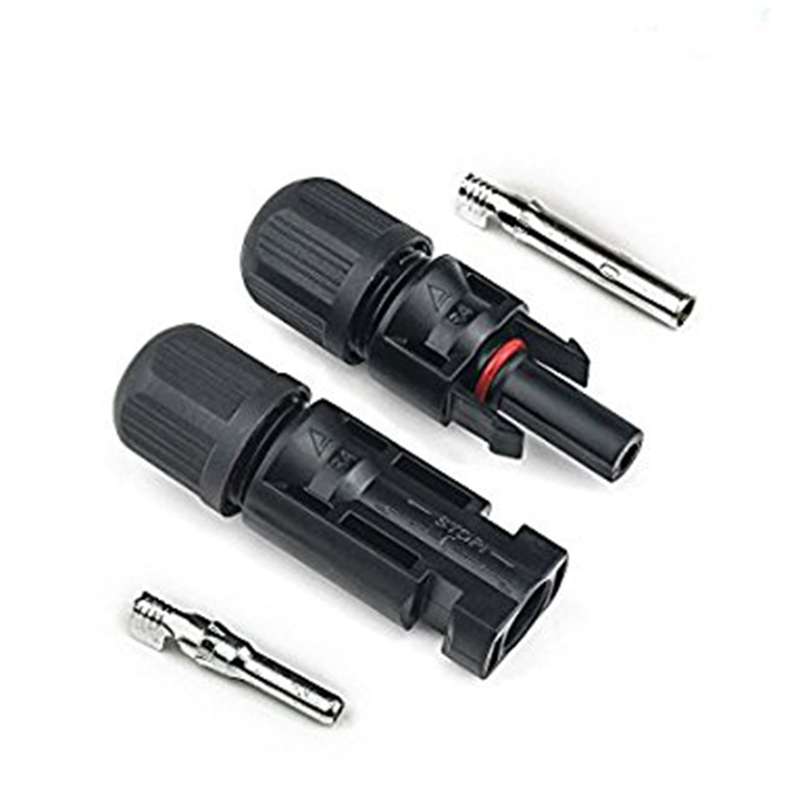

Excellway 5 Pairs PV Solar Panel Cable MC4 Connectors Male & Female Waterproof IP67 for Photovolta
New
Indicative market price: R134.42
R81.65
39% OFF
Closed
25 Jun 19 01:21
Shipping
Standard courier shipping from R60
R60 Standard shipping applies to orders under R100, in most areas in South Africa. R30 Standard shipping applies to orders over R100. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
1438012[ICSD]
Bob Shop ID
419816351
Description:
* Cable Connectors are made with highest quality materials. You can feel that they are heavier and sturdier than other similar products in the market. This is to ensure the long term durability.
* Solar photovoltaic module cable connector, the connector USES inner drum spring, male and female connector and component junction box connector with the use of PPO material, the connector has anti-aging, uv resistance, meet the requirements of the power station in bad conditions. Specification:
| Name | MC4 solar connector |
| Rated current | (4mm2-25A, 6mm2-30A) |
| Rated voltage | 1000VDC |
| Test voltage | 6000v (50Hz) |
| Plug connector | ≤5mΩ contact resistance |
| Connector conductor material | Tinned copper |
| Connector insulation material | PPO |
| Protection level | IP67 |
| Flame retardant grade | UL94-V0 |
| Safe type | II |
| Insertion force | ≤50n |
| Take force | ≥50n |
| Operating temperature range | -40°C~ +90°C |
| Suitable cable | 2.5mm2, 4mm2, 6mm2 (awg14 / 12 / 10) |
Feature:
* 5 pairs of MC4 Male/Female Solar Panel Cable Connectors.Rated Current: 30A, Maximum Voltage: 1000VDC

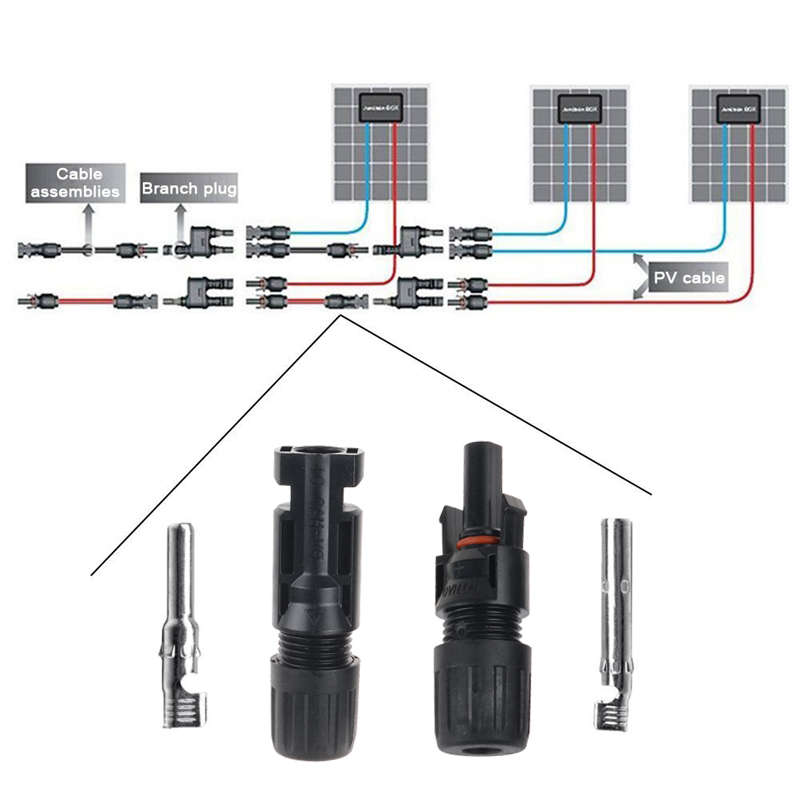

* MC4 connector is specifically designed for connecting photovoltaic solar systems with high mechanical requirements and extreme weather conditions. For permanent installations.
Package Included:

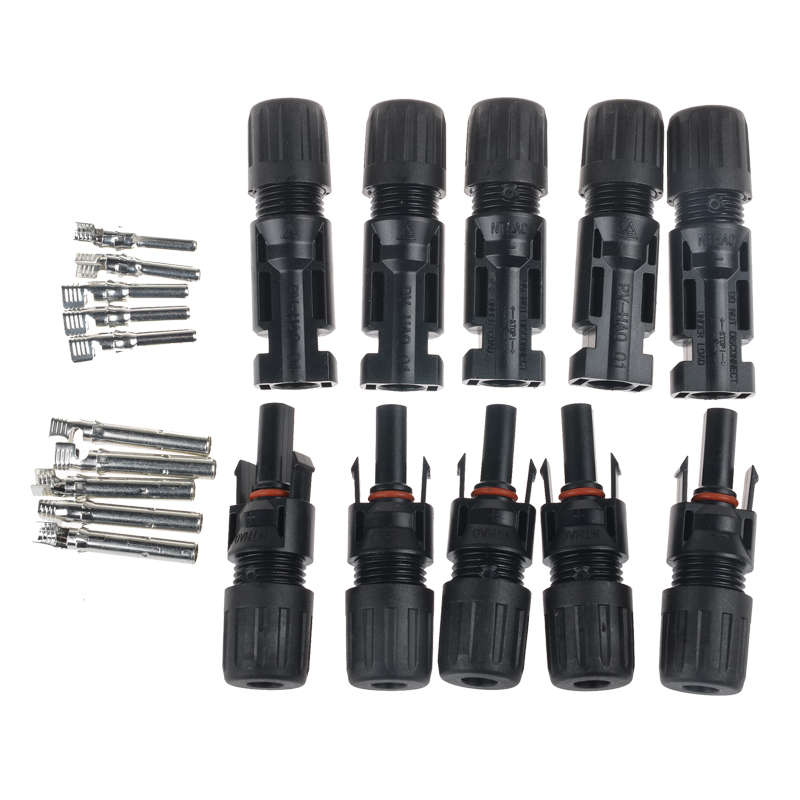

5 Pairs of MC4 solar panel connectors (5 male ,5female connectors , 10 Terminal cores )
