Product details

Condition
New
Location
International
Bob Shop ID
632410639

SELECTED OPTION:
TYPE: 3PIN

Description:

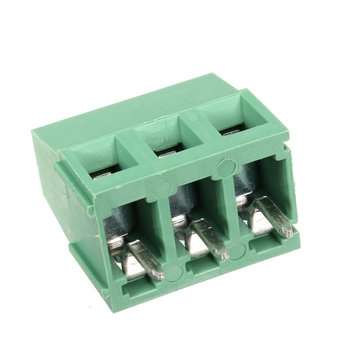

Excellway DR22 10pcs 5.0mm 2/3 Pin PCB Screw Terminal Block Connectors Green

Specifications:
Brand:Excellway
Model:DR22
Product Name: PCB Screw Terminal Block
Material: Plastic
Rated Value: 300V, 15A
Poles: 2pin, 3pin
Quantity: 10
Color: Green

Parameter:
ELECTRICAL
Rated Voltage 300V
Rated Current 10A
Wire Range 24-12AWG
Withstanding Voltage AC2000V/ 1min
Certification UL
MECHANICAL
Temp range -40a-- +105a
Torque 0.4Nm (3.5Lb-In.)
Strip Length 7mm
Max Soldering +250afor 5s.
MATERIAL
Pitch 5.0mm
Poles 2P, 3P
Pin Header Brass,Tin Plated
Housing PA66.UL94V-0
Screw M2.5, Steel Zinc Plated
Contact material Phosphor bronze

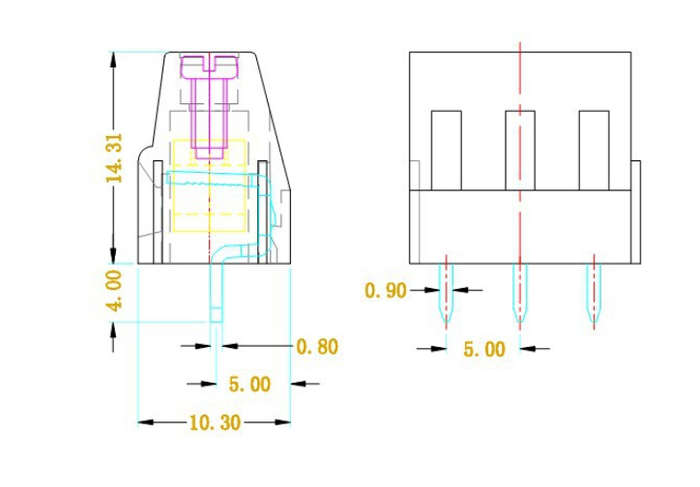

Size Drawing:


Package included:
10X 2 Pin/ 3 Pin PCB Screw Terminal Blocks




, , , , , , ,
