Excellway DR22 10pcs 5.0mm 2/3 Pin PCB Screw Terminal Block Connectors (TYPE: 3PIN)

Excellway DR22 10pcs 5.0mm 2/3 Pin PCB Screw Terminal Block Connectors (TYPE: 3PIN)

20 available / new
R490.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643379210

SELECTED OPTION:
TYPE: 3PIN

Description:

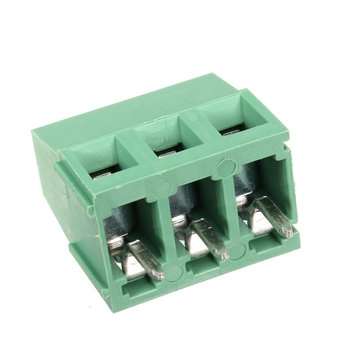

Excellway DR22 10pcs 5.0mm 2/3 Pin PCB Screw Terminal Block Connectors Green

Specifications:
Brand:Excellway
Model:DR22
Product Name: PCB Screw Terminal Block
Material: Plastic
Rated Value: 300V, 15A
Poles: 2pin, 3pin
Quantity: 10
Color: Green

Parameter:
ELECTRICAL
Rated Voltage 300V
Rated Current 10A
Wire Range 24-12AWG
Withstanding Voltage AC2000V/ 1min
Certification UL
MECHANICAL
Temp range -40a-- +105a
Torque 0.4Nm (3.5Lb-In.)
Strip Length 7mm
Max Soldering +250afor 5s.
MATERIAL
Pitch 5.0mm
Poles 2P, 3P
Pin Header Brass,Tin Plated
Housing PA66.UL94V-0
Screw M2.5, Steel Zinc Plated
Contact material Phosphor bronze

Size Drawing:


Package included:
10X 2 Pin/ 3 Pin PCB Screw Terminal Blocks




, , , , , , ,
