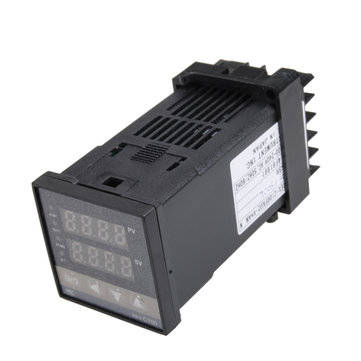

Excellway REX-C100 110-240V 1300 Degree Digital PID Temperature Controller Kit with 400 Degree Pro

Features :

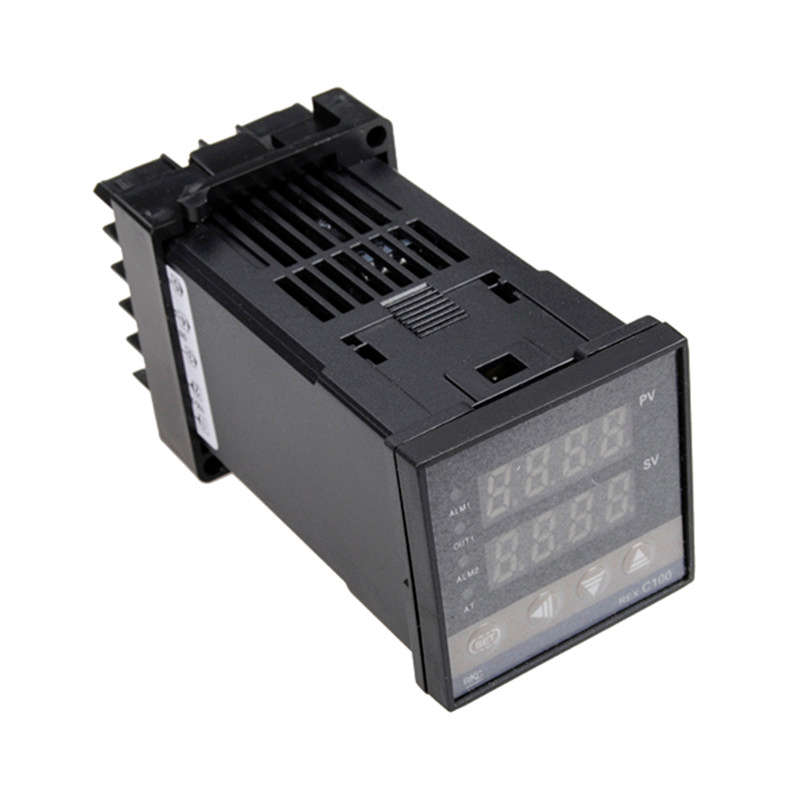

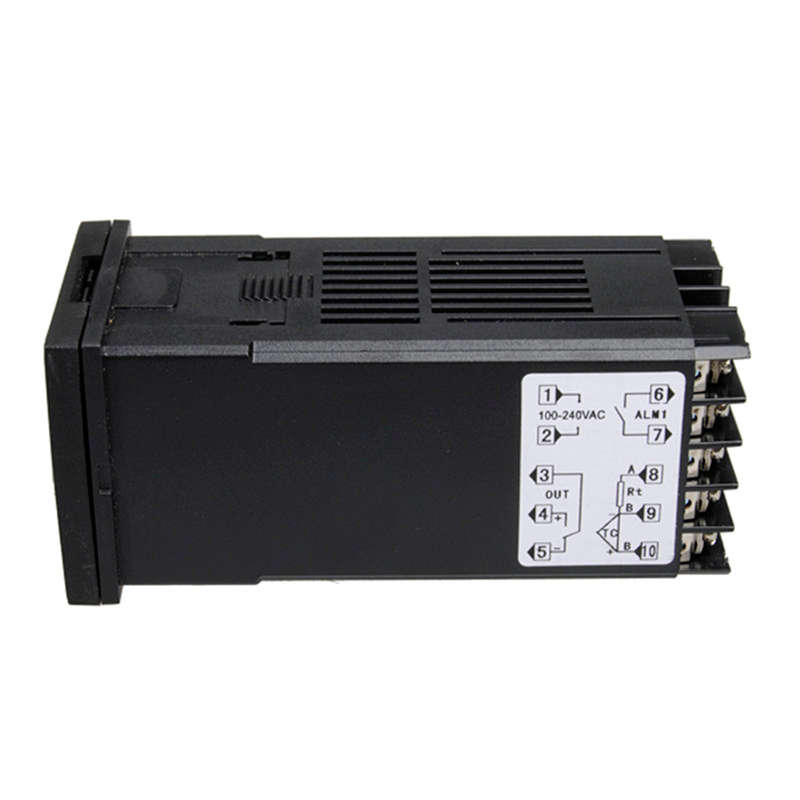

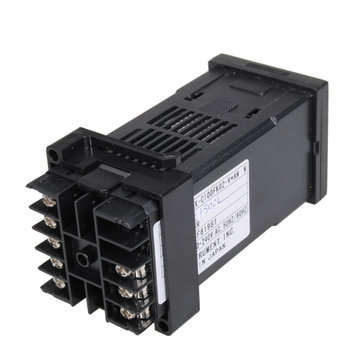

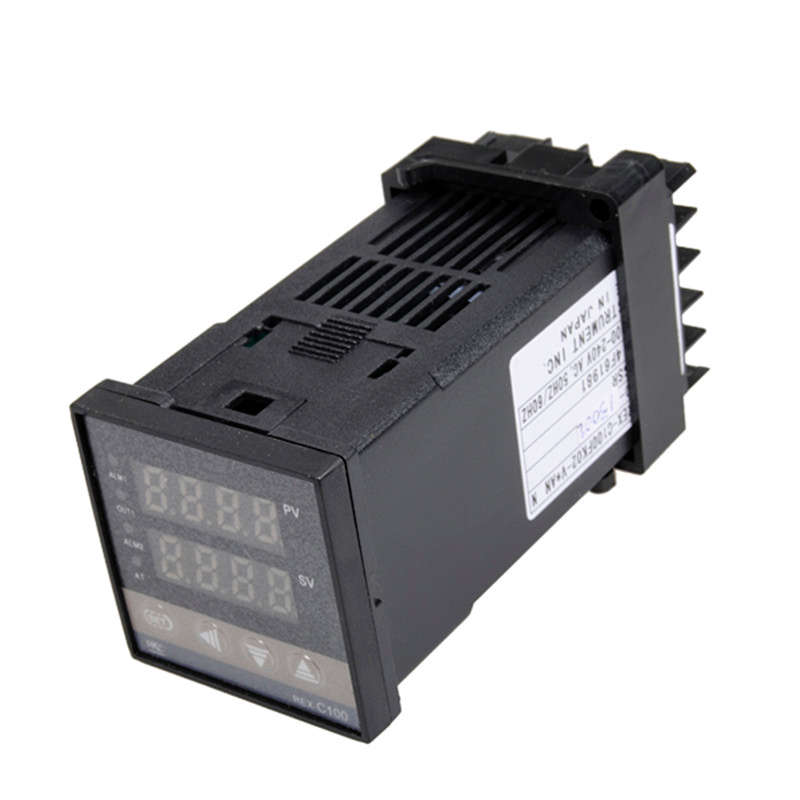

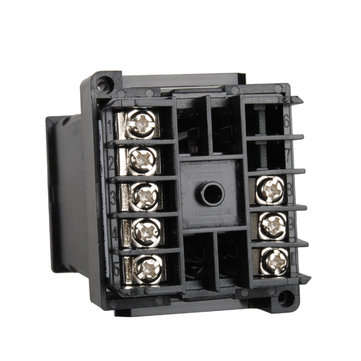

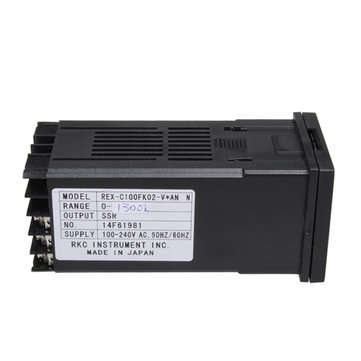

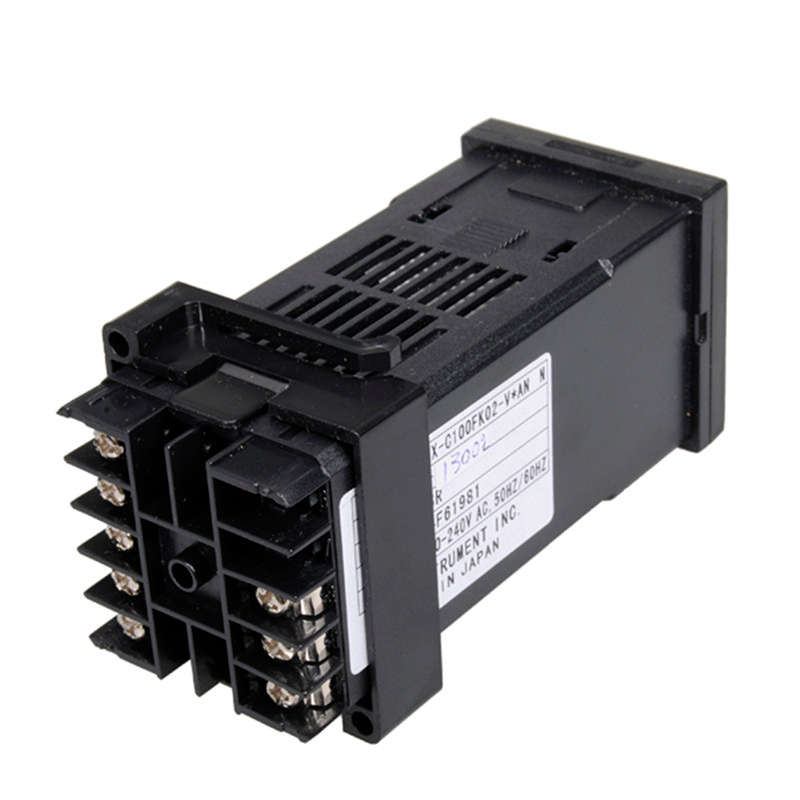

REX-C100 Temperature Controller

Measuring accuracy : ±0.5%FS
Cold-end compensation tolerance : ±2a?? can be modified by software in 0~50a??
Resolution : 14 bit
Sampling cycle : 0.5 Sec
Power : AC 110-240V 50/60HZ

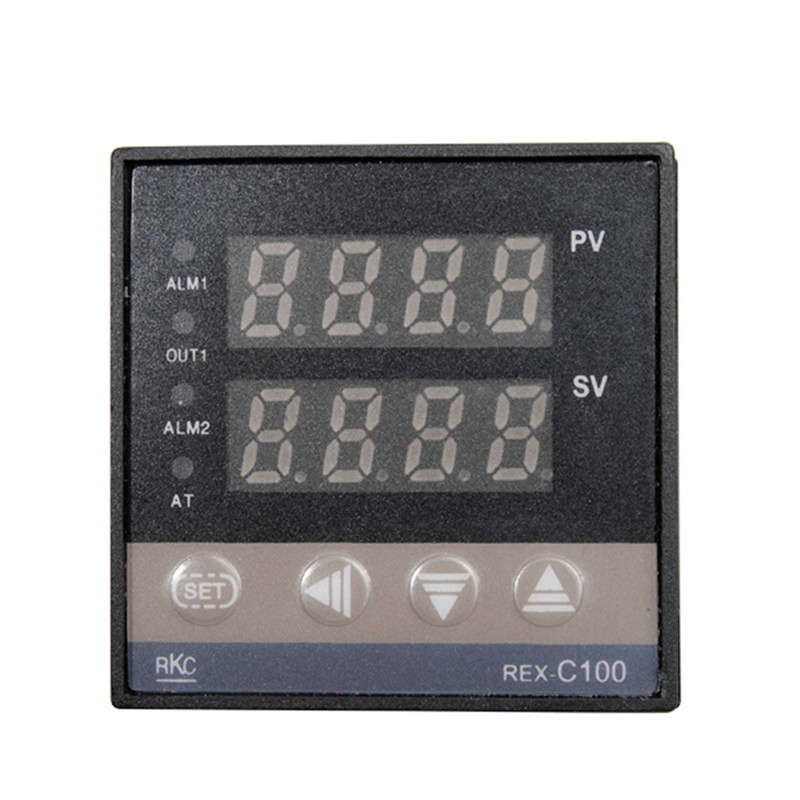

Process value (PV), Setting value (SV)
Output, alarm and self-tuning can be indicated by : LED
PIN control (including ON/OFF, step-type PID and continuous PID)
Self-tuning control
Relay output : contact capacity 250V AC 3A (resistive load)
Alarm function output : 2 way
Proportional band (P) : 0~full range (ON/OFF control when set to 0)
Detective temperature range : 0 to 1300a??
Insulation resistance : >50M ohm(500V DC)
Insulation resistance : 1500V AC/min
Insulation resistance : Power Consumption < 10 VA
Service environment : 0~50a??
Environment with no corrosive gas 30~85% RH

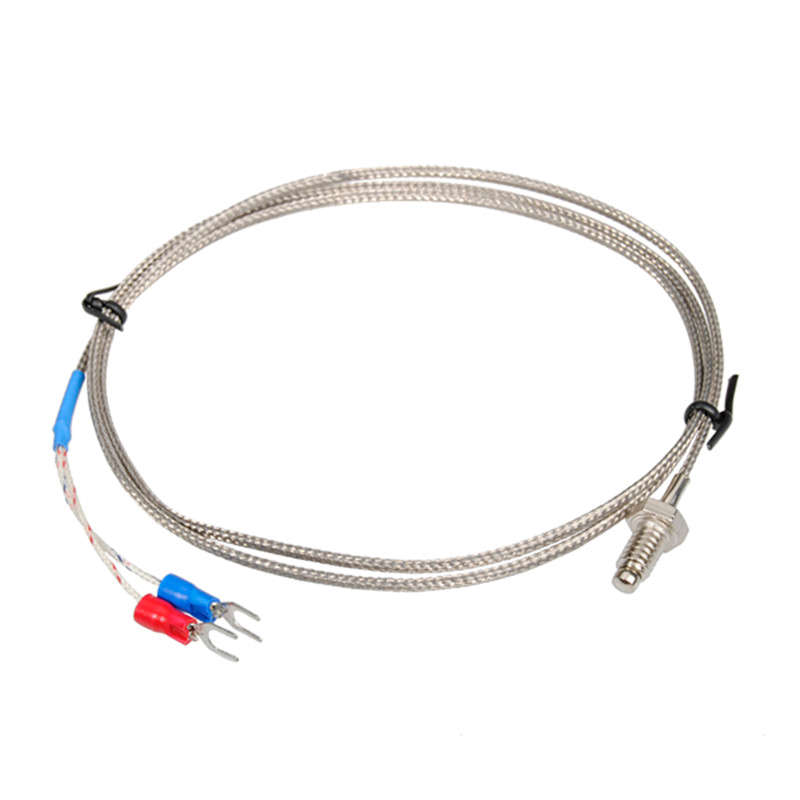

K Thermocouple Probe Cable

Length : 1M
Sensor diameter : 4.5mm
Temperature rang : 0 to 400a??
Internal Insulation : Fiberglass
External Shielding : Insulated Shielding

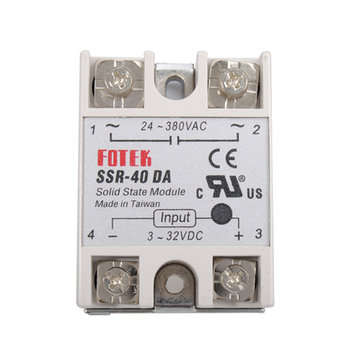

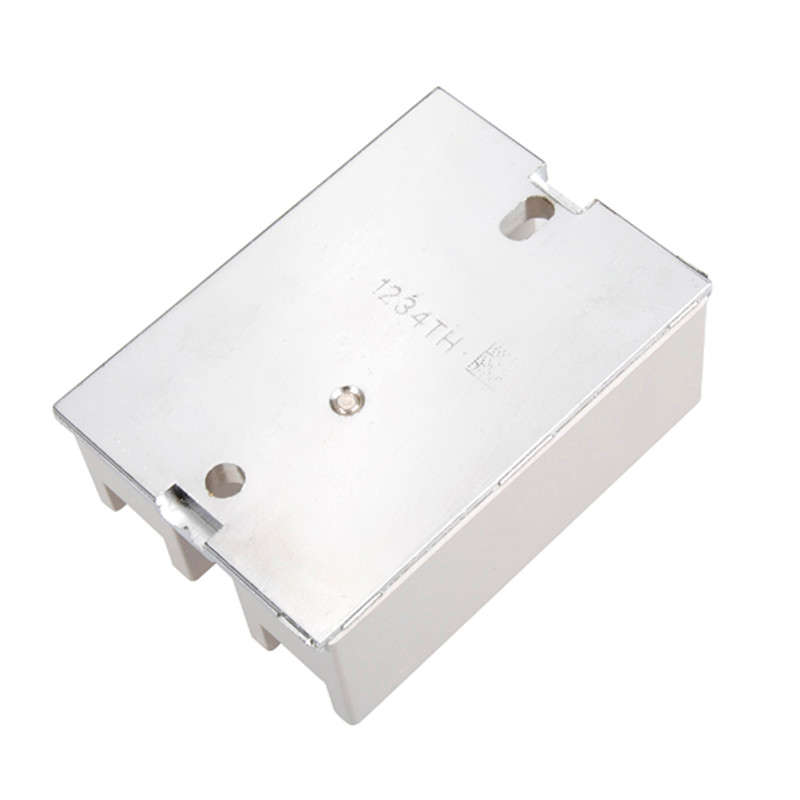

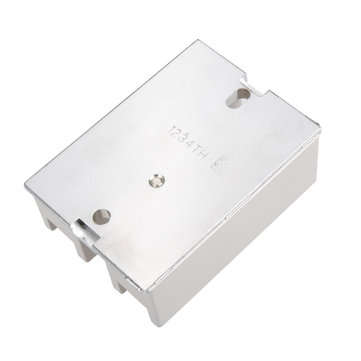

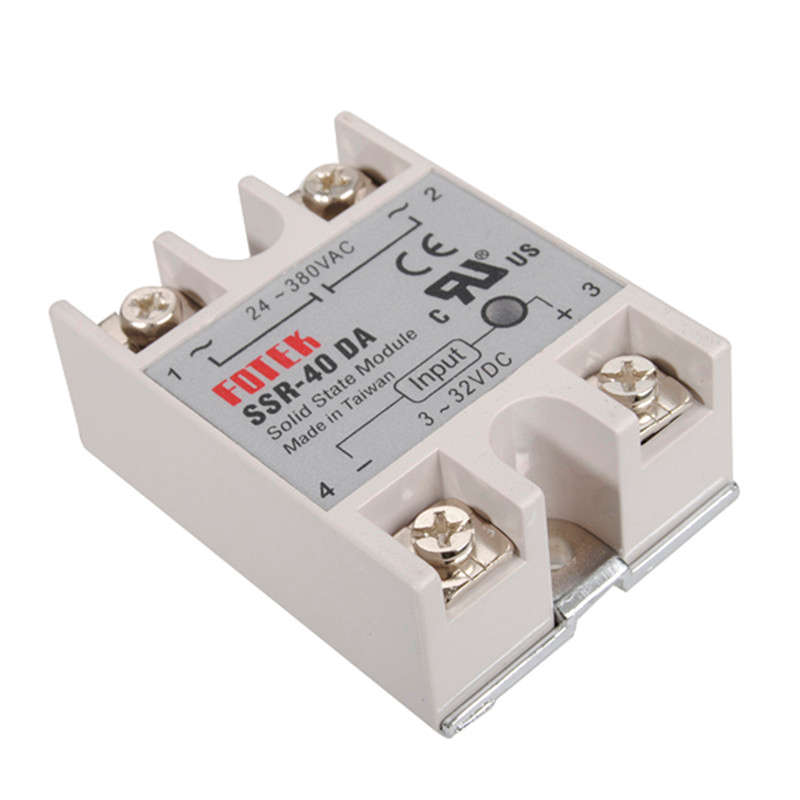

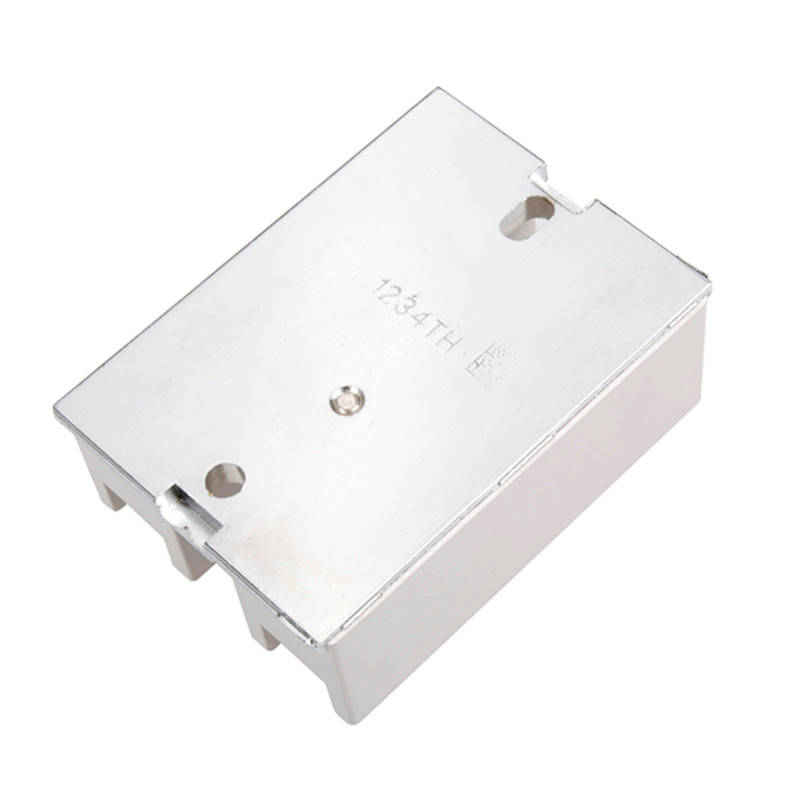

Max.40A SSR

Output Voltage Range : Standard Type
Output Current : 40A
Input Voltage : DC 3-32V
Output Voltage : 24-380V AC

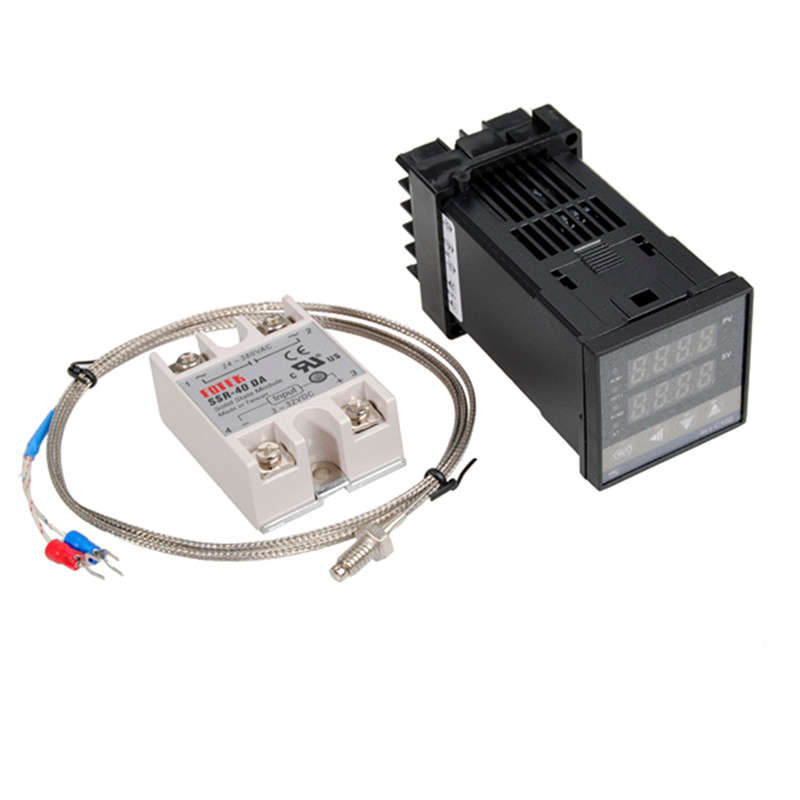

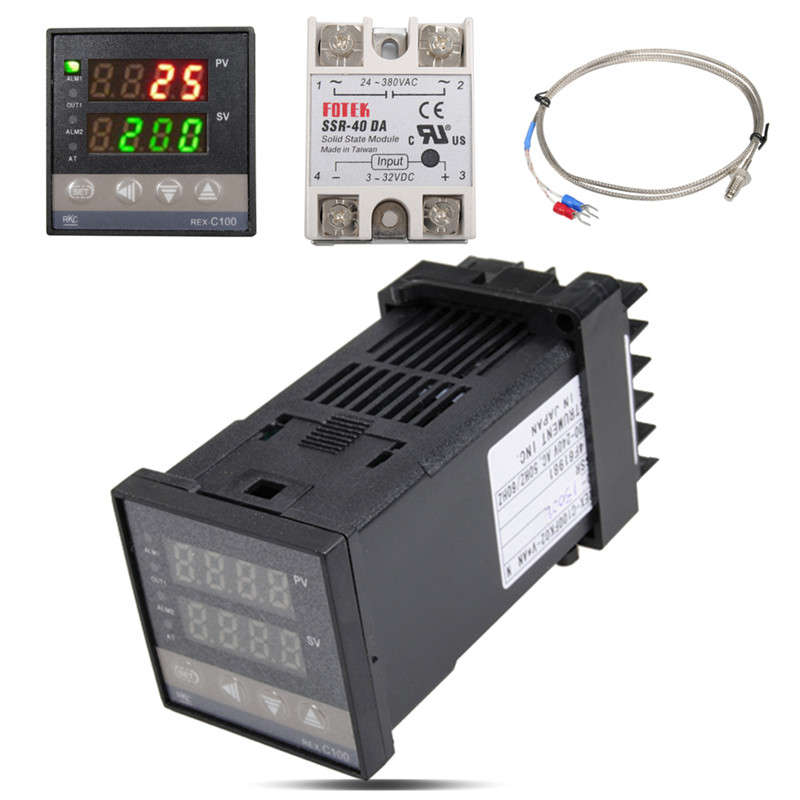

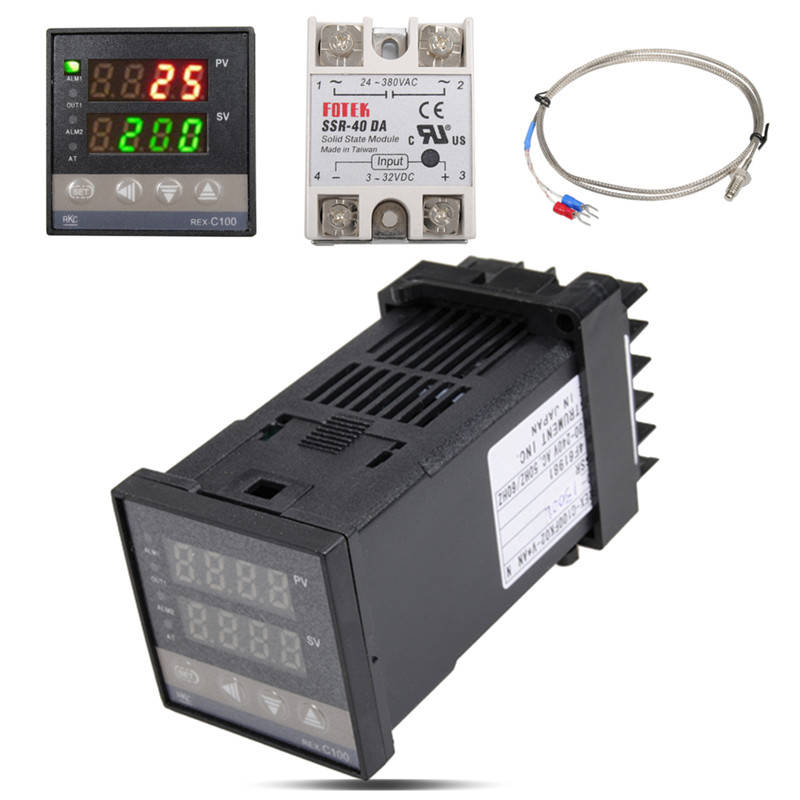

Package included :

1 x REX-C100 PID Temperature Controller
1 x K Type Probe Sensor
1 x Max.40A SSR

More products :
Now we have created a that is 220V, 0 ~ 400a?? .
and? taht is 110-240V, 0 ~ 400a??.

Details pictures :
