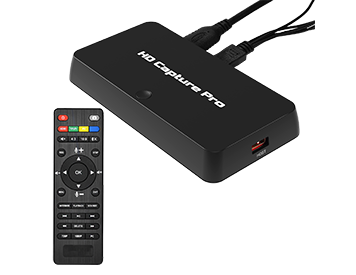

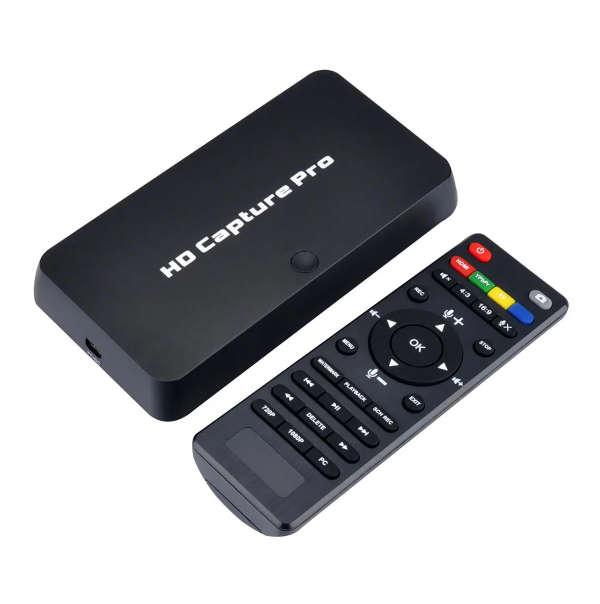

EZCAP 295 HD 1080P Video Capture Card

NB: Due to "device-unrecognised error" on windows, this is not compatible with Windows.

PRODUCT DESCRIPTION

• Capture HD video to a USB host directly, up to 1080p resolution.
• Playback recorded video files directly.
• All-in-One: supports multiple video input - HDMI, Component Video, and Composite Video.
• Record your voice with video together by Microphone input. Also, adjust microphone volume.
• With 1080P60 HDMI pass-through.
• With remote control, to control PVR settings and functions: Schedule recording, Image snapshot, Recording bitrate, Recording resolution, Split / Un-Split recording, Watermark ...
• Connect to a PC to work as a USB video capture card with OBS.

Wonderful Personal Video Recorder

Record your personal video at 1080p resolution, save in USB flash drive or USB hard disk, playback recorded video directly, no computer required!

Rich Video Input and Audio Connectors

ezcap295 HD PVR includes rich video and audio connectors: HDMI, Component video and Composite video input video sources. MIC IN allows you mix game commentary with game video together. And connect LINE OUT to earphone or speaker system.

Includes lots of unique functions

With a remote control, users can get lots of unique functions. Multi-languages setting, Recording bitrate, and Split / un-split setting, Time Watermark, Schedule Recording, Recording, and Pass-through Resolution, Image Snapshot, Microphone mute and adjust, Delete recorded file, etc ...

PRODUCT SPECIFICATIONS

• Host Interface: USB 2.0
• Video Input: HDMI, Component Video, Composite Video
• Audio Input: HDMI, 3.5mm Microphone In, L/R Line In
• Video Output: HDMI
• Audio Output: HDMI, 3.5mm Line Out
• User Interface: REC button, LED indicator, Infrared Receiver
• Storage Media: USB Flash drive, USB Portable Hard Disk, 2T max capacity, FAT32 and NTFS
• Power Supply: USB-A port, DC 5V2A
• Codec: H.264
• Resolution:
• Input / Pass-through: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p (60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)
• Capture: 1280 x 720p (60p), 1366*768 (60p), 1920 x 1080 (30p)
• Record Info: .mp4 aac stereo, max 16Mbps@1080p30fps, 2G per file with RTC, about 140MB per minute
• Package Contents:
  1 x EZCAP 295 Video Capture Box
  1 x Remote Controller
  1 x Driver CD
  1 x HDMI Cable
  1 x Charging Cable
  1 x User Manual
• Dimensions / Weight: 142(L) × 73(W) × 26(H) mm, 110g
