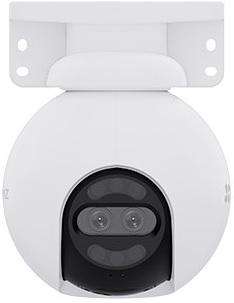

EZVIZ 4K WIFI PT CAM - H80X
H80X Dual
4K Pan & Tilt Wi-Fi Camera
Specifications
Model: CS-H80x-R100-8G82WKFL
Camera
Image Sensor: 1/2.7 + 1/2.9 Progressive Scan CMOS
Shutter Speed: Self-Adaptive Shutter
Lens: 4mm @ F1.0, Viewing Angle: 46° (Vertical), 87° (Horizontal)
103° (Diagonal) (1080p) 4mm @ F1.6, viewing angle: 46° (Vertical), 87° (Horizontal), 103° (Diagonal) (4K)
PT Angle: Pan: 340°, Tilt: 70°
Minimum Illumination: 0.01 Lux @ (F1.0, AGC ON), 0 Lux with IR (*Data is obtained from EZVIZ Laboratories)
Lens Mount: M12
Day / Night Switch: IR-Cut Filter with Auto Switch
DNR: 3D DNR
WDR: Digital WDR
BLC: Supports
Black & White Night: 30m / 98ft
Video & Audio
Max Resolution: 3840 × 2160
Frame Rate: Self-Adaptive during Network Transmission
Video Compression: H.265 / H.264
H.265 Type: Main Profile
Video Bit Rate: Ultra HD; Quad HD; Full HD; HD. Adaptive bit rate.
Audio Bit Rate: Self-Adaptive
Network
Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n
Frequency Range: 2.4 GHz - 2.4835 GHz
Channel Bandwidth: Supports 20MHz
Security: 64 / 128 - Bit WEP, WPA / WPA2, WPA-PSK / WPA2 - PSK
Transmission Rate: 11b : 11 Mbps, 11g : 54 Mbps, 11n : 150 Mbps
Wi-Fi Pairing: AP Paring
Protocol: EZVIZ Cloud Proprietary Protocol
Interface Protocol: EZVIZ Cloud Proprietary Protocol
Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)
Functions
Smart Alarm: AI-Powered Human Shape Detection AI-Powered Vehicle Shape Detection
Customized Alert Area: Supports
Two-Way Talk: Supports
Auto Tracking: Supports
General Function: Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
Storage
Local Storage: Supports microSD Card (Up to 512 GB)
Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription Required)
General
Operating Conditions: 30ºC - 50ºC Humidity 95% Or Less (Non-Condensing)
IP Grade: IP65
Power Supply: DC 12V/1A
Power Consumption: MAX. 12W
Dimensions: 170 × 112 × 154 mm (6.69 × 4.41 × 6.06 inch)
Packaging Dimensions: 205 × 176 × 194 mm (8.07 × 6.93 × 7.64 inch)
Weight Product: 630 g (22.22 oz) Weight With Package: 1035 g (36.5 oz)
In the box
H80x Dual 4K Camera
Drill Template
Waterproof Kit
Screw Kit
Power Adapter
Regulatory Information × 2
Quick Start Guide
Certifications
Certifications: CE / UL / WEEE / RoHS / REACH
